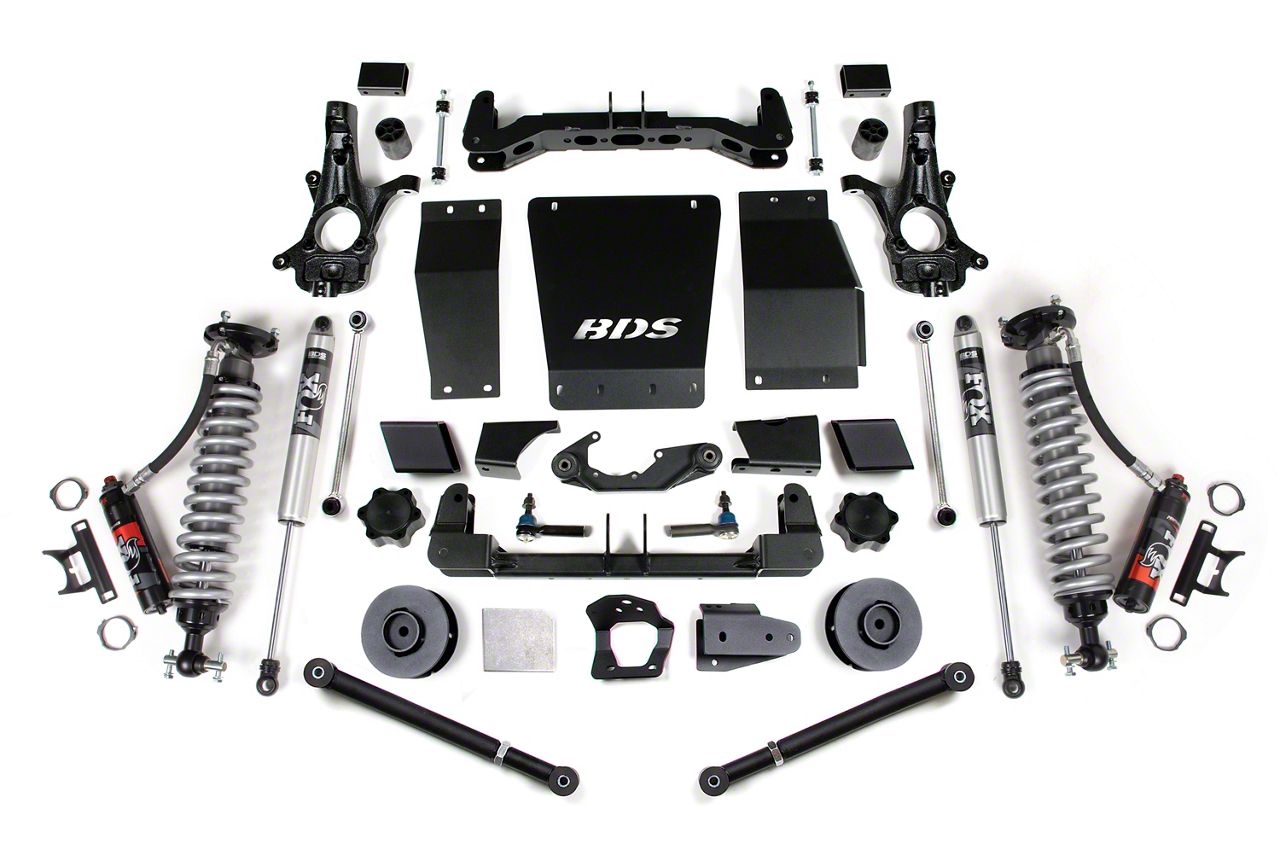

BDS 4-Inch Suspension Lift Kit with FOX 2.5 Performance Elite Coil-Overs and FOX 2.0 Performance Shocks (15-19 4WD Tahoe w/ Stock Cast Aluminum or Stamped Steel Control Arms, w/o AutoRide & MagneRide)Find parts that fit my vehicle

Take your 2015-2019 Chevy Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
Features & Benefits
Fox 2.5 Shocks designed specifically for increased travel and the abilty to soak up the roughest terrain.
The DSC (dual speed compression) adjuster adds remarkable versatilty and precise tuning with a simple twist of one or both knobs.
High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
HD skid plate system improved offroad protection Multipoint differential relocation brackets to secure the front axle and improve CV angles
FOX performance series IFP gas rear shocks to improved ride and offroad performance
Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels
(Trimming may be required)
32 x 12.5 with 17 x 9 and 4.5 in. Backspace
33 x 12.5 with 18 x 9 and 5 in. Backspace
33 x 12.5 with 20 x 9 and 5.75 in. Backspace
Factory Control Arm Type
*IMPORTANT*: GM is producing several knuckle/control arm configurations in 2014-2018 models trucks. Cast Steel control arm equipped models will require the "Cast Steel Control Arm" kit. Stamped Steel and Aluminum control arm equipped models will require the "Aluminum Control Arm" kit. Be sure to verify which factory control arms your truck has before ordering by referencing the help images in each tab below.
