Zone Offroad 5-Inch Suspension Lift Kit with Fox Shocks (20-24 Sierra 2500 HD w/ Top Mounted Overload Springs)

Item HG8859
Zone Offroad 5-Inch Suspension Lift Kit with Fox Shocks (20-24 Sierra 2500 HD w/ Top Mounted Overload Springs)
Verify parts fit and get product recommendations.
Sierra 2500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
Our Price

$2,071.50 (kit)

FREE Shipping Market Price $2,071.50 Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Suspension Lift Kit
      • Five Inches
      • Fox Shocks
      • Allows 37-Inch Tires
      • Quarter-Inch Thick Steel Crossmembers
      • Differential Skid Plates
      • CNC-Machined Ductile Iron Steering Knuckles
      • Front Skidplate
      • Torsion Bar Relocation Brackets
      • Rear Lift Blocks
      • U-Bolts
      • Two-Piece Rear Driveshaft Requires Carrier Bearing Drop Kit
      • Stock 17-18-Inch Wheels Cannot Be Reinstalled
      • Stock 20-Inch Wheels Can Be Reinstalled
      • Difficult Installation
      • Limited Lifetime Warranty
      • Fits 2020-2024 Sierra 2500 HD Models with Top Mounted Overload Springs


      Comprehensive Kit. This Zone Offroad 5-Inch Suspension Lift Kit with Fox Shocks offers a thorough lift kit for your Sierra 2500 HD. With reliable parts, you'll instantly see a smoother ride, no matter the terrain you're trying to traverse.

      Crossmembers. The real drawing power of this lift kit comes with the crossmembers. Constructed from quarter-inch thick American steel, these crossmembers, paired with skid plates, provide ground clearance and are the heart of a strong subframe.

      Steering Knuckles. A pair of specially-designed, CNC-machined, ductile iron steering knuckles maintain proper steering geometry at the taller height.

      Shocks. Four Fox shocks offer improved damper performance.

      The Rest of the Kit. Differential relocation brackets, torsion bar crossmember drop brackets, sway bar links, bump stop extensions, stainless steel brake lines, a pair of 4.50-inch rear lift blocks, u-bolts, rear brake and ABS line brackets and all installation hardware make for a complete kit.

      Installation. This is a difficult installation that should take all of a day. Professional installation is recommended if you are uncomfortable.

      Warranty. There is a limited lifetime warranty on this product.

      Application. This Zone Offroad 5-Inch Suspension Lift Kit with Fox Shocks fits 2020-2024 Sierra 2500 HD models with top-mounted overload springs.


      • 2020 GMC Sierra 2500
      • 2021 GMC Sierra 2500
      • 2022 GMC Sierra 2500
      • 2023 GMC Sierra 2500
      • 2024 GMC Sierra 2500

      Zone Offroad ZONC50F

      CA Residents: WARNING: Cancer and Reproductive Harm -

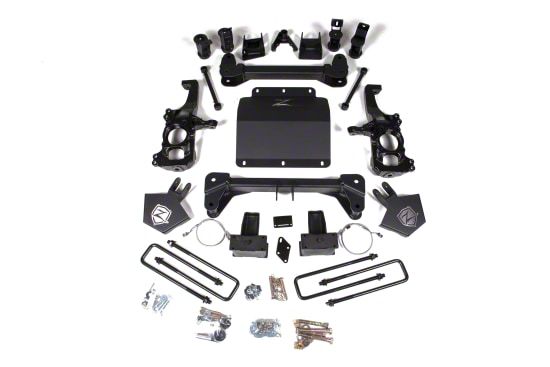

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (4) Shocks
      • (2) Crossmembers
      • (1) Skid Plate
      • (2) Steering Knuckles
      • Relocation Brackets
      • Torsion Bar Crossmember Drop Brackets
      • Sway Bar Links
      • Bump Stop Extensions
      • Brake Lines
      • (2) Rear Lift Blocks
      • U-Bolts
      • Rear Brake and ABS Line Brackets
      • Installation Hardware
