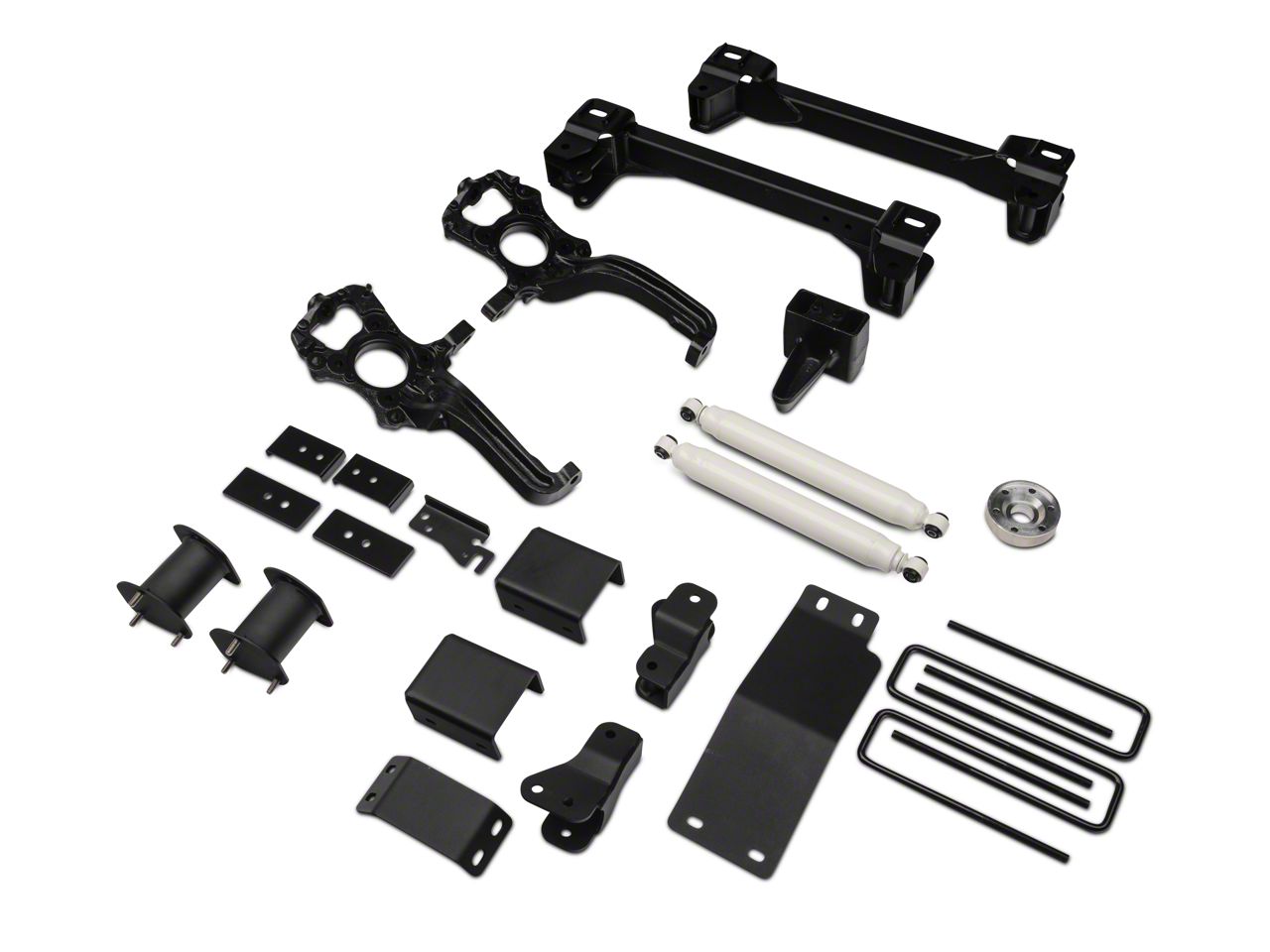

Zone Offroad 6 in. Suspension Lift Kit w/ Shocks (15-20 4WD F-150, Excluding Raptor)

Item T527252
Call a F150 Enthusiast at 1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Market Price $1,513.99 You Save 10% ($150.40)
Our Price

$1,363.59

FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Reviews

      Features

      • 6 in. Lift Kit
      • CNC Machined Steering Knuckles
      • 1-Piece Heavy Duty Cross Members
      • Cam Bolts Included for Easy Alignment
      • Includes Sway Bar Relocation Brackets
      • FMVSS No.126 Compliant
      • Accommodates Up to 37 Inch Tires
      • Optional Hydro or Nitro Rear Shocks
      • Fits 2015-2020 4WD F-150s, Excluding Raptors

      Description

      Whopping 6-Inch Lift. When you want your truck to stand tall and stand out, choose the Zone Offroad 6 in. Suspension Lift Kit w/ Shocks. This kit will provide you with a mighty 6 inches of lift and you will find that it accommodates your tires up to 37 inches. All of the components in this kit are CNC machined for durability and strength. Once the kit is installed, you will receive the perfect amount of ground clearance needed to take on any terrain. While this kit is large and does provide you with an aggressive look, it also provides you with the stability you are after too. This kit is 100 percent in compliance with the stability control system requirements.

      Choose Your Favorite Shocks. One of the nice things about Zone Offroad is that you have the option to choose your own shocks with the Zone Offroad 6 in. Suspension Lift Kit. You can choose from either hydro or nitro shocks and each one comes with a unique twin tube design and is made with a custom valving system that provides you with a comfortable ride at all times.

      CNC Machined Knuckles. The Zone Offroad 6 in. Suspension Lift Kit w/ Shocks comes with CNC machined steering knuckles to provide you with the strength needed from your truck and the superior control you desire.

      Professional Experience. The Zone Offroad 6 in. Suspension Lift Kit w/ Shocks is considered to be moderately difficult to install on your truck and should be done by someone with experience. If you do not have experience, you should seek out a mechanic who can install it for you. The kit comes with all of the hardware, parts, and instructions needed to install this kit seamlessly and you can expect the length of installation to be about one day.

      Application. This Zone Offroad 6 in. Suspension Lift Kit with choice of Hydro or Nitro Shocks is designed for use on all 2015 to 2020 F-150s equipped with four-wheel drive (4WD). The Lift Kit is not compatible on Raptors.

      Technical notes:

      • Requires frame bracket modification.
      • 18" or larger diameter wheels required.
      • 18" wheels with a backspacing of 5.5" should be test fitted for proper tie rod clearance.
      • Stock 20" wheels can be used with up to a 305/60-20 tire.
      • Rear Driveshaft Extension, part# F5601, may be required for 2WD F-150s
      • F-150s equipped with factory power steps will require Zone Offroad E-Brake Relocation Bracket, part# F5608.
      • F-150s equipped with a 2 piece rear driveshaft and carrier bearing may require Zone Offroad Carrier Bearing Drop Kit, part# D5405.

      Fitment: 2015 2016 2017 2018 2019 2020 Details

      MPN# F53N

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      5.0

      Customer Reviews (2)

      Write a Review

      Ratings Summary

      5 out of 5 overall rating from 2 customers

      Installation Time: Full Day





      • February 27, 2019

        5 2018 XLT - ChristianH Installation Time: Full Day

        Awesome kit

        Just finished the install today. Great kit. Could've used better directions or marked the bolts/nuts/washers better but I figured it out. Ride is great. Alignments are easier now as it came with caster bolts. Love that it gives torque specs for each part

        Helpful (3)
      • November 10, 2017

        5 2015 XLT - Bscottnh Installation Time: Full Day

        Zone Off-road 6” suspension lift kit

        This lift kit will definitely give your 2015-17 F150 the looks it needs! Fairly priced and does the job. You can always upgrade the shocks if you’d like. Best bang for your buck.

        Helpful (18)

      Questions & Answers (0 answers)

      No questions about this product yet.

      Ask the First Question

      Installation & What's in the Box

      Installation Info

      Will It Fit My F-150

      • 2.7L V6 EcoBoost - 15, 16, 17, 18, 19, 20
      • 3.0L V6 Power-Stroke - 18, 19, 20
      • 3.3L V6 - 18, 19, 20
      • 3.5L V6 - 15, 16, 17
      • 3.5L V6 EcoBoost - 15, 16, 17, 18, 19, 20
      • 3.5L V6 EcoBoost Limited - 19, 20
      • 5.0L V8 - 15, 16, 17, 18, 19, 20

      Fits 4WD F-150s Only.
