ReadyLIFT 3.5 in. SST Lift Kit (14-20 2WD/4WD F-150, Excluding Raptor)

Item T530048
Call a F150 Enthusiast at 1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Market Price $1,007.94 You Save 11% ($107.99)
Our Price


FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation


      • ReadyLIFT 3.5 in. SST Lift Kit
      • Heavy-Duty Construction
      • Maintains Factory Ride Quality
      • Obtain Safe Level Lift
      • Designed to Correct Ball Joint Angle
      • DOM Tubular Steel Upper Control Arms
      • CNC-Machined Billet Offset Top Mount Spacers
      • CNC-Machined Billet Rear Lift Blocks
      • Tire Clearance up to 35x12.50” - With Minor Trimming
      • Limited Lifetime Manufactures Warranty
      • Made in the USA
      • Fits all 2014-2020 2WD/4WD Ford F-150s, Excluding Raptors


      Lifted and Tough Performance. Raise up your truck effectively increasing your ground clearance and also your ability to handle more off-road situations with this ReadyLift Suspension Lift Kit. The kit raises the height of your vehicle by 3.5"" and it does so using strut extensions up front, control arms and lift blocks all together. The kit offers balanced lifting force and really helps create that height increase that you need for maximum performance.

      3" Billet Aluminum Strut Extensions. This kit features simple strut extension pieces crafted from billet aluminum for a nice lift on your stock truck struts. Once installed you'll add 3" of height to your vehicle instantly.

      Tubular Steel Upper Control Arms. This Readylift kit includes tubular steel upper control arms that are strong enough for reliable performance. They are coated with a black powder coat for durability over time.

      3" Bilet Aluminum Blocks. A set of 3" rear blocks made from billet aluminum are included in the kit to provide a strong lift with parts that won't corrode over time. They feature tabs that keep the mlocked in place during use.

      No Cut Installation. All the necessary hardware is included with this Readylift 3"" lift kit making the installation process straightforward. No cutting or welding is necessary and the parts simply bolt into place keeping it simple. Installation times are estimated at 4 to 6 hours overall.

      Limited Lifetime Warranty. Readylift offers a Limited Lifetime warranty on the parts in this kit offering protection if you have trouble with any of the parts. The company is confident in how the equipment will perform and stands behind each piece.

      Application. Install the ReadyLift 3"" lift kit on 2014 to 2020 Ford F-150 trucks

      Fitment: 2014 2015 2016 2017 2018 2019 2020 Details

      MPN# 69-2300

      CA Residents: WARNING: Cancer and Reproductive Harm -


      Customer Reviews (2)

      Write a Review

      Ratings Summary

      5 out of 5 overall rating from 2 customers

      Installation Time: Weekend

      Installation Cost: $250-$500

      • July 11, 2019

        5 2016 XLT - Schwammy Installation Time: Weekend

        Ready Lift 3.5 in.

        Quality product ! Love the look perfect height. Enough lift to handle 35's . Slight rub on front crash bar when backing while turning. No big deal.

        Helpful (4)
      • February 28, 2017

        5 2016 - Sunny Installation Time: Shop Install Installation Cost: $250-$500

        Amazing lift kit

        This lift kit is awesome since it doesn't reduce the ride quality. Its well built.

        Helpful (40)

      Questions & Answers (23 answers)

      5 Top Rated Questions

      Can i put 20 rims with 35 tire on my f150 2017 with this kit

      • This kit will have tire clearance up to 35". However, this may require some slight trimming. A safe bet to go with would be a 33" tire as this will require no trimming.

      Helpful (8)

      Will my f150 be sitting completely level with this kit or will the rear be a little higher??

      • The ReadyLIFT 3.5 in. SST Lift Kit will provide a level ride height.

      Helpful (8)

      I think you mentioned that the stock shocks would not need to be changed out with this kit? Truck is brand new so shocks are new but is it recommended to install a longer shock? What shocks would you recommend. F150 4x4 supercrew 5.5 box. Thanks

      • The ReadyLIFT 3.5 in. SST Lift Kit will not require new shocks to be installed, due to the design of the kit. A stock length shock is used with this kit.

      Helpful (3)

      Hi, Just have two quick questions. 1- Do I have to get a nes differen size of rear shocks? or factory shocks work with this kit!. 2- Please can you explain little more about 1 or 2 driveshaft? Im not a mechanic and was confuse with that. Thank's

      • The ReadyLIFT 3.5 in. SST Lift Kit can be used with stock or aftermarket shocks, though road handling and ride comfort will be better with aftermarket shocks. Depending on the cab and bed configuration for your truck, you may have a driveshaft that is one piece (one solid tube) or two piece (two tubes, connected in the middle by a support bearing.

      Helpful (3)

      Can we install wheels size 33”x12.5 with this kit?

      • Yes, this lift can accommodate 33"x12.5" tires.

      Helpful (1)
      10 More Questions
      How tall are the rear axle blocks? 2 inches or 3? 1 answer
      So someone above asked about a 17" wheel... If I run them, is the only thing I truly have to be cautious of is the offset?? On ReadyLift's website, as well as me calling them, they have not tested a 17" wheel set up. Des anyone have any experience with a 17" wheel set up??? 1 answer
      Do you have to install the rear blocks. I have a 2.5in level and my truck does not sit perfectly level. I was wanting to raise the front without having to mess with the rear. 1 answer
      Hi. I like this kit.. but i think i would want to get longer shocks front rear, what size would you guy's recommend 2" 3" or 3.5" How come RC has a 3.0" kit that comes with shocks and all. Thank you Tito 1 answer
      Would I still be able to use the stock rims? 1 answer
      2014 F-150... can I run 18x9.5 with 35x12.5 12 with no rubbing or trimming? 1 answer
      Will this work with fox shocks? 0 answer
      Will this work on 2016 supercrew 4x4 fx4 1 answer
      I have read one review about cv axle problems will this kit compromise my front cv joints on my 4x4 ? 0 answer
      does this kit fit 2019 f150 supercrew xlt answer is yes but with fx4 package shock assembly is different and distance between center of wheel and fender is greater than 22inches so my question is will it fit trucks with fx4 pkg 1 answer

      Installation & What's in the Box

      Installation Info

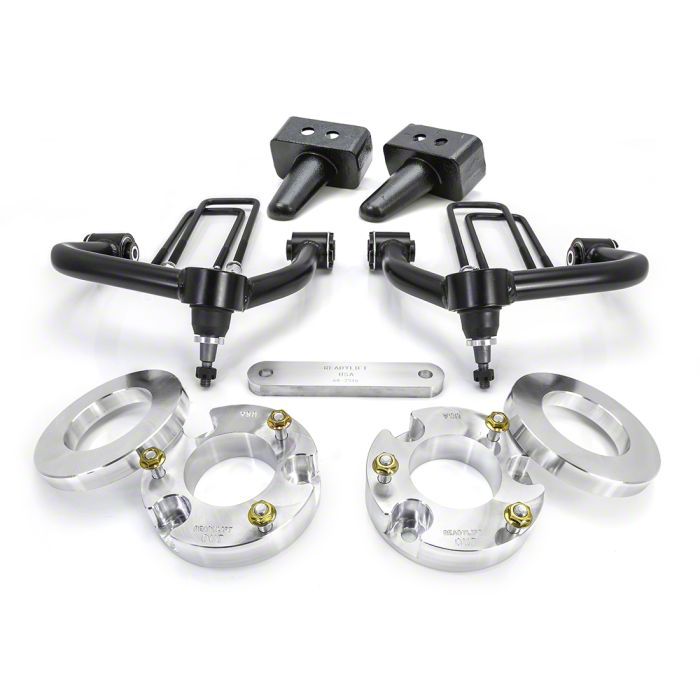

      What's in the Box

      • (2) Rear Lift Blocks
      • (2) Tubular Steel Control Arms
      • (2) Top Mount Spacers
      • (1) Carrier Bearing Spacer
      • Hardware for Mounting
      • Installation Instructions

      Will It Fit My F-150

      • 2.7L V6 EcoBoost - 15, 16, 17, 18, 19, 20
      • 3.0L V6 Power-Stroke - 18, 19, 20
      • 3.3L V6 - 18, 19, 20
      • 3.5L V6 - 15, 16, 17
      • 3.5L V6 EcoBoost - 14, 15, 16, 17, 18, 19, 20
      • 3.5L V6 EcoBoost Limited - 19, 20
      • 3.7L V6 - 14
      • 5.0L V8 - 14, 15, 16, 17, 18, 19, 20
      • 6.2L V8 - 14
