Fabtech 8-Inch Radius Arm Suspension Lift Kit with Stealth Shocks (11-16 4WD F-250 Super Duty w/ Factory Overland Springs)

Find parts that fit my vehicle Item SD0578
Shop Owners Save More! Sign up for our dealer program

    Product Information

    Features, Description, Reviews, Q&A, Specs & Installation

    Features & Specs

    • Suspension Lift System
    • Provides an 8-Inch Lift Height
    • Increases Ground Clearance With Enhanced Handling
    • Front and Rear Stealth Shocks
    • Fabtech Front Coil Springs, Rear Add-a-Leaf Kit
    • Tubular Radius Arms With Dimple Die Side Plates
    • Rear U-Bolt and Block Lift Kit Included
    • Accommodates Up to 37x13.50 Tires and 20x10 Wheels
    • Professional Installation Highly Recommended
    • Limited Lifetime Warranty and a 5-Year, 60,000-Mile Powertrain Warranty
    • Fits All 2011-2016 4WD Ford Super Duty F-250s With Factory Overland Springs

    Description

    Superior All-Terrain Performance. Confidently tackle the challenging terrains with your lifted Super Duty by means of the Fabtech 8-Inch Radius Arm Lift System with Stealth Shocks. This suspension package comes with a pair of radius arms, front coil springs, track bar relocation bracket, Pitman arm, sway bar drops, Stealth shocks, add-a-leaf kit, and rear block and U-bolt kit. It accommodates up to 37x13.50 tires and 20x10 wheels with 4.50-inch backspacing.

    Enhanced Damping Control. Fabtech designed the Stealth shocks with a monotube construction, featuring a high-flow, 46-mm piston for a smoother and more comfortable ride quality. Each shock is composed of a 50-mm seamless steel body, a Nitrocarburized piston rod, and a full floating piston to significantly reduce shock fade at high speeds. It is covered in a black finish that displays a raised nameplate for quality brand recognition and a stunningly fierce appeal.

    Comfortable and Controlled Rides. The hot-wound coil springs in the front lift were made with exact specifications to deliver optimum suspension control. Their black, powder-coated finish attractively adorns your Super Duty's lifted set-up, while ensuring reliable protection from harsh outdoor elements. In addition, the rear lift features a heavy-duty add-a-leaf kit. Adding a leaf to your Super Duty’s leaf springs provide additional support to the vehicle, while offering improved load capacity.

    Proper Steering and High Directional Control. The Fabtech radius arms are designed to provide directional control on the wheels’ longitudinal motion. They are fabricated with a tubular structure and dimple die side plates for superior strength. In addition, each radius arm is equipped with adjustable alignment cams to allow for caster adjustment. It also features Fabtech’s 5-ton joint on the pivot side with durable mounting for maximum vibration absorption. This suspension lift package also includes a Pitman arm crafted using forged steel with excellent design and structural rigidity. It ensures smooth, predictable steering with long-lasting functionality.

    Professional Installation. This 8-Inch Radius Arm Lift System with Stealth Shocks is designed for a bolt-on installation. Its components directly attach to your vehicle’s mounting locations by means of the installation hardware provided. The entire kit installs in approximately a day with mechanical expertise required.

    Warranties. Fabtech backs this 8-Inch Radius Arm Lift System with a limited lifetime warranty that covers factory defects in workmanship and materials. The Five Sixty Powertrain Warranty will apply if the claim falls within the first 5-year or 60,000-mile period of the vehicle. Some exclusions are indicated in the manufacturer’s warranty guide; please check the terms and conditions for full details.

    Application. The Fabtech 8-Inch Radius Arm Lift System with Stealth Shocks fits all 2011-2016 4WD Ford Super Duty F-250 models with Factory Overland Springs.

    Shop All 6 to 8 Inch Truck Lift Kits

    Shop All Truck Parts And Accessories

    Shop All Truck Lift Kits

    Fabtech K2124M

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Install Details & What's in the Box

    Installation Info

    Installation Time

    (approx) 6 Hours

    Difficulty Level:

    Mechanical expertise or professional installation required.

    Installation Guides

      No guide available for this part yet.

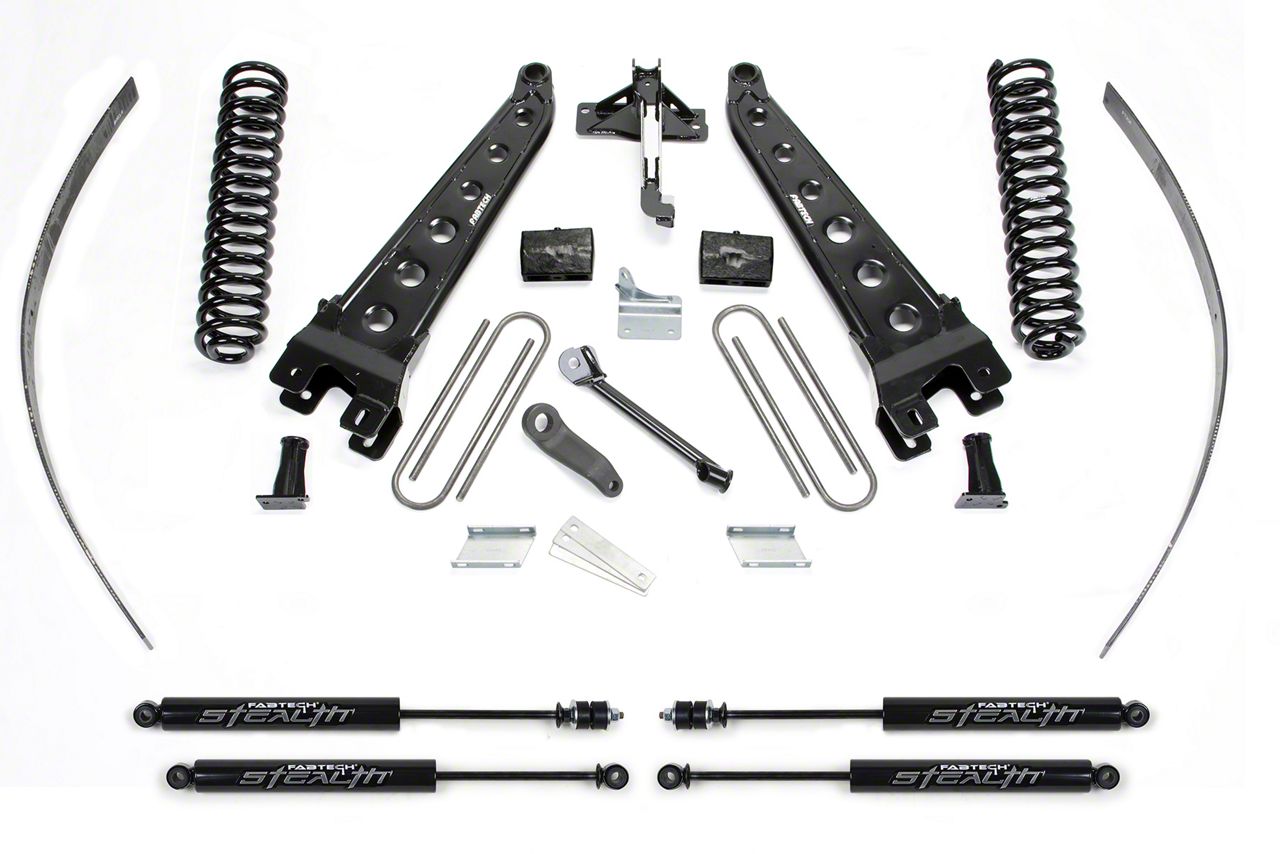

    What's in the Box

    • (1) Driver Side Custom Radius Arm
    • (1) Passenger Side Custom Radius Arm
    • (1) Pitman Arm
    • (1) Driver Side Front Bump Stop
    • (1) Passenger Side Front Bump Stop
    • (1) Steering Stabilizer Drop
    • (1) Driver Side Sway Bar Drop
    • (1) Passenger Side Sway Bar Drop
    • (1) Track Bar Drop Bracket
    • (1) Track Bar Support Tube
    • (2) Front Stealth Shocks
    • (2) Rear Stealth Shocks
    • (4) Bushings
    • (2) Sleeves
    • (1) Alignment Cam Half Kit
    • (2) Brake Lines
    • (2) Brake Line Unions
    • (5) Brake Line Brackets
    • (1) Rear Add-a-Leaf Kit
    • (2) 5-Inch Block
    • (4) U-Bolts
    • (1) Shim Kit
    • (2) Sway Bar Brackets
    • Installation Hardware

    4.0

    Customer Reviews (1)

    Questions & Answers

    No questions about this product yet. Ask the First Question

    Will It Fit My F-250

    • 6.2L V8 - 11, 12, 13, 14, 15, 16
    • 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
