Fabtech 6-Inch Basic Suspension Lift Kit with Stealth Shocks (11-16 4WD F-250 Super Duty)

Item SD0517
Verify parts fit and get product recommendations.
F-250 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$1,625.32 (kit)

FREE Shipping + $149.00 Oversized Item Fee Market Price $1,901.99 You Save 15% ($276.67) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Out of Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Basic Lift Kit With 6-Inch Lift Height for the Front and Rear
      • Designed to Enhance Off-Road Capabilities
      • Smoothens Ride Quality
      • Fabtech Stealth Series Front and Rear Monotube Shocks
      • Fabtech Front Coil Springs
      • Rear Lift Blocks With U-Bolt Kit
      • Track Bar Relocation Bracket
      • Sway Bar Drop Brackets
      • Includes a Pitman Arm
      • Accommodates a Maximum Tire Size of 35 x 12.50 Inches With Minor Trimming
      • Maximum Tire Backspacing of 5 Inches
      • Straightforward Installation
      • Covered by a Limited Lifetime Warranty
      • Fits 2011-2016 Editions of the 4WD Ford F-250 Super Duty

      Description

      Enhanced Off-Road Performance On a Budget. For off-roaders on a budget, this Fabtech 6-Inch Basic Lift System With Stealth Shocks is one of the best options. The front and rear lift height of 6 inches will give you a smooth, comfortable ride experience, even as your Super Duty gets enhanced off-roading capabilities. The added ground clearance will also give you the necessary room to install bigger wheels and tires. Other performance-enhancing components of this basic lift system include a track bar relocation bracket, sway bar drop brackets, and a pitman arm to improve stability, steering response, and overall handling.

      Fabtech Stealth Series Shocks. This basic lift system includes a complete set of front and rear Fabtech Stealth shocks. These monotube shocks are designed with a 46 mm diameter, high-flow pistons that reduce shock fade, ensuring top-notch ride quality even on the bumpiest off-road trails. Meanwhile, the 14-mm nitrocarburized piston rods have superior corrosion resistance and durability. You can count on these shock absorbers to last you a very long time.

      Fabtech Front Coil Springs. The 6-inch front lift height of this lift system is provided by a pair of Fabtech front coil springs. These are made from heavy-duty spring steel, made more durable by a long-lasting corrosion-resistant top coat. Apart from smooth off-road ride quality, the extra height also affords you better visibility and gives your truck a more balanced stance.

      Rear Lift Blocks With U-Bolt Kit. Fabtech included a set of rear lift blocks with a U-bolt kit in this basic lift system to match the 6-inch front lift height provided by the coil springs. These rear lift blocks are made from high-quality steel, with a tapered design to reduce the drive shaft angle and make your truck easier to drive.

      Track Bar Relocation Bracket. This basic lift system comes with a track bar relocation bracket, which helps with optimum positioning of the track bar on the axle. The result is not only better handling both on the street and the trails, but also fewer wobbles and friction of the suspension components that help prolong the lifespan of these parts.

      Sway Bar Drop Brackets. Lifted vehicles usually suffer from handling issues, which is why Fabtech included a set of sway bar drop brackets with this basic lift system. With the help of these components, body roll will be significantly reduced or even completely eliminated. This is especially crucial when it comes to high-speed handling and cornering.

      No-Weld Installation. This basic lift system requires some drilling for installation, but doesn’t need welding for any of the parts. Using the recommended tools and following the instruction manual, you can accomplish installation in about 5 hours. It's highly recommended to re-torque the nuts, bolts, and lugs after 50 miles and then periodically afterward to ensure safety and optimum performance.

      Comes With a Limited Lifetime Warranty. This Fabtech basic lift system is covered by a limited lifetime warranty for defects on the workmanship and materials.

      Application. This Fabtech 6-Inch Basic Lift System With Stealth Shocks can be installed on any 4WD 2011-2016 Ford F-250 Super Duty.

      Shop All 6 to 8 Inch Truck Lift Kits

      Shop All Truck Parts And Accessories

      Shop All Truck Lift Kits

      Fitment:

      Details

      Fabtech K2118M

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

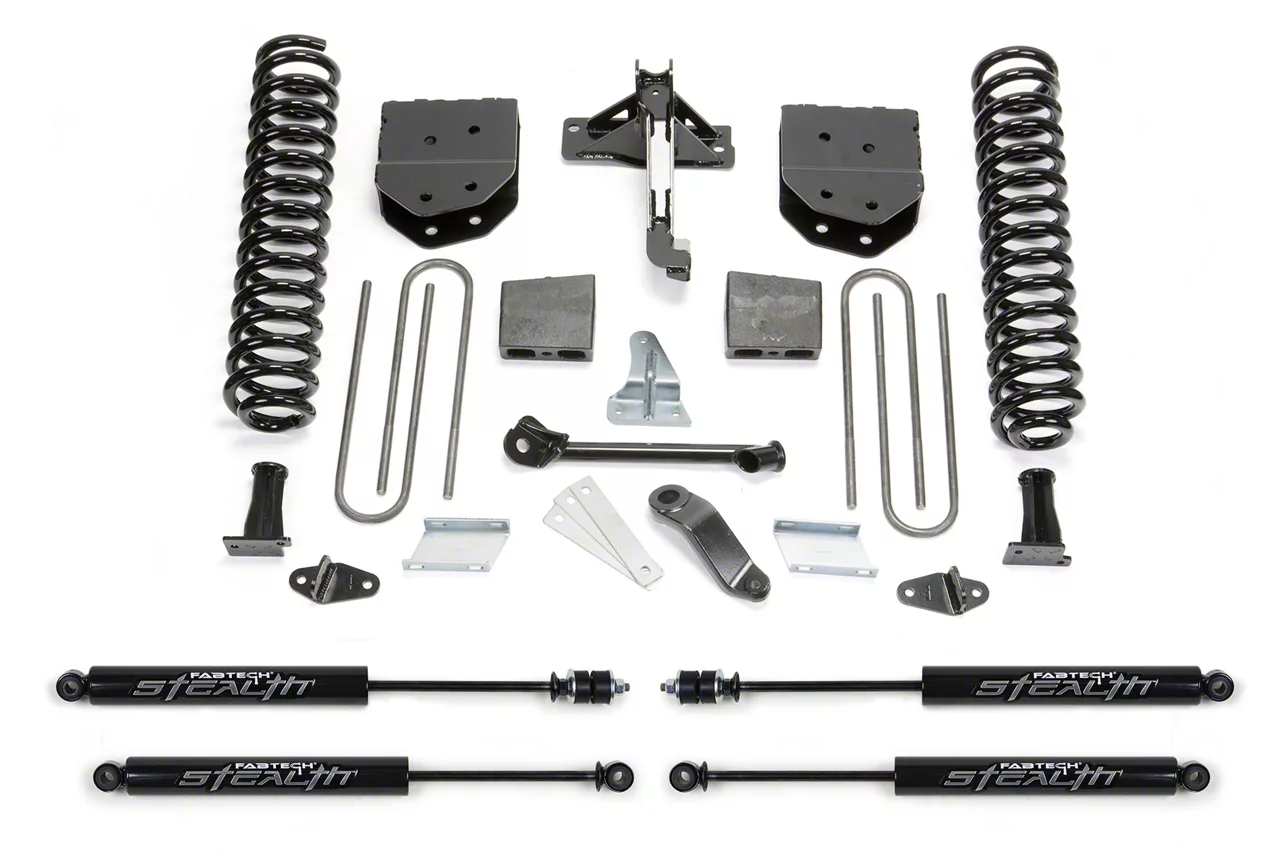

      What's in the Box

      • (2) Stealth Series Front Shocks
      • (2) Stealth Series Rear Shocks
      • (2) Front Coil Springs
      • (1) Rear Lift Block Kit With U-Bolts
      • (1) Track Bar Relocation Bracket
      • (1) Sway Bar Drop Bracket Kit
      • (1) Pitman Arm
      • (1) Coil Box Kit
      • (1) Component Box
      • Mounting Hardware
      • Installation Instructions
      4.6

      Customer Reviews (24)

        Questions & Answers

        10 More Questions

        Will It Fit My F-250

        • 6.2L V8 - 11, 12, 13, 14, 15, 16
        • 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
