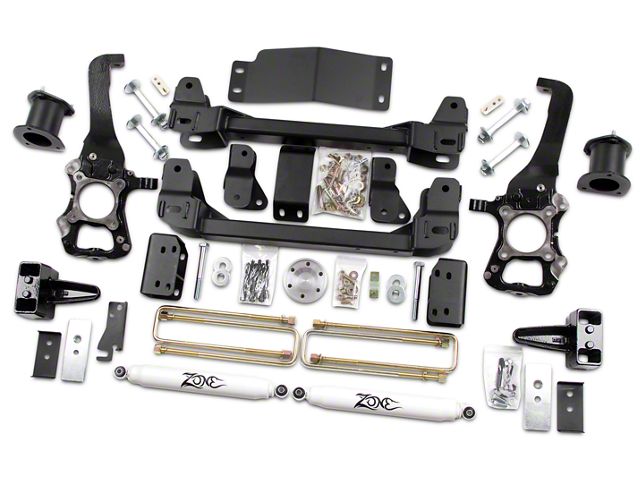

Zone Offroad 4 in. Suspension Lift Kit w/ Shocks (2014 4WD F-150, Excluding Raptor)

Market Price $1,442.99 You Save 10% ($143.04)
Starting At


FREE Shipping
  • Item T527249
  • MPN# F41

Will this fit your Truck?

Ship to: ASHBURN - 20146
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • 4 Inch Strut Spacer and Block Lift
    • CNC Machined Steering Knuckles
    • Heavy 1/4" Thick Cross Members
    • No Change in Track Width
    • Differential Skid Included
    • FMVSS No.126 Compliant
    • Accommodates Up to 35 Inch Tires
    • Optional Hydro or Nitro Rear Shocks
    • Fits 2014 4WD F-150s, Excluding SVT Raptors
    Ground Clearance for All Terrains. Zone Offroad manufacturers some of the best truck products on the market and their quality continues to include the Zone Offroad 4 in. Suspension Lift Kit w/ Shocks. This kit will provide you with a four-inch lift and enough ground clearance, so that you can take on any terrain that you want. You will find that this kit allows your truck to maintain a nice and comfortable ride while continuing to tackle rocks and bumps as you turn off the blacktop. One of the nice things about this kit is that it comes fully compliant with a stability control system. You can equip your truck with 35-inch tires for an intense off-road experience any day of the week. All of the components in the kit are made from some of the strongest components for a durable build.

    You Choose the Shocks. One of the nice things about the Zone Offroad 4 in. Suspension Lift Kit is that Zone Offroad allows you to choose the shocks that you want. You can choose from either hydro or nitro shocks to equip on your truck. Each one of the shocks feature a twin tube design and will provide you with a flawless and comfortable ride.

    CNC Machined. The Zone Offroad 4 in. Suspension Lift Kit comes with CNC machined steering knuckles that add to the supreme performance of your truck.

    Mechanical Expertise. Installation of the Zone Offroad 4 in. Suspension Lift Kit w/ Shocks should be done by a mechanic or someone who has mechanical experience in the field. Your kit will come with detailed instruction for installation along with all of the hardware needed. You can expect the process to take about one-day total.

    Application. This Zone Offroad 4 in. Suspension Lift Kit with choice of Hydro or Nitro Shocks is designed for use on all 2014 F-150s equipped with four-wheel drive (4WD), excluding the SVT Raptor models. Please choose your preferred rear shocks from the options above.

    Technical notes:

    • 17" wheels will not fit after installation.
    • 18x9 wheels with a backspacing of 5.5" should be test fitted for proper tie rod clearance.
    • Stock 20" wheels can be re-used with stock tires only.
    • AWD F-150s will require modification to the front driveshaft.
    • F-150s equipped with factory power steps will require Zone Offroad E-Brake Relocation Bracket, part# F5608.
    • F-150s equipped with a 2 piece rear driveshaft and carrier bearing may require Zone Offroad Carrier Bearing Drop Kit, part# D5405.

    Fitment: 2014 Details

    Installation Info
    Tech Specs

    Lift Specifications.

    • Front Lift Height: 4"
    • Front Lift Method: Strut Spacer
    • Rear Lift Height: 4"
    • Rear Lift Height: Block and U-Bolt

    Hydro Shock Specifications.

    • Collapsed Length: 19.27"
    • Extended Length: 33"
    • Diameter: 2.375"
    • Twin Tube Hydraulic
    • Progressive 10 Stage Velocity Sensitive Valving
    • 5/8" Hardened and Double Chromed Rod
    • 1 3/8" Diameter Piston
    • Double Welded Eyelet
    • Internal Rebound Bumper
    • Urethane Bushings

    Nitro Shock Specifications.

    • Collapsed Length: 19.27"
    • Extended Length: 33"
    • Diameter: 2.375"
    • Nitrogen Gas Charged Shock
    • Twin Tube Design
    • 10 Stage Velocity Sensitive Valving
    • Full Displaced Valving
    • 5/8" Heavy Chromed Road
    • 1 3/8" Fluon Banded Piston
    • Self Lubricating Seals
    • Dual Welded Ends
    • Bushings Included
