Integrated Thermostat Housing Assembly; 194-Degree (15-20 Tahoe)Find parts that fit my vehicle

Name: Integrated Thermostat Housing Assembly; 194-Degree (15-20 Tahoe)
Brand: Store Brand
SKU: CT38226
Price: 99.99 USD
Availability: InStock

Item CT38226

13 Reviews of similar

Our Price

-0% $99.99 Was $99.99

Military, Medical & First Responders $5.00 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?

Update or Change Vehicle

Add to Cart

Save for later

Create a list

Name your new list Add to New List

Saved - View your saved items

We're sorry. We couldn't save this product at this time.

or use

Shop Owners Save More! Sign up for our dealer program

Join For FREE

Product Information

Features, Description, Q&A

Features

High Grade Plastic, Steel, And Copper Construction
Meets Or Exceeds OEM Standards
Consistent And Precise Response To Cooling System Needs
Original Equipment Design For Worry-Free Direct Fit Replacement
100% Tested And Calibrated
Gasket Or Seal Material Rubber
Seal Quantity 1
Gasket Or Seal Included Yes
Start To Open Temperature 194 Deg. F (90.00 Deg. C)
Outlet Port Quantity 2
Mounting Hardware Included No
Mounting Hole Quantity 3
Gasket Or Seal Required Yes
Grade Type Standard Replacement
Includes Sensor No
Valve Type Disk
Bleeder Hole No
Gasket Type O-Ring
Outlet Port Outside Diameter 0.31 In (7.87 Mm) and 1.75 In (44.45 Mm)
Actuator Type Mechanical
Bypass Quantity 1
Inlet Hose Connection Type Bolt On
Inlet Inside Diameter 2.07 In (52.58 Mm)
Outlet Port Length 1.23 In (31.24 Mm)
Inside Diameter 2.07 In (52.58 Mm)
Outlet Port Inside Diameter 1.07 In (27.18 Mm)
Terminal Quantity 0
Inlet Quantity 1
Flange Width 3.40 In (86.36 Mm)
Bypass Outside Diameter 0.35 In (8.89 Mm)
Outlet Hose Connection Type Barbed
MAP Controlled No
Bypass Hose Connection Type Barbed
Bypass Length 0.97 In (24.64 Mm)
Inlet Outside Diameter 2.61 In (66.29 Mm)
Flange Length 3.38 In (85.85 Mm)
Bolt Hole Center To Bolt Hole Center 2.80 In (71.12 Mm) and 3.02 In (76.71 Mm)
Flange Thickness 0.41 In (10.41 Mm)
Mounting Hole Diameter 0.25 In (6.35 Mm)
Bypass Inside Diameter 0.08 In (2.03 Mm)
Fits 15-20 Tahoe

Description

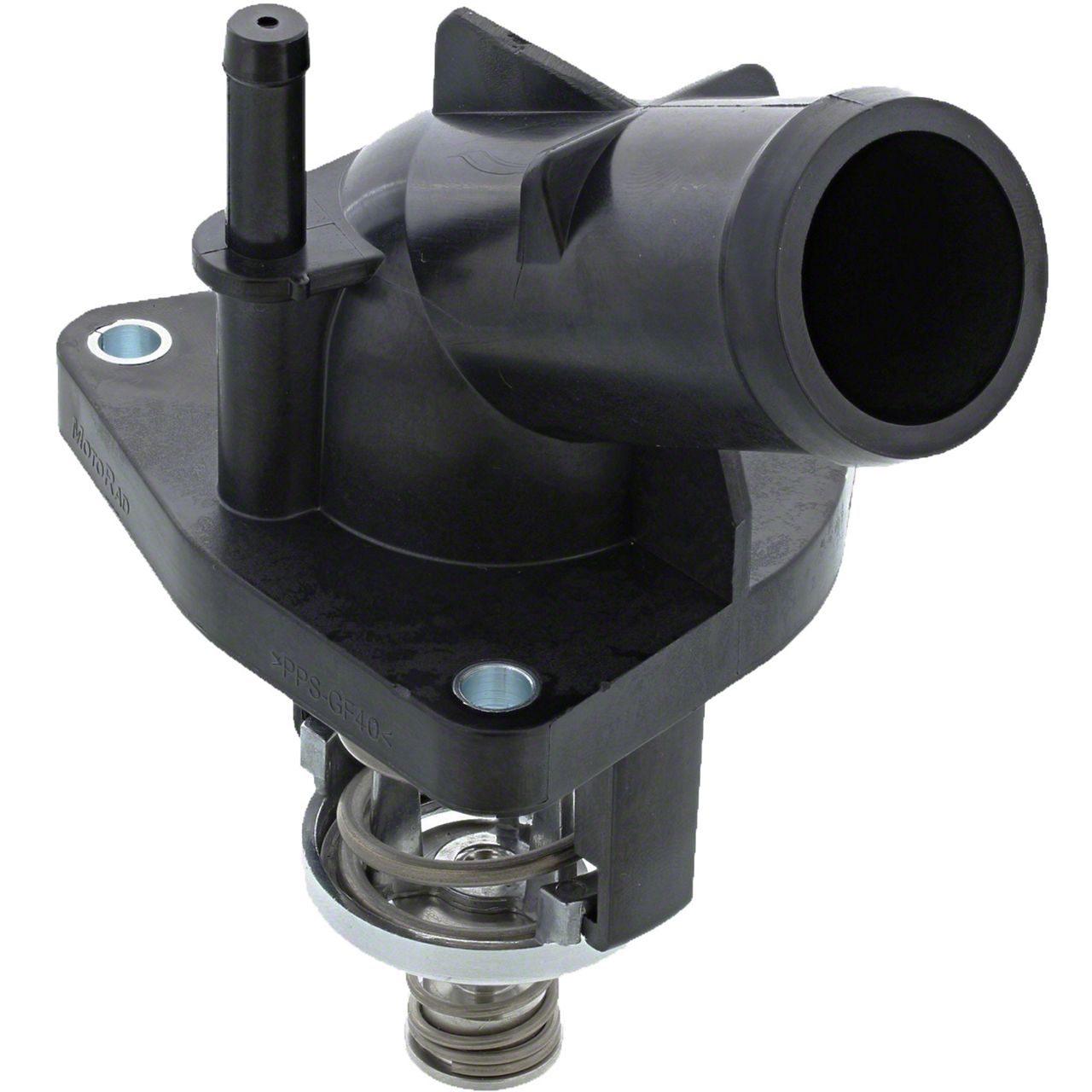

Integrated Cooling Control. The Integrated Thermostat Housing Assembly; 194-Degree is designed to regulate engine temperature by controlling coolant flow. It ensures the engine operates within optimal temperature ranges, preventing overheating and improving performance and efficiency. This thermostat assembly is used in automotive cooling systems to maintain engine temperature stability across various operating conditions.

Construction and Appearance. Crafted from high-grade plastic, steel, and copper materials, this thermostat assembly offers strength and corrosion resistance. It features a black finish and includes a rubber O-ring gasket seal for a reliable and leak-free fit. The materials and construction provide long-lasting durability and precision performance in demanding automotive environments.

Installation. Installation is straightforward, designed as a direct fit replacement to match original equipment specifications. The component uses bolt-on and barbed hose connections, facilitating easy integration into existing cooling systems with standard mounting hardware configurations.

Application. This thermostat assembly fits the 2015-2020 model years of the Tahoe as a reliable replacement or upgrade part, providing precise thermostat control specific to these vehicles’ cooling system requirements.
