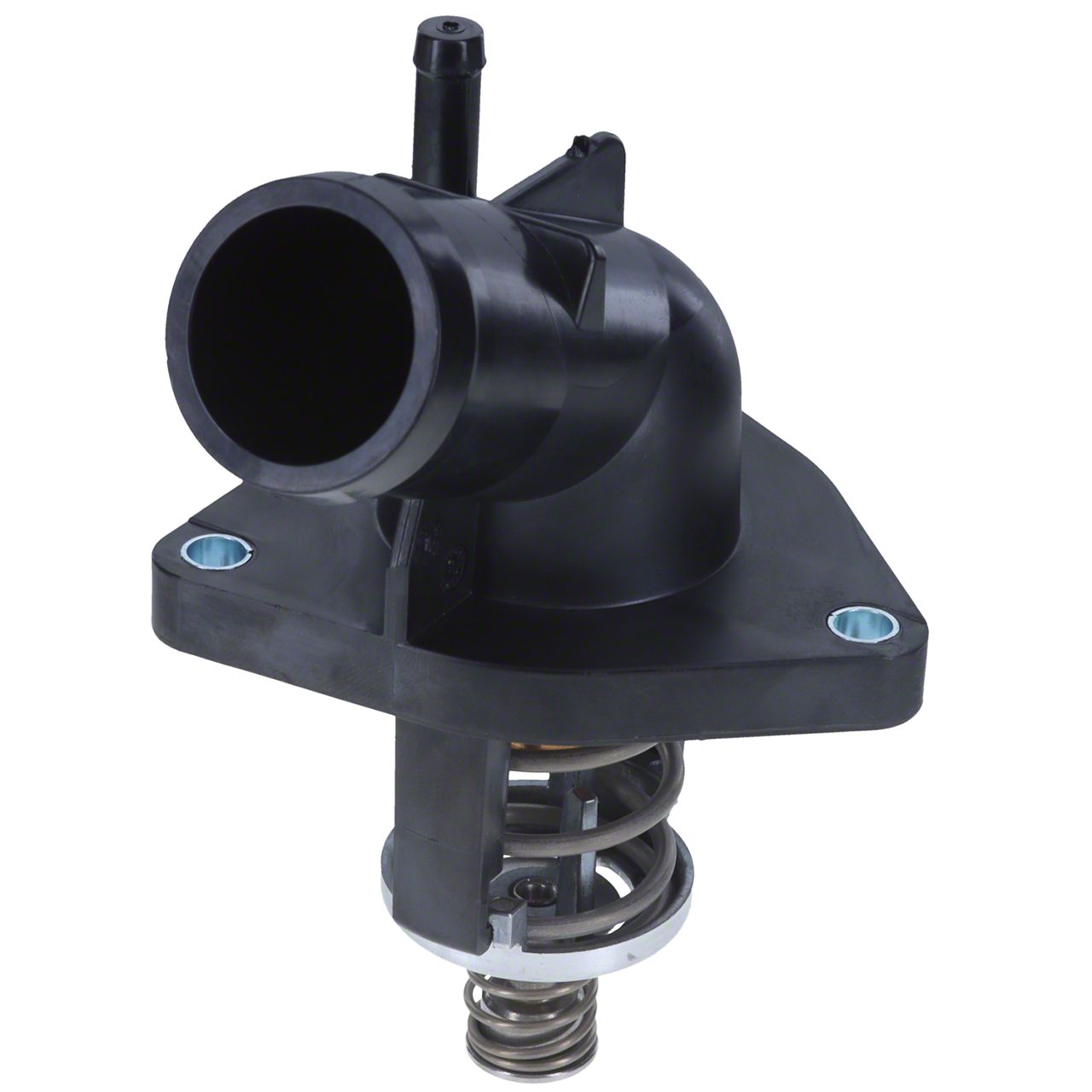

Integrated Thermostat Housing Assembly; 160-Degree (15-20 Tahoe)Find parts that fit my vehicle
Item CT38225
Our Price
$109.99
Military, Medical & First Responders
$5.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Save with Open Box
From $60.49
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- High Grade Stainless Steel, Copper, and Plastic Construction
- Meets Or Exceeds OEM Standards
- Consistent And Precise Response To Cooling System Needs
- Original Equipment Design For Worry-Free Direct Fit Replacement
- 100% Tested And Calibrated
- Prop 65 Warning: Cancer And Reproductive Harm
- Seal Quantity: 1
- Bypass Hose Connection Type: Barbed
- Inlet Hose Connection Type: Bolt On
- Bypass Quantity: 1
- Valve Type: Disk
- Bypass Length: 0.97 In
- Bypass Length: 24.64 Mm
- Outlet Hose Connection Type: Barbed
- Includes Sensor: No
- Inside Diameter: 2.07 In
- Inside Diameter: 52.58 Mm
- Gasket Or Seal Included: Yes
- Outlet Port Inside Diameter: 1.07 In
- Outlet Port Inside Diameter: 27.18 Mm
- Material: Plastic
- Material: Stainless Steel
- Material: Copper
- Mounting Hole Quantity: 3
- Grade Type: Standard Replacement
- Bolt Hole Center To Bolt Hole Center: 2.80 In
- Bolt Hole Center To Bolt Hole Center: 71.12 Mm
- Bolt Hole Center To Bolt Hole Center: 3.02 In
- Bolt Hole Center To Bolt Hole Center: 76.71 Mm
- Mounting Hardware Included: No
- MAP Controlled: No
- Inlet Outside Diameter: 2.61 In
- Inlet Outside Diameter: 66.29 Mm
- Gasket Or Seal Required: Yes
- Inlet Quantity: 1
- Terminal Quantity: 0
- Gasket Or Seal Material: Rubber
- Flange Width: 3.40 In
- Flange Width: 86.36 Mm
- Includes Jiggle Pin Check Valve: No
- Outlet Port Quantity: 2
- Bypass Inside Diameter: 0.08 In
- Bypass Inside Diameter: 2.03 Mm
- Bypass Outside Diameter: 0.35 In
- Bypass Outside Diameter: 8.89 Mm
- Flange Length: 3.38 In
- Flange Length: 85.85 Mm
- Outlet Port Length: 1.23 In
- Outlet Port Length: 31.24 Mm
- Gasket Type: O-Ring
- Inlet Inside Diameter: 2.07 In
- Inlet Inside Diameter: 52.58 Mm
- Bleeder Hole: No
- Actuator Type: Mechanical
- Flange Thickness: 0.41 In
- Flange Thickness: 10.41 Mm
- Start To Open Temperature: 160 Deg. F
- Start To Open Temperature: 71.11 Deg. C
- Outlet Port Outside Diameter: 1.75 In
- Mounting Hole Diameter: 0.25 In
- Mounting Hole Diameter: 6.35 Mm
- Fits 15-20 Tahoe
Description
Precision Cooling Control. The Integrated Thermostat Housing Assembly regulates engine coolant temperature by precisely opening at 160°F (71.11°C). This vital component helps maintain optimal engine performance by controlling coolant flow through the engine cooling system, ensuring efficient operation and preventing overheating under various driving conditions.
Construction and Appearance. Crafted from high-grade stainless steel, copper, and durable plastic, this thermostat housing assembly is built for long-lasting performance and corrosion resistance. It features a black plastic housing and includes a rubber O-ring gasket for a secure and leak-free seal. Its robust construction meets or exceeds original equipment manufacturer (OEM) standards for reliable performance.
Installation. Designed as a direct fit replacement, this thermostat housing assembly installs easily without requiring special modifications. It mounts using three bolt holes and includes a gasket for a proper seal and secure installation.
Application. This thermostat housing assembly specifically fits the 2015-2020 Chevrolet Tahoe models, providing a perfect match for the engine cooling system requirements during these production years.
