SuperLift 6-Inch King Edition 4-Link Suspension Lift Kit (17-22 4WD 6.7L Powerstroke F-250 Super Duty)

Item SD2676
Verify parts fit and get product recommendations.
F-250 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$5,999.99 (kit)

FREE Shipping + $199.00 Oversized Item Fee Market Price $6,899.99 You Save 13% ($900.00) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Get a $250 USD RealTruck Visa® Prepaid Card!

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • Suspension Lift Kit
      • Front and Rear Lift Height of 6 inches
      • Improves Ground Clearance for Wider Tires
      • Maintains Constant Caster Angle
      • Rear King Reservoir Shocks
      • Front King Reservoir Coilover Shocks
      • Sturdy Front Upper and Lower 4-Link Arms With REFLEX Bushings
      • Hardwearing Rear Lift Blocks
      • Allows Mounting of 40-Inch Wide Tires
      • Professional Installation Recommended
      • Lift Force Supplemental Limited Powertrain Warranty
      • Fits 2017-2022 6.7L Ford F-250 4WD Super Duty Models

      Description

      Next-Level Handling and Performance. Take your 2017-2022 Super Duty’s handling and off-road performance to the next level with the SuperLift 6-Inch King Edition 4-Link Suspension Lift Kit. This suspension combines the unique benefit of a 4-link arm system with high-performance King shocks and coil-overs. This set-up results in improved off-road performance that maintains near factory-levels of handling and ride comfort. Moreover, this lift kit allows you to mount 40-inch wide tires providing you with excellent off-road looks and added performance.

      Rear King Reservoir Shock Absorbers. The SuperLift 6-Inch 4-Link Suspension Lift Kit includes a pair of high-performance King reservoir shocks for the rear. These reservoir shock absorbers feature an adjustable design, enabling you to dial-in the right amount of damping for your applications. Moreover, these shocks feature a 6063 aluminum alloy construction and cadmium plating for durability and corrosion resistance.

      Front King Reservoir Coilover Shock Absorbers. The SuperLift King Edition Suspension Lift Kit provides its front lift via superior-performance King reservoir coil-over shocks. These coil-overs use heavy-grade coil springs that when combined with the reservoir shock absorbers provide efficient damping while maintaining proper ride height. Similar to the rear shocks, these reservoir coil-overs are fully adjustable, allowing you to get the right amount of damping for your needs.

      Sturdy Front Upper and Lower 4-Link Arms. To maintain proper handling, the SuperLift 6-Inch Suspension Lift Kit includes a set of upper and lower link arms. These 4-link control arms are engineered to deliver ideal caster angle ensuring near OE-level steering feel, even when going to rapid suspension cycles. Additionally, these link arms utilize resilient REFLEX bushings providing exceptional vibration damping. Lastly, these link arms are manufactured from sturdy steel and come in a wear-resistant black powder-coat finish durability and rust protection.

      Hardwearing Rear Lift Blocks. Lifting your truck's rear is handled by the SuperLift Suspension Lift Kit’s pair of hardwearing lift blocks. These rear lift blocks are precision-manufactured from high-grade steel providing durability and a precise fit. Additionally, these lift blocks feature a tough black powder-coat finish for exceptional protection against rust.

      Professional Installation Recommended. This SuperLift 6-Inch 4-Link Suspension Lift Kit with Superide Shocks requires advanced-level mechanical skills and knowledge, as well as a complete set of tools for efficient and proper installation. Some cutting and drilling are also necessary to mount certain components. Consequently, professional installation is recommended.

      Warranty. Superlift is excited to announce that all lift and leveling kits now come with a free Lift Force Supplemental Limited Powertrain Warranty. This warranty will protect you from disputes with original equipment manufacturers who are unfamiliar with aftermarket suspension systems. The Lift Force Warranty goes into effect if the manufacturer or dealership denies your drivetrain warranty claim due to installation of your Superlift lift or leveling kit.

      Application. The SuperLift 6-Inch 4-Link Suspension Lift Kit with Superide Shocks fits 2017-2022 6.7L Ford F-250 4WD Super Duty models.

      Application Notes. The SuperLift 6-Inch 4-Link Suspension Lift Kit requires a carrier bearing spacer is if your truck is equipped with a 2-piece rear drive shaft. Also, if the truck is equipped with the factory 3.71-inch lift block or top mounted overloads, you will require longer U-bolts.

      Shop All 6 to 8 Inch Truck Lift Kits

      Shop All Truck Parts And Accessories

      Shop All Truck Lift Kits

      Fitment:

      Details

      SuperLift K171KG

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

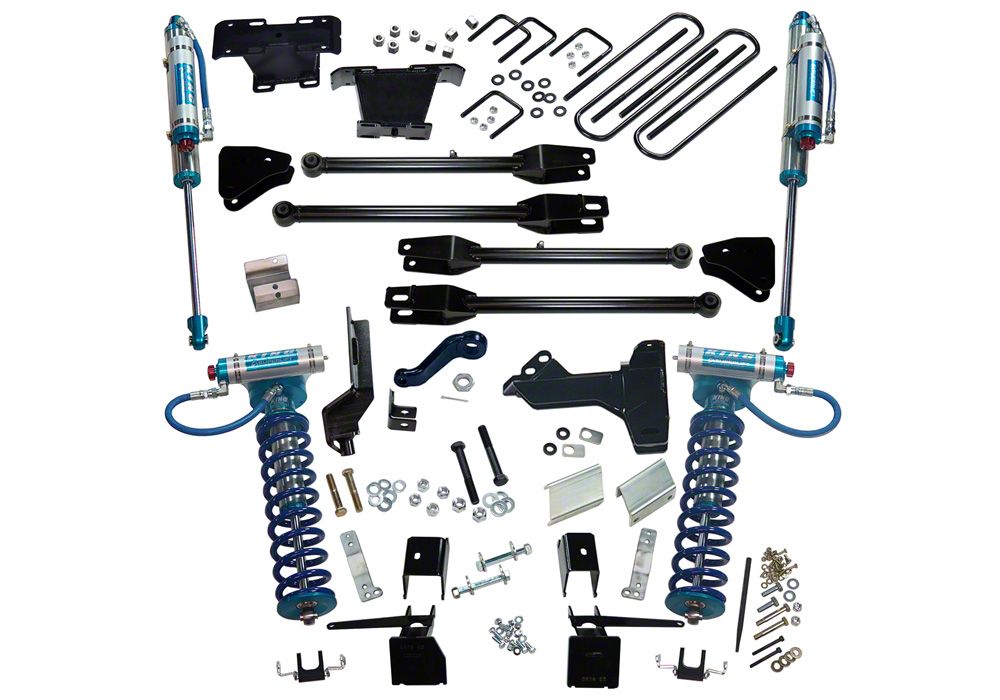

      What's in the Box

      • (2) Front King Coilover Reservoir Shocks
      • (2) Rear King Reservoir Shocks
      • (2) Radius Arm Drop Brackets
      • (2) Front Upper Link Arms
      • (2) Front Lower Link Arms
      • (2) Stabilizer Brackets, Frame and Drag Link Mount
      • (2) Sway Bar Brackets, Driver and Passenger Side
      • (2) Front Bump Stops, Driver and Passenger Side
      • (2) Rear Bump Stops, Driver and Passenger Side
      • (2) Rear Lift Blocks
      • (2) Rear Lift Block Shim Plates
      • (2) Rear Anti-Sway Bar Links
      • (2) Brake Line Brackets
      • (1) Track Bar Bracket
      • (1) Rear Brake Line Bracket
      • (1) Pitman Arm
      • (8) U-Bolts
      • Mounting Hardware
      4.6

      Reviews of SuperLift Suspension Products (120)

      Brand Image

      Reviews of SuperLift Suspension products have an average rating of 4.6 out of 5

        Questions & Answers

        10 More Questions

        Will It Fit My F-250

        • 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22
