SuperLift 4-Inch Radius Arm Suspension Lift Kit with FOX Shocks (17-22 4WD 6.7L Powerstroke F-250 Super Duty)

Item SD4316
Verify parts fit and get product recommendations.
F-250 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$2,749.99 (kit)

FREE Shipping + $99.00 Oversized Item Fee Market Price $3,162.99 You Save 13% ($413.00) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Get a $250 USD RealTruck Visa® Prepaid Card!

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Suspension Lift Kit - 4-inch Lift
      • Maintains Ride Quality and Handling Characteristics
      • Increases Ground Clearance
      • Fox Performance Series 2.0 IFP Shocks - Front and Rear
      • Front Coil Springs
      • High Clearance Radius Arms
      • Fabricated Steel Rear Lift Blocks
      • Track Bar Bracket
      • Accommodates up to 37-inch Tall Tires
      • Straight Forward Bolt-on Installation
      • Fits 2017-2022 4WD 6.7L Powerstroke F-250 Super Duty Models

      Description

      Commanding Stance. Add a commanding, stance to your PowerStroke Super Duty by upgrading to a SuperLift 4-Inch Radius Arm Suspension Lift Kit that includes FOX Shocks. With 4 inches of lift, this kit can accommodate tires up to 37 x 13.5 in size mounted on 20-inch wheels allowing you to conquer any trail. This SuperLift Lift Kit features coil lift springs, high clearance radius arms, track bar and steering stabilizer brackets, as well as rear lift block spacers. What’s more, the included FOX Performance Series 2.0 IFP Shocks provide incredible dampening capacity for aggressive on and off-road driving.

      Fox Performance Series 2.0 IFP Shocks. SuperLift includes FOX Performance Series 2.0 IFP Shocks in this kit for improved handling. Featuring a 5/8-inch hard chrome plated heat-treated alloy steel shaft, these FOX Shocks have a 2-inch diameter CNC machined 6061-T6 shock body that allows for increased cooling capacity. The Internal Floating Piston (IFP) mono-tube design separates the JM92 shock oil from the high-pressure, nitrogen-charged gas chamber to eliminate oil aeration allowing for maximum performance. These Shocks are completed in durable, clear-anodized finish for impressive good looks and long lasting durability.

      Fabricated Rear Lift Blocks. The Rear Lift Blocks included in this SuperLift Kit have been fabricated from high grade steel for superior strength and extra rigidity. This fabricated block replaces the stock block and allows for proper pinion and axle angle all while reducing axle wrap.

      Tubular Radius Arms. SuperLift designed their high clearance radius arms to bolt right into the factory mounts giving your ride a truly custom look and an easy install. These heavy-duty Radius Arms are fabricated from 2-inch OD x 0.156-inch wall DOM tubing and 0.025-inch plate that is CNC formed for precise fitment and is professionally welded by hand. These Radius Arms utilize a press-fit Cleveite® rubber busing for superior vibration dampening and durability.

      Bolt-on Installation. SuperLift engineered their Lift Kit to be installed with no welding needed, making it a bolt-on kit. However, it should be noted that professional installation is recommended. With all the necessary hardware included, this Lift kit can be installed in about 7 hours time. Please note that an alignment is highly recommended after installation.

      Application. This SuperLift 4-Inch Radius Arm Suspension Lift Kit with FOX Shocks is designed to fit 2017-2022 4WD 6.7L Powerstroke F-250 Super Duty models.

      Application Notes.

      • If equipped with a 2-piece rear drive shaft, a carrier bearing spacer is required. Part # 9649
      • If equipped with factory top mount overload leaf springs, longer u-bolts are required. Part # 11724

      Recommended Tire Wheel Sizes.

      • 35 x 12.5 - 17 x 9 with 4.5 backspacing
      • 35 x 12.5 - 18 x 9 with 4.5 backspacing
      • 35 x 12.5 - 20 x 9 with 4.5 backspacing
      • 35 x 12.5 - 20 x 10 with -12 to -24 offset
      • 37 x 12.5 - 17 x 9 with 4.5 backspacing
      • 37 x 12.5 - 18 x 9 with 4.5 backspacing
      • 37 x 12.5 - 20 x 9 with 4.5 backspacing
      • 37 x 13.5 - 20 x 10 with -12 to -24 offset

      Fitment:

      Details

      SuperLift K165F

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

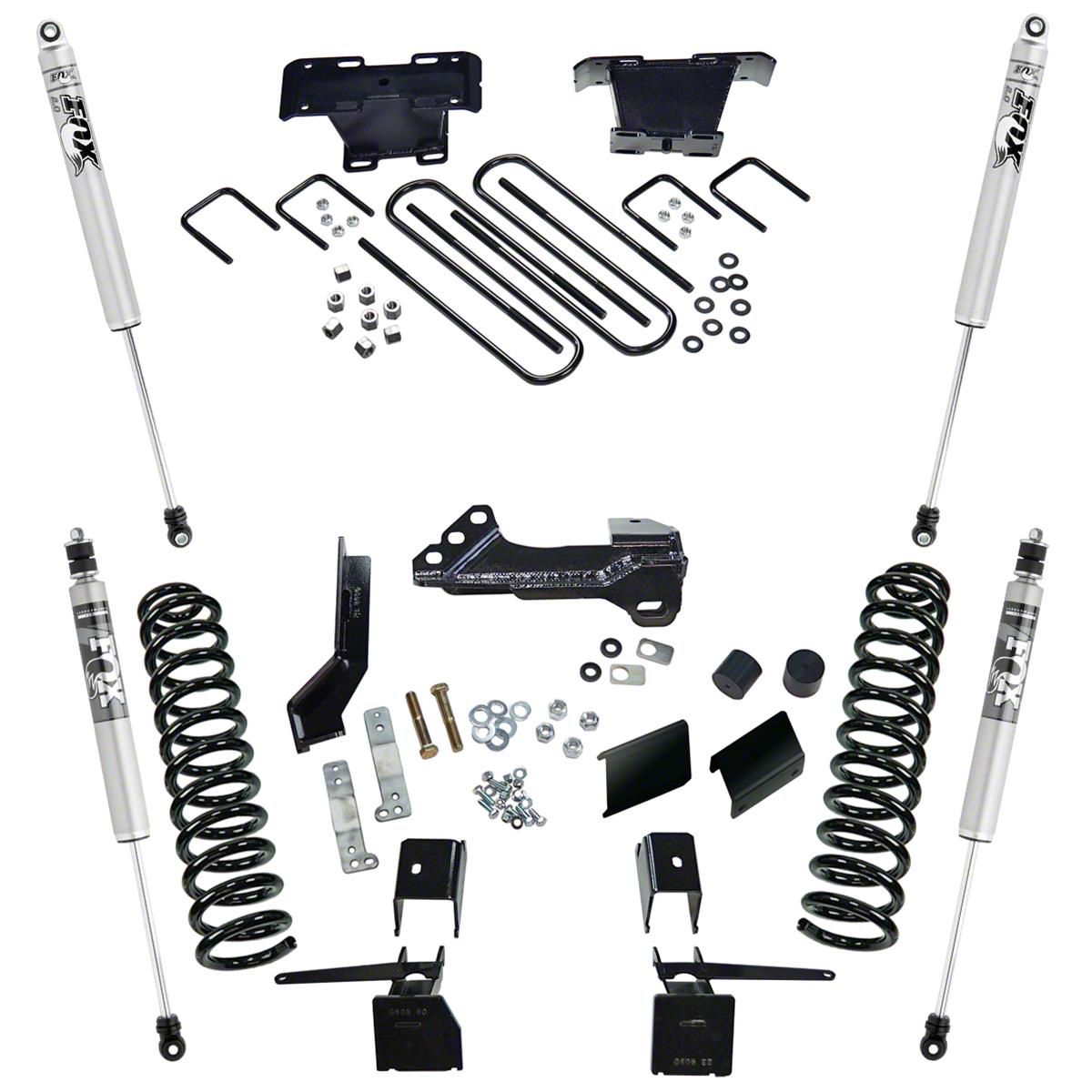

      What's in the Box

      • Front Coil Springs
      • Shocks
      • Radius Arms
      • Track Bar Bracket
      • Brake Line Brackets
      • Steering Stabilizer Bracket
      • Rear Fabricated Blocks with U-bolts
      • Installation Hardware
