Pro Comp Suspension 6-Inch Stage 1 Suspension Lift Kit with Pro Runner Shocks (17-22 4WD 6.7L Powerstroke F-250 Super Duty)
Item SD1074
$0.00
Our Price
$1,544.99 (kit)
FREE Shipping + $199.00 Oversized Item Fee Market Price $1,807.99 You Save 15% ($263.00) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Out of Stock
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Stage 1 Suspension Lift Kit
- Provides a 6-Inch Lift Height for Both the Front and Rear
- Gives a More Aggressive Silhouette and Improves Off-Road Capabilities
- Pro Runner Series Front and Rear Shocks
- Specific Rate Front Coil Springs
- Rear Lift Blocks With U-Bolts, and Add-a-Leafs
- Includes Sway Bar Drops and a Track Bar Relocation Bracket
- Set of 4 Radius Arm Drop Brackets
- Can Accommodate Up to 37-Inch Tires
- Straightforward Installation
- Covered by a Lifetime Warranty
- Fits All 2017-2022 Models of the 4WD Ford Super Duty F-250 With a 6.7L Engine
| Brand | Pro Comp Suspension |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Delivers Off-Road Performance Boosts. If your Ford Super Duty is your daily driver and at the same time off-roading companion, then it’s wise to invest on this Pro Comp 6-Inch Stage 1 Suspension Lift Kit With Pro Runner Shocks. It increases your truck’s ground clearance by up to 6 inches, allowing you to install larger and more capable tires and wheels. The added height also makes your ride smoother and gives your truck a more aggressive-looking stance. This suspension lift kit also includes a pitman arm and a steering stabilizer bracket for enhanced steering control and response, and radius arm drop brackets to maintain ride quality and stability.
Pro Runner Series Front and Rear Shocks. This suspension lift kit comes with front and rear Pro Runner series shocks. These monotube shocks are designed with separate reservoirs for air and oil, preventing cavitation and aeration. The result is better overall damping performance, both in the city and out in the trails. You also won’t experience any shock fade.
Specific Rate Front Coil Springs. Pro Comp included a pair of heavy-duty front coil springs with this kit to provide the front height boost of 6 inches. These springs are made from high-quality materials, which ensure their top-notch strength and durability. You can use them for years and still get consistent ride height. In addition, these springs also help maintain the OEM ride quality of your truck.
Rear Lift Blocks and Add-a-Leafs. To match the front-end lift, this lift kit makes use of lift blocks and add-a-leafs. The rear lift blocks measure 5.50 inches and can easily be put on top of the OEM lift blocks and secured with the enclosed U-bolts. Meanwhile, the add-a-leafs both serve to increase rear height and the load-bearing capacity of your truck.
Sway Bar Drops. One of the main issues with lifted trucks is excessive body roll, which happens mostly when turning or cornering at high speeds. To solve this, Pro Comp included a set of sway bar drops with this lift kit. They help restore your truck’s balance, improve traction, and even make your truck easier to handle.
Track Bar Relocation Bracket. To combat the “death wobble” or the vibrations caused by an improperly centered suspension and frame, this suspension lift kit also comes with a track bar relocation bracket. This component helps keep the necessary parts correctly aligned, reducing the vibrations and keeping your truck stable and easy to steer. What’s more, fewer vibrations means less friction. This results in a longer life of the suspension components.
Direct, No Weld Installation. All the components of this lift kit can be installed directly to replace or supplement the OEM parts. In addition, there’s no welding required. It’s recommended to have a professional perform the installation, which can be accomplished in about a day.
Backed by a Lifetime Warranty. This suspension lift kit comes with a manufacturer’s lifetime warranty, which covers all components barring a few exceptions. For the complete terms and conditions of the warranty and other related inquiries, kindly contact the manufacturer.
Application. This Pro Comp 6-Inch Stage 1 Suspension Lift Kit With Pro Runner Shocks is compatible with 2017-2022 models of the 4WD Ford Super Duty F-250 with a 6.7L engine.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsPro Comp Suspension K4181BP
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

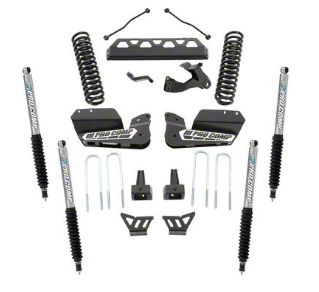

Installation & What's in the Box
Installation Info
What's in the Box
- (2) Front Coil Springs
- (2) Rear Lift Blocks
- (1) U-Bolt Kit
- (4) ES90000 Front and Rear Shocks
- (2) Sway Bar Drops
- (1) Sway Bar Spacer
- (1) Steering Stabilizer Bracket
- (1) Track Bar Drop Bracket
- (1) Pitman Arm
- (1) Pitman Arm Tool
- (2) Bump Stop Spacers
- (2) Rear Sway Bar End Links
- (1) Rear Brake Line Mount
- (2) Front Brake Line Drop Brackets
- (2) Radius Arm Spacer Tubes
- (4) Radius Arm Drop Side Plates
- (2) Front Shock Mount Adapters
- (4) External Reservoir Mounting Kit
- (2) Limit Straps
- (4) Add-a-Leafs
- Complete Mounting Hardware
