Pro Comp Suspension 6-Inch Stage 1 Suspension Lift Kit with ES9000 Shocks (17-22 4WD 6.7L Powerstroke F-250 Super Duty)
Item SD1069
$0.00
Our Price
$1,809.99 (kit)
FREE Shipping + $199.00 Oversized Item Fee Market Price $2,117.99 You Save 15% ($308.00) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Out of Stock
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Stage 1 Suspension Lift Kit
- Adds 6 Inches of Ground Clearance to the Front and Rear
- Provides a More Aggressive Stance and Enhances Off-Roading Performance
- ES9000 Front and Rear Shocks
- Specific Rate Front Coil Springs
- Rear Lift Blocks and Leaf Springs With U-Bolt Kit
- Comes With Sway Bar Drops and a Track Bar Relocation Bracket
- Radius Arm Drop Brackets Are Included
- Can Accommodate Up to 37-Inch Tires
- Straightforward, No-Weld Installation
- Backed by a Lifetime Warranty
- Fits All 2017-2022 4WD Models of the Ford F-250 Super Duty With a 6.7L Engine
| Brand | Pro Comp Suspension |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Better Off-Roading and All-Around Performance. This Pro Comp 6-Inch Stage 1 Suspension Lift Kit With ES9000 Shocks is a great option for improving your Super Duty's performance without putting a huge dent on your budget. This kit provides a 6-inch lift height, allowing you to install larger wheels and tires. The added ground clearance also improves your ride experience both on the streets and the trails and helps with maneuverability over obstacles. Appearance-wise, your Ford Super Duty will have a more robust, rugged stance. You also don’t have to worry about losing the smooth factory ride quality and steering of your truck, since this kit comes with radius arm drop brackets.
ES9000 Front and Rear Shocks. These ES9000 shocks may be Pro Comp’s baseline shock absorbers, but they deliver more than basic damping. They have a 10-stage, velocity sensitive valving, so your ride quality stays smooth no matter how fast or slow you go. They also have .375-inch, nylon-banded pistons and a nitrogen gas-charged design to ensure excellent street and off-road performance.
Specific Rate Front Coil Springs. This suspension lift kit comes with front coil springs to pull your truck up by 6 inches. These springs are made from high-quality spring steel, so they’re able to withstand heavy compression. You can rest assured that your ride height will remain consistent for years to come. They also help the shocks and the radius arm drop brackets maintain the OEM ride quality of your truck.
Rear Lift Blocks and Add-a-Leafs. For the rear lift, this kit makes use of rear lift blocks and add-a-leafs. The 5.50-inch lift blocks can simply be stacked on top of the current blocks, and then secured in place with the U-bolts included in this kit. Meanwhile, the add-a-leafs (also called leaf springs) don’t just add a bit of extra height, they also help increase your truck’s rear load capacity.
Sway Bar Drops. This stage 1 suspension lift kit comes with sway bar drops to help minimize body roll when driving in a curve or taking corners. Reducing the body roll improves your truck’s balance and traction. These sway bar drops also contribute to the better, lighter handling of your truck.
Track Bar Relocation Bracket. The “death wobble” is a common issue in vehicles with altered suspensions. To reduce or eliminate these unnecessary vibrations, Pro Comp included a track bar relocation bracket with this lift kit. With a properly aligned frame and suspension, you’ll notice an improvement in your truck’s stability. This track bar relocation bracket also enhances steering response together with the steering stabilizer bracket.
Bolt-On Installation. All components of this stage 1 suspension lift kit are engineered for a bolt-on installation, with minimal drilling needed. It’s highly advisable to have this kit professionally installed to ensure the best results. Total installation time is approximately 8 hours or about a day's work.
Backed by a Lifetime Warranty. This stage 1 suspension lift kit is covered by Pro Comp’s lifetime warranty. This includes all components, with only a few exceptions. If you have any questions regarding the warranty coverage and policies, kindly get in touch with the manufacturer.
Application. This Pro Comp 6-Inch Stage 1 Suspension Lift Kit With ES9000 Shocks can be installed on all 2017-2022 4WD editions of the Ford F-250 Super Duty with a 6.7L engine.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsPro Comp Suspension K4186B
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

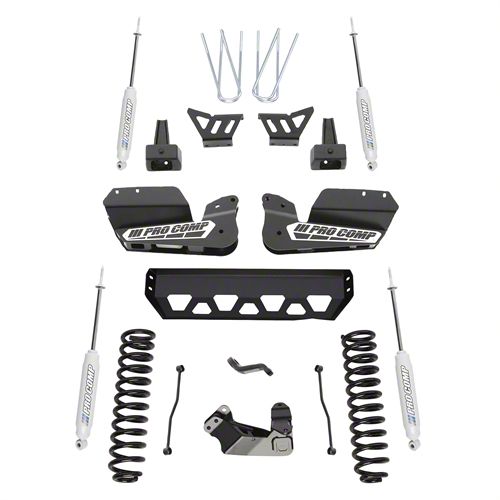

What's in the Box
- (2) Front Coil Springs
- (2) Rear Lift Blocks
- (1) U-Bolt Kit
- (4) ES90000 Front and Rear Shocks
- (2) Sway Bar Drops
- (1) Sway Bar Spacer
- (1) Steering Stabilizer Bracket
- (1) Track Bar Drop Bracket
- (1) Pitman Arm
- (1) Pitman Arm Tool
- (2) Bump Stop Spacers
- (2) Rear Sway Bar End Links
- (1) Rear Brake Line Mount
- (2) Front Brake Line Drop Brackets
- (2) Radius Arm Spacer Tubes
- (4) Radius Arm Drop Side Plates
- (2) Front Shock Mount Adapters
- (4) External Reservoir Mounting Kit
- (2) Limit Straps
- (4) Add-a-Leafs
- Complete Mounting Hardware
