Fabtech 8-Inch Radius Arm Suspension Lift Kit with Performance Shocks (11-16 4WD F-250 Super Duty w/ Factory Overland Springs)
Item SD0575
$0.00
Our Price
$2,439.36 (kit)
FREE Shipping + $99.00 Oversized Item Fee Market Price $2,853.99 You Save 15% ($414.63) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Out of Stock
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift System
- Provides an 8-Inch Lift Height
- Increases Ground Clearance With Enhanced Handling
- Front and Rear Performance Shocks
- Fabtech Front Coil Springs
- Tubular Radius Arms With Dimple Die Side Plates
- Rear Add-a-Leaf Kit, U-Bolt and Block Lift Kit Included
- Accommodates Up to 37x13.50 Tires and 20x10 Wheels
- Professional Installation Highly Recommended
- Limited Lifetime Warranty and a 5-Year, 60,000-Mile Powertrain Warranty
- Fits All 2011-2016 4WD Ford Super Duty F-250s With Factory Overland Springs
| Brand | Fabtech |
| Lift Height | 8.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Excellent All-Terrain Performance. Take your Super Duty to rougher trails with assurance and confidence that it can crawl with optimum stability. Fabtech offers the 8-Inch Radius Arm Lift System with Performance Shocks for optimum all-terrain dynamics. This suspension package comes with a pair of radius arms, front coil springs, track bar relocation bracket, Pitman arm, sway bar drops, Performance shocks, add-a-leaf kit, and a rear block and U-bolt kit.
Superior Damping Capacity. Fabtech designed the Performance shocks with a twin-tube, hydraulic configuration, featuring a high-flow, 9-stage valving for improved damping capacity. Each shock is composed of a hardened chrome piston rod, inner pressure tube, outer reserve tube, and a closed cell foam insert to reduce shock fade at high speeds.
Smooth and Controlled Off-Roading. The coil springs for the front lift are hot-wound with high flexibility and excellent tensile strength. These springs are reinforced with a black powder coated finish for optimum resistance to abrasion, corrosion, and chipping. The rear lift uses an add-a-leaf kit designed to provide additional support to the vehicle load, while offering improved spring capacity.
Exceptional Steering and Directional Stability. The Radius Arms in this lift kit ensure that your lifted truck will remain stable and aligned when hard braking and will maintain contact with the ground when accelerating. Each radius arm comes in a durable, tubular build with dimple die side plates. The adjustable alignment cams and 5-ton joint significantly enhance your vehicle’s directional stability. Additionally, the Pitman Arm ensures proper steering geometry to provide more predictable steering, while maintaining optimum articulation.
Installation. This 8-Inch Radius Arm Lift System is designed for a bolt-on installation. Its components directly attach to your vehicle’s mounting locations by means of the installation hardware provided. The entire kit installs in approximately a day with mechanical expertise required.
Warranties. Fabtech backs this 8-Inch Radius Arm Lift System with a limited lifetime warranty that covers factory defects in workmanship and materials. The Five Sixty Powertrain Warranty will apply if the claim falls within the first 5-year or 60,000-mile period of the vehicle. Some exclusions are indicated in the manufacturer’s warranty guide; please check the terms and conditions for full details.
Application. The Fabtech 8-Inch Radius Arm Lift System with Performance Shocks fits all 2011-2016 4WD Ford Super Duty F-250 models with Factory Overland Springs.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2124
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

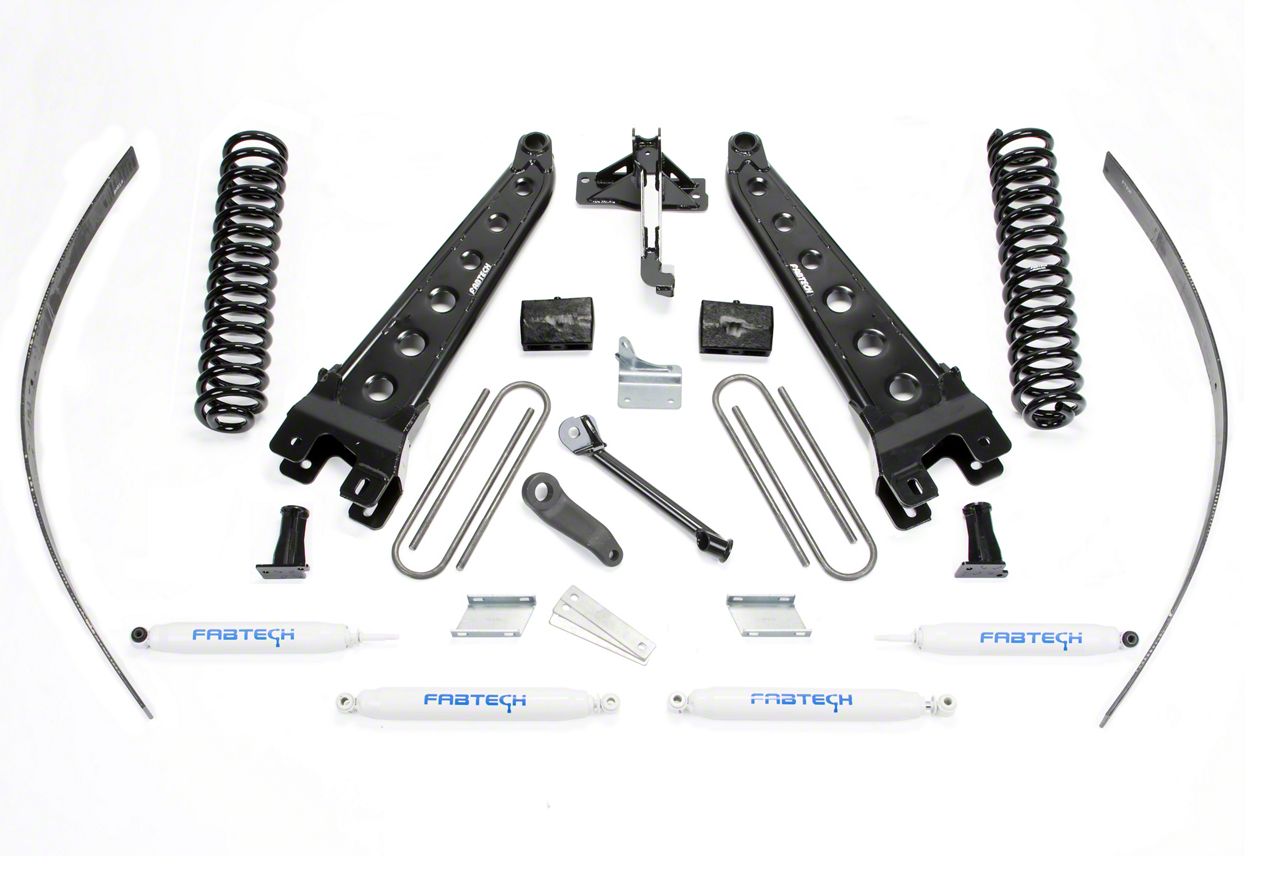

What's in the Box
- (1) Driver Side Custom Radius Arm
- (1) Passenger Side Custom Radius Arm
- (1) Pitman Arm
- (1) Driver Side Front Bump Stop
- (1) Passenger Side Front Bump Stop
- (1) Steering Stabilizer Drop
- (1) Driver Side Sway Bar Drop
- (1) Passenger Side Sway Bar Drop
- (1) Track Bar Drop Bracket
- (1) Track Bar Support Tube
- (2) Front Performance Shocks
- (2) Rear Performance Shocks
- (4) Bushings
- (2) Sleeves
- (1) Alignment Cam Half Kit
- (2) Brake Lines
- (2) Brake Line Unions
- (5) Brake Line Brackets
- (1) Rear Add-a-Leaf Kit
- (2) 5-Inch Block
- (4) U-Bolts
- (1) Shim Kit
- (2) Sway Bar Brackets
- Installation Hardware
