Fabtech 8-Inch Radius Arm Suspension Lift Kit with Dirt Logic Shocks (11-16 4WD F-250 Super Duty w/o Factory Overland Springs)
Item SD0570
$0.00
Our Price
$3,565.88 (kit)
FREE Shipping + $99.00 Oversized Item Fee Market Price $4,171.99 You Save 15% ($606.11) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Out of Stock
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift System
- Provides an 8-Inch Lift Height
- Facilitates Steady Off-Road Dynamics
- Front and Rear Dirt Logic 2.25 Shocks
- Fabtech Front Coil Springs
- With Full, Tubular Radius Arms
- Rear U-Bolt and Block Lift Kit Included
- Accommodates Up to 37x13.50 Tires and 20x10 Wheels
- Professional Installation Highly Recommended
- Limited Lifetime Warranty and a 5-Year, 60,000-Mile Powertrain Warranty
- Fits All 2011-2016 4WD Ford Super Duty F-250s Without Factory Overland Springs
| Brand | Fabtech |
| Lift Height | 8.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Aggressive Off-Road Stance. Maximize your Super Duty’s off-roading capabilities by installing the Fabtech 8-Inch Radius Arm Lift System with Dirt Logic Shocks. This suspension lift system accommodates up to 37x13.50-inch tires and wheels up to 20x10 with 4.50-inch backspacing. With this upgrade, you will experience superior off-road driveability and improved handling with your lifted truck set-up.
Smoother Ride. This Radius Arm Lift System comes with front and rear Dirt Logic 2.25 Shocks that were pre-tuned for optimum performance. The stainless steel shock body sports a finely detailed machine finish for a stunning appearance. Each shock also features a billet aluminum piston and a NitroSteel piston rod for maximum corrosion resistance and long service life.
Fabtech Front Coil Springs. The Fabtech front coil springs are engineered to provide your Super Duty with the needed lift and compression to scale various obstacles. Each spring was crafted with high tensile strength to lessen vibrations. This pair works perfectly well with the Dirt Logic shocks to compress and rebound in supporting the suspension. Additionally, it is reinforced by the durable black finish for extra durability and visual appeal.
Superior Control and Directional Stability. The tubular Fabtech Radius Arms are designed to bolt in the factory location while adjusting the suspension geometry. The sides are furnished with dimple die plates to reduce weight, while adding extra strength and maintaining the necessary rigidity. Additionally, the adjustable alignment cams at the axle ensure optimum caster adjustment and maximum tire clearance. This lift system also includes a Pitman Arm that was built with high dimensional accuracy and CNC-machined material. This component effectively maintains proper steering geometry and reliable pivoting support.
Installation. The components of this 8-Inch Radius Arm Lift System with Dirt Logic Shocks directly attach to your vehicle’s factory mounting locations. This kit includes all the necessary hardware for a bolt-on installation process that completes in about a day with mechanical expertise required.
Warranties. Fabtech backs this 8-Inch Radius Arm Lift System with a limited lifetime warranty that covers factory defects in workmanship and materials. The Five Sixty Powertrain Warranty will apply if the claim falls within the first 5-year or 60,000-mile period of the vehicle. Some exclusions are indicated in the manufacturer’s warranty guide; please check the terms and conditions for full details.
Application. The Fabtech 8-Inch Radius Arm Lift System with Dirt Logic Shocks is intended for use on all 2011-2016 4WD Ford Super Duty F-250 models without Factory Overland Springs.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2123DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

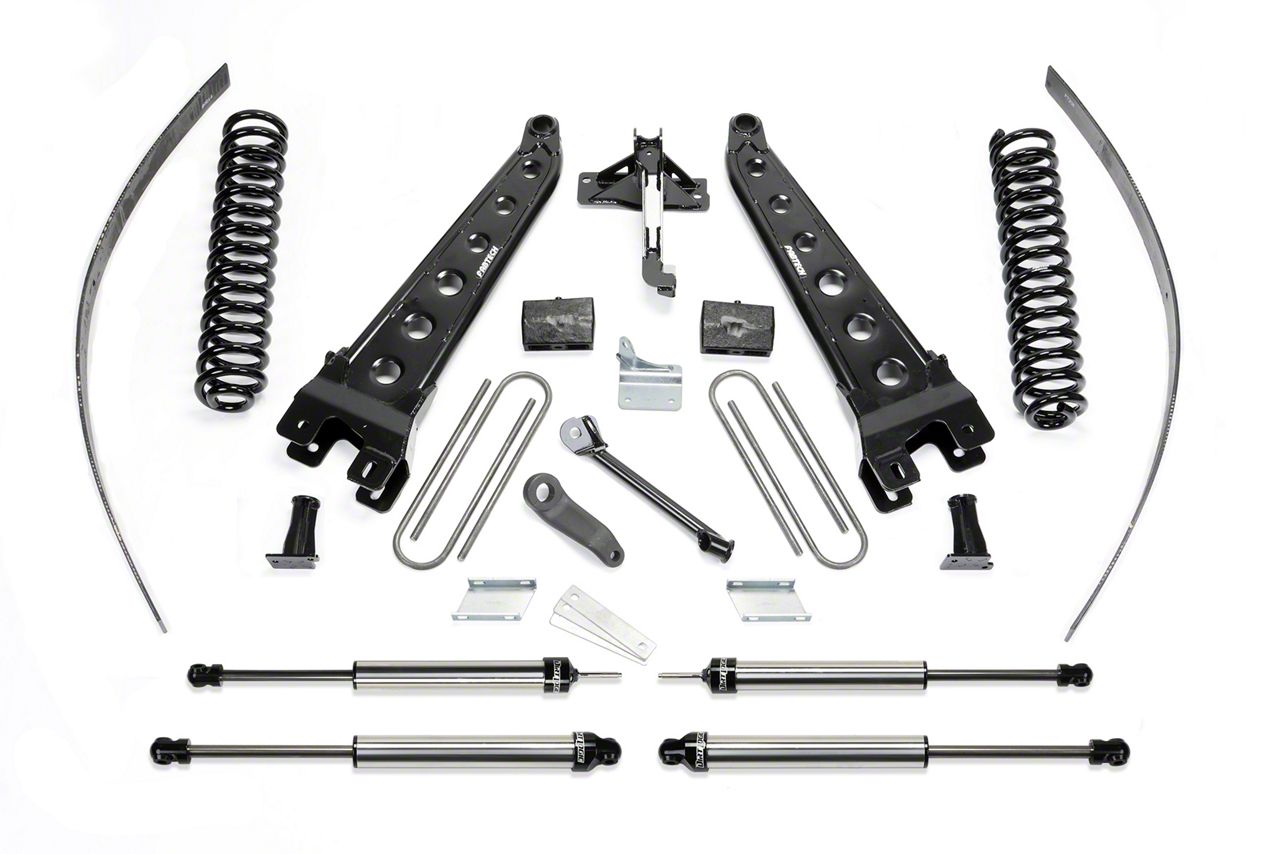

What's in the Box
- (1) Driver Side Custom Radius Arm
- (1) Passenger Side Custom Radius Arm
- (1) Pitman Arm
- (1) Driver Side Front Bump Stop
- (1) Passenger Side Front Bump Stop
- (1) Steering Stabilizer Drop
- (1) Driver Side Sway Bar Drop
- (1) Passenger Side Sway Bar Drop
- (1) Track Bar Drop Bracket
- (1) Track Bar Support Tube
- (2) Front Dirt Logic 2.25 Shocks
- (2) Rear Dirt Logic 2.25 Shocks
- (4) Bushings
- (2) Sleeves
- (1) Alignment Cam Half Kit
- (2) Brake Lines
- (2) Brake Line Unions
- (5) Brake Line Brackets
- (2) 5-Inch Block
- (4) U-Bolts
- (1) Shim Kit
- (2) Sway Bar Brackets
- Installation Hardware
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
10 More Questions
Will It Fit My F-250
- 6.2L V8 - 11, 12, 13, 14, 15, 16
- 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
