Fabtech 8-Inch Radius Arm Suspension Lift Kit with Dirt Logic 2.25 Shocks (17-22 4WD 6.7L Powerstroke F-250 Super Duty)
Item SD0562
$0.00
Our Price
$4,252.50 (kit)
FREE Shipping + $99.00 Oversized Item Fee Market Price $4,974.99 You Save 15% ($722.49) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Provides 8 Inches of Lift, Front and Rear
- Enhances Ground Clearance for Better Off-Road Capabilities
- Front and Rear Dirt Logic Shocks
- Rigid Coil Springs
- Heavy-Duty Front Radius Arms
- Extended Length Adjustable Track Bar
- Rear Lift Blocks
- Allows Use of 40-Inch Wide Tires
- Professional Installation Recommended
- Limited Lifetime Warranty
- Fits All 2017-2022 Ford F-250 6.7 4WD Super Duty Models
| Brand | Fabtech |
| Lift Height | 8.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 40 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Superior Lift Kit for Superior Performance. The Fabtech 8-Inch Radius Arm Lift System With Dirt Logic 2.25 Shocks is the ideal suspension lift kit that offers superior off-road performance and ride quality for your Super Duty. Offering 8 inches of overall lift, this kit is what you need when you’re looking to take your off-roading to newer, more aggressive heights. Additionally, this lift kit allows you to install up to 40-inch wide tires, which helps with both off-road performance and looks.
Front and Rear Dirt Logic Shocks. The Fabtech 8-Inch Radius Arm Lift System replaces your stock shocks with front and rear Dirt Logic shock absorbers. These shocks feature a 2.25-inch OD stainless steel body, 2.0-inch OD billet aluminum piston, and a 0.87-inch thick NitroSteel piston rod, making them significantly tougher built over stock. These shocks use proprietary shock oil and are tuned specifically for use with larger tires. The result is excellent dampening both on and off-road.
Rigid Coil Springs With 8 Inches of Lift. The Fabtech 8-Inch Radius Arm Lift System provides its front lift courtesy of a pair of rigid coil springs. These coil springs are fabricated from high-grade steel and are engineered to provide a comfortable ride quality. Also, these coil springs receive a durable, black powder-coat finish for superior rust protection.
Heavy-Duty Front Radius Arms. The Fabtech 8-Inch Radius Arm Lift System comes with a pair of heavy-duty front radius arms. These radius arms maintain proper front-to-rear positioning of the coil springs in relation to your truck’s axle, keeping correct steering geometry. These radius arms are precision-formed from high-grade tubular steel and feature dimpled side plates for added sturdiness.
Extended Length Track Adjustable Bar. To also help maintain proper steering geometry, the Fabtech 8-Inch Radius Arm Lift System includes an adjustable track bar that’s 4 inches longer than stock. This track bar is specifically configured for use with larger tires. This track bar is crafted from steel DOM tubing with 0.375-inch thick walls for strength and is finished in a black powder coating for rust protection.
Tough Rear Lift Blocks. The Fabtech 8-Inch Radius Arm Lift System’s rear lift is provided by tough lift blocks. These lift blocks are cast from super-strong iron alloy for maximum strength. These lift blocks are then finished in a black powder coating for added protection against rust.
Efficient Installation With Cutting and Drilling. The Fabtech 8-Inch Radius Arm Lift System With Dirt Logic 2.25 Shocks will require cutting and drilling during installation to properly fit certain components. The installation will also require several hours to a day. As such, professional installation is recommended.
Includes a Limited Lifetime Warranty Coverage. The Fabtech 8-Inch Radius Arm Lift System includes a limited lifetime warranty coverage against manufacturing defects. Please visit the manufacturer’s website for more details.
Application. The Fabtech 8-Inch Radius Arm Lift System With Dirt Logic 2.25 Shocks fits all 2017-2022 Ford F-250 6.7 4WD Super Duty models.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2265DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

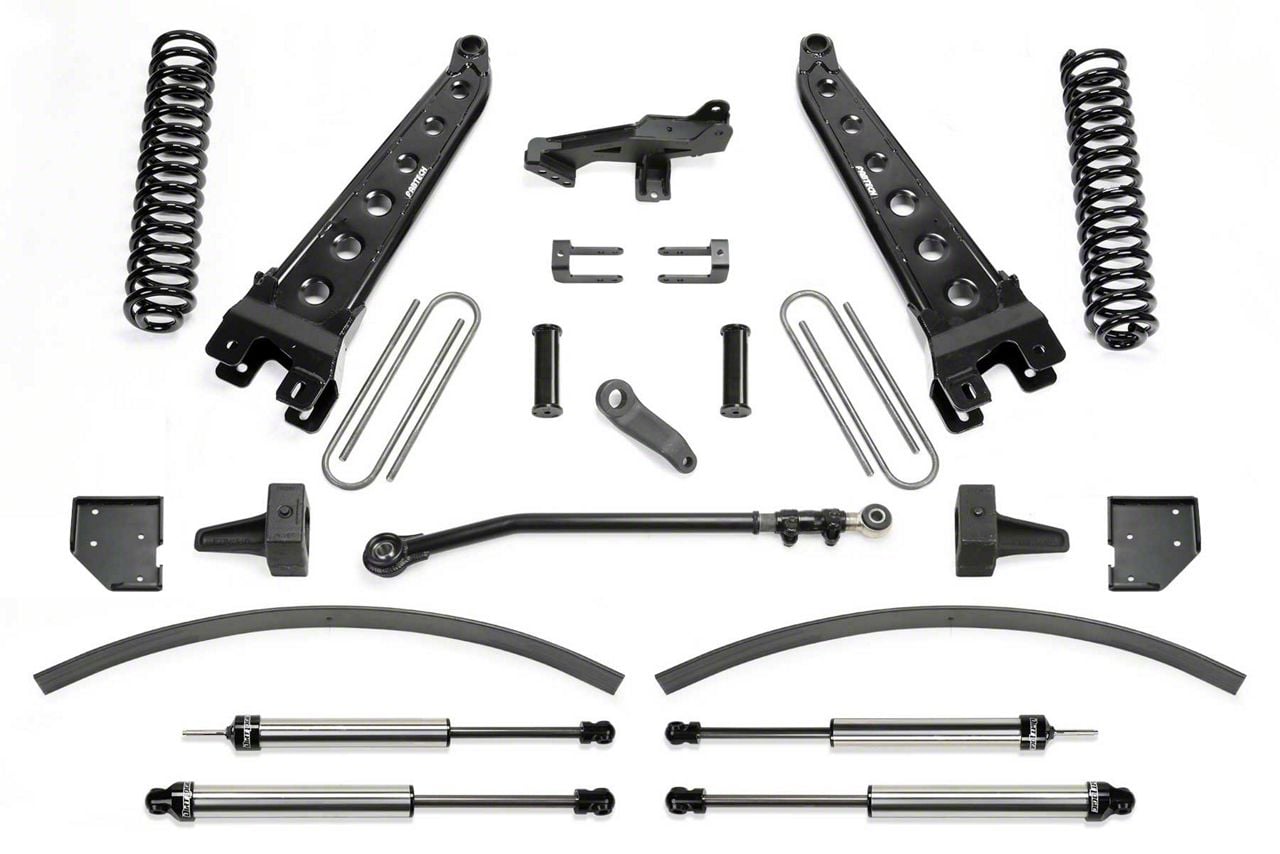

Installation & What's in the Box
Installation Info
What's in the Box
- (2) Front Shocks
- (2) Rear Shocks
- (1) Pitman Arm
- (2) Front Coil Springs
- (2) Bump Stop Extensions
- (2) Radius Arms, Driver and Passenger Side
- (2) Sway Bar Relocation Bracket, Driver and Passenger Side
- (2) Sway Bar Relocation Bracket, Axle Mount
- (1) Steering Stabilizer Bracket
- (1) Steering Stabilizer Clevis Mount
- (1) Track Bar
- (1) Track Bar Drop Bracket
- (1) Hardware Subassembly
- (2) Lift Blocks
- (4) U-Bolts
- Installation Hardware
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
10 More Questions
Will It Fit My F-250
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22
Not Compatible on Vehicles with Dual Rear (Dually) Wheels
