Fabtech 8-Inch Radius Arm Suspension Lift Kit with Dirt Logic 4.0 Coil-Overs and Dirt Logic Shocks (11-16 4WD F-250 Super Duty w/ Factory Overland Springs)
Item SD0564
$0.00
Our Price
$6,714.43 (kit)
FREE Shipping + $99.00 Oversized Item Fee Market Price $7,855.99 You Save 15% ($1,141.56) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Out of Stock
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Provides 8 Inches of Lift, Front and Rear
- Improves Ground Clearance for Better Off-Road Capabilities
- Rear Dirt Logic Shocks
- Front Dirt Logic Coilovers
- Add-A-Leaf Springs
- Rugged Front Radius Arms
- Rear Lift Blocks
- Enables Use of 37-Inch Wide Tires
- Professional Installation Recommended
- Limited Lifetime Warranty
- Fits All 2011-2016 Ford F-250 4WD Super Duty Models With Factory Overland Springs
| Brand | Fabtech |
| Lift Height | 8.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Go Off-Road With Confidence. Take your off-road adventures to the next level with the Fabtech 8-Inch Radius Arm Lift System With Dirt Logic 4.0 Coil-Overs and Dirt Logic Shocks. This suspension lift kit offers 8 inches of front and rear lift giving your F-250 Super Duty the capability to take on tougher off-road trails with confidence. Moreover, this lift kit allows you to install larger 37-inch wide tires for that bold off-road look.
Rear Dirt Logic Shocks. The Fabtech 8-Inch Radius Arm Lift System uses a pair of Dirt Logic 2.25 rear shocks. These shocks feature a 2.25-inch OD stainless steel body, 2.0-inch OD billet aluminum piston, and a 0.87-inch thick NitroSteel piston rod, for superior strength and durability. These shocks are tuned specifically for use with larger tires, offering superior dampening for an excellent ride quality both on and off-road.
Front Dirt Logic Coilovers. The Fabtech 8-Inch Radius Arm Lift System provides its front lift via 2 Dirt Logic coilovers. These coilover shocks are fully adjustable design, permitting you to get the right amount of dampening for the terrain you’re on. These coilovers feature a 4.0-inch OD stainless steel body, a 3.62-inch OD billet aluminum piston, and a 1.25-inch thick NitroSteel piston rod for maximum strength.
Add-A-Leaf Springs. The Fabtech 8-Inch Radius Arm Lift System comes with a pair of add-a-leaf springs. These springs are manufactured from high-grade steel for strength and both receive a heavy-duty, black, powder-coat finish for superior rust protection. Moreover, these add-a-leaf springs are designed to provide rear lift alongside the included lift blocks.
Strong Front Radius Arms. The Fabtech 8-Inch Radius Arm Lift System uses a pair super-strong front radius arms. These radius arms provide the correct front-to-rear positioning of the coil springs in relation to your truck’s axle. This helps maintain proper steering geometry and a superior driving feel. These radius arms are precision-manufactured from durable tubular steel and are strengthened by dimpled side plates.
Superior Rear Lift Blocks. The Fabtech 8-Inch Radius Arm Lift System uses lift blocks that work with the add-a-leaf springs to provide rear lift. These lift blocks feature a cast-iron alloy construction for maximum strength. Also, these lift blocks are finished in a black powder coating for added protection against rust.
No-Frills Install Procedure With Cutting and Drilling. You will need to perform some cutting and drilling when installing the Fabtech 8-Inch Radius Arm Lift Systems’ various components. The installation will also require several hours to a day. As such, an installation by a professional is recommended.
A Limited Lifetime Warranty Backing. The Fabtech 8-Inch Radius Arm Lift System is backed by a limited lifetime warranty coverage against factory defects. Please visit the manufacturer’s website for more details.
Application. The Fabtech 8-Inch Radius Arm Lift System With Dirt Logic 4.0 Coil-Overs and Dirt Logic Shocks fits all 2011-2016 Ford F-250 4WD Super Duty models with factory Overland springs.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2140DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

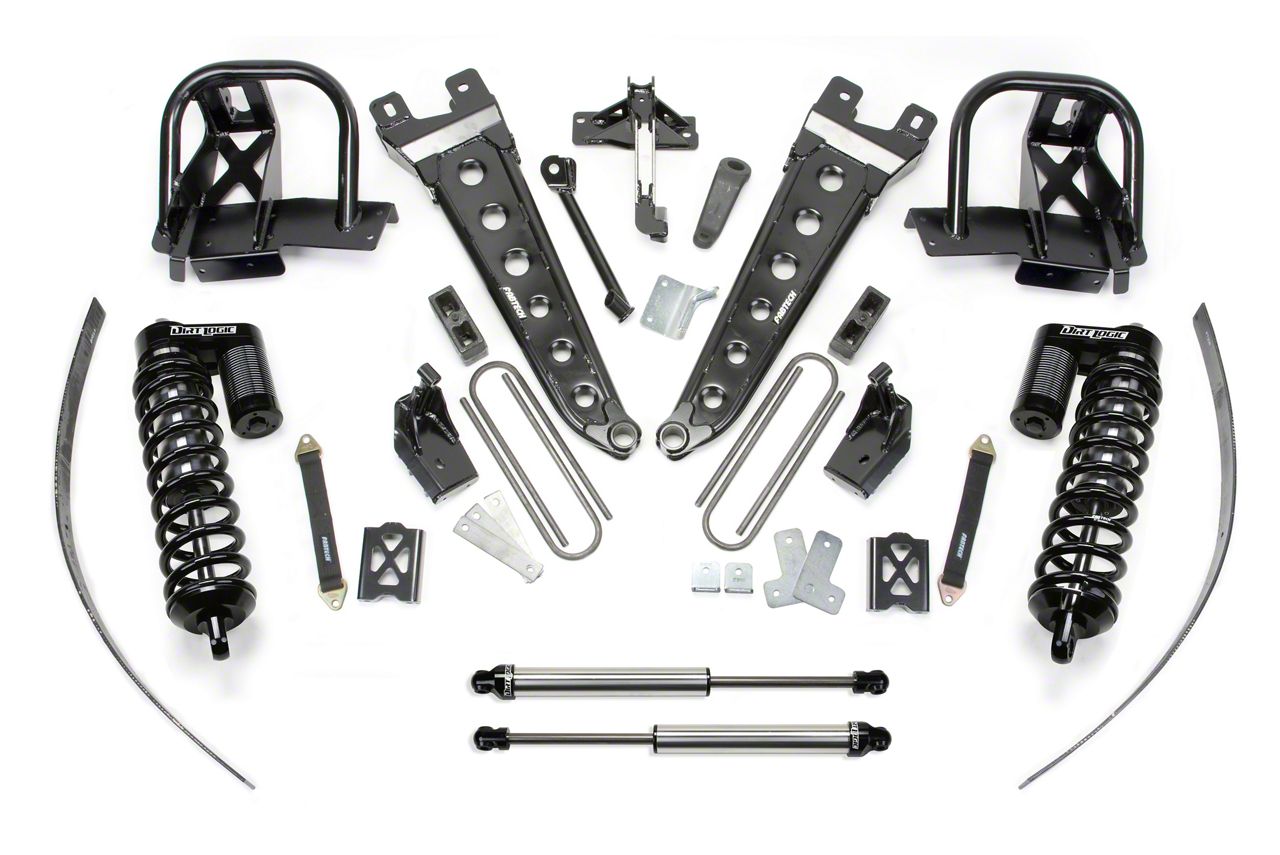

What's in the Box
- (2) Front Coilover Shocks
- (2) Coilover Mounts, Driver and Passenger Side
- (2) Rear Shocks
- (1) Pitman Arm
- (2) Front Bump Stops, Driver and Passenger Side
- (2) Radius Arms, Driver and Passenger Side
- (2) Sway Bar Drop, Driver and Passenger Side
- (2) Sway Bar Relocation Bracket, Axle Mount
- (1) Steering Stabilizer Bracket
- (1) Track Bar Drop Bracket
- (1) Track Bar Support Tube
- (1) Shim Kit
- (2) Limiting Straps
- (2) Add-A-Leaf Springs
- (2) Lift Blocks
- (3) Hardware Subassembly
- (4) U-Bolts
- Installation Hardware
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
10 More Questions
Will It Fit My F-250
- 6.2L V8 - 11, 12, 13, 14, 15, 16
- 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
