Fabtech 8-Inch Radius Arm Suspension Lift Kit with Dirt Logic 4.0 Coil-Overs and Dirt Logic Shocks (11-16 4WD F-250 Super Duty w/o Factory Overland Springs)
Item SD0563
$0.00
Our Price
$6,714.43 (kit)
FREE Shipping + $99.00 Oversized Item Fee Market Price $7,855.99 You Save 15% ($1,141.56) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Out of Stock
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Provides 8 Inches of Lift, Front and Rear
- Enhances Ground Clearance for Better Off-Road Capabilities
- Rear Dirt Logic Shocks
- Front Dirt Logic Coilovers
- Add-A-Leaf Springs
- Rugged Front Radius Arms
- Rear Lift Blocks
- Enables Use of 37-Inch Wide Tires
- Professional Installation Recommended
- Limited Lifetime Warranty
- Fits All 2011-2016 Ford F-250 4WD Super Duty Models Without Factory Overland Springs
| Brand | Fabtech |
| Lift Height | 8.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Face The Trails Head On. Face the toughest trails head-on with the Fabtech 8-Inch Radius Arm Lift System With Dirt Logic 4.0 Coil-Overs and Dirt Logic Shocks. This suspension lift kit comes with everything you need to transform your F-250 Super Duty into an off-roading monster, while maintaining excellent on-road driving manners. This lift kit provides 8 inches of overall lift, giving you enough clearance to mount those 37-inch wide wheels you’ve always wanted.
Rear Dirt Logic Shocks. The Fabtech 8-Inch Radius Arm Lift System comes with a pair of Dirt Logic 2.25 rear shocks. These shocks are built using a 2.25-inch OD stainless steel body, 2.0-inch OD billet aluminum piston, and a 0.87-inch thick NitroSteel piston rod, making them much stronger than stock. These shocks are tuned specifically for use with larger tires, providing excellent dampening both on and off-road. Additionally, these shocks use a use proprietary shock oil that performs better even through rapid cycling.
Front Dirt Logic Coilovers. For the front lift, the Fabtech 8-Inch Radius Arm Lift System uses a pair of Dirt Logic coilovers. These shocks feature a fully adjustable design, allowing you to dial-in the correct amount of dampening for any application. These coilovers are built using a 4.0-inch OD stainless steel body, a 3.62-inch OD billet aluminum piston, and a 1.25-inch thick NitroSteel piston rod for superior strength.
Add-A-Leaf Springs. The Fabtech 8-Inch Radius Arm Lift System includes a pair of add-a-leaf springs. These springs are fabricated from high-grade steel for strength and are finished in a durable, black powder coating for superior rust protection. Additionally, these add-a-leaf springs work with the included lift blocks to provide rear lift.
Rugged Front Radius Arms. The Fabtech 8-Inch Radius Arm Lift System uses a pair rugged front radius arms. These radius arms provide appropriate front to rear positioning of the coil springs in relation to your truck’s axle. This helps maintain correct steering geometry and an excellent driving feel. These radius arms are machine-crafted from heavy-duty tubular steel and come with dimpled side plates for added sturdiness.
High-Strength Rear Lift Blocks. The Fabtech 8-Inch Radius Arm Lift System comes with high-strength lift blocks. Together with the add-a-leaf springs, these cast-iron alloy lift blocks are responsible for lifting the rear. Additionally, these lift blocks are finished in a black powder coating for added protection against rust.
No-Frills Install Procedure With Cutting and Drilling. Installing the Fabtech 8-Inch Radius Arm Lift System With Dirt Logic 4.0 Coil-Overs and Dirt Logic Shocks will require cutting and drilling to properly fit certain components. The installation will also require several hours to a day. Consequently, professional installation is recommended.
Includes a Limited Lifetime Warranty Coverage. The Fabtech 8-Inch Radius Arm Lift System includes a limited lifetime warranty coverage against manufacturing defects. Please visit the manufacturer’s website for more details.
Application. The Fabtech 8-Inch Radius Arm Lift System With Dirt Logic 4.0 Coil-Overs and Dirt Logic Shocks fits all 2011-2016 Ford F-250 4WD Super Duty models without factory Overland springs.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2139DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

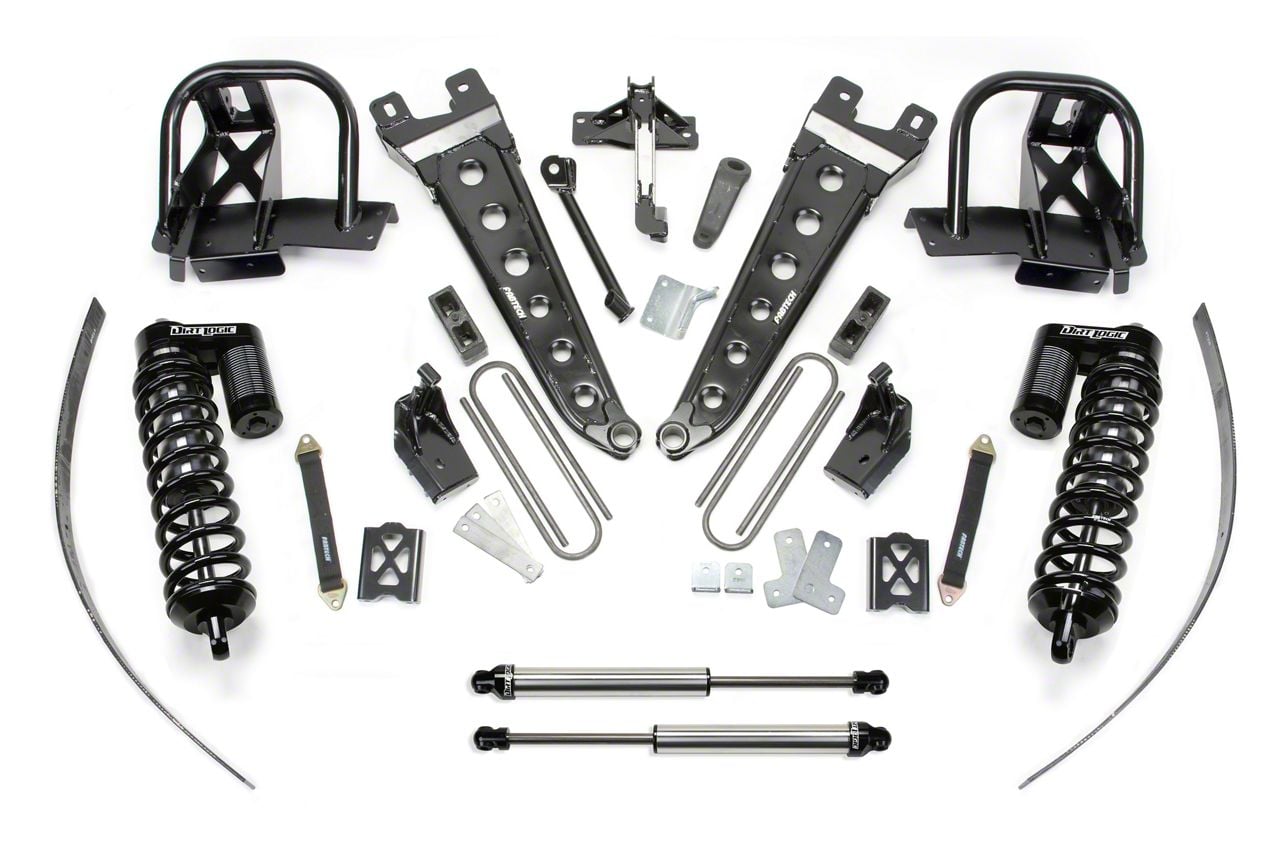

What's in the Box
- (2) Front Coilover Shocks
- (2) Coilover Mounts, Driver and Passenger Side
- (1) Pitman Arm
- (2) Front Bump Stops, Driver and Passenger Side
- (2) Radius Arms, Driver and Passenger Side
- (2) Sway Bar Drop, Driver and Passenger Side
- (2) Sway Bar Relocation Bracket, Axle Mount
- (2) Rear Shocks
- (1) Steering Stabilizer Bracket
- (1) Track Bar Drop Bracket
- (1) Track Bar Support Tube
- (1) Shim Kit
- (2) Limiting Straps
- (2) Add-A-Leaf Springs
- (2) Lift Blocks
- (3) Hardware Subassembly
- (4) U-Bolts
- Installation Hardware
