Installation Time
(approx) a Day
Difficulty Level:
Mechanical expertise or professional installation required.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a F-250 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Fabtech 8-Inch Radius Arm Suspension Lift Kit with Dirt Logic 4.0 Coil-Overs, Dirt Logic Shocks and Rear Leaf Springs (11-16 4WD F-250 Super Duty)
Item SD0565
$0.00
Our Price
$7,425.13 (kit)
FREE Shipping + $99.00 Oversized Item Fee Market Price $8,686.99 You Save 15% ($1,261.86) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Out of Stock
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Provides 8 Inches of Lift, Front and Rear
- Improves Ground Clearance for Better Off-Road Capabilities
- Rear Dirt Logic Shocks
- Front Dirt Logic Coilovers
- Durable Leaf Springs
- Brawny Front Radius Arms
- Rear Lift Blocks
- Accommodates 37-Inch Wide Tires
- Professional Installation Recommended
- Limited Lifetime Warranty
- Fits All 2011-2016 Ford F-250 4WD Super Duty Models
| Brand | Fabtech |
| Lift Height | 8.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Maximum Off-Road Capabilities. Now that you’re ready to take your off-road adventures to new heights, you need a suspension lift kit that can take the abuse of more aggressive off-roading. The Fabtech 8-Inch Radius Arm Lift System With Dirt Logic 4.0 Coil-Overs, Dirt Logic Shocks and Rear Leaf Springs is the perfect lift kit for this purpose. Each component of this lift kit is ruggedly built, from the front radius arms to the new leaf springs. Likewise, this lift kit will raise your truck by 8 inches, allowing you to install larger 37-inch tires for maximum performance and tough looks.
Rear Dirt Logic Shocks. The Fabtech 8-Inch Radius Arm Lift System includes a pair of Dirt Logic 2.25 shocks for the rear. These rear shocks are a definite upgrade over stock and feature a 2.25-inch OD stainless steel body, 2.0-inch OD billet aluminum piston, and a 0.87-inch thick NitroSteel piston rod. These shocks provide excellent dampening, both on and off-road and are designed for use with larger tires. Also, these shocks use a proprietary high-performance shock oil.
Front Dirt Logic Coilovers. For the front lift, the Fabtech 8-Inch Radius Arm Lift System comes with a pair of Dirt Logic coilovers. These shocks are a fully adjustable design, offering more customized dampening for the terrain you're traversing. These coilovers feature a 4.0-inch OD stainless steel body construction and use a 3.62-inch OD billet aluminum piston with a 1.25-inch thick NitroSteel piston rod for maximum strength.
Durable Leaf Springs. The Fabtech 8-Inch Radius Arm Lift System includes a pair of durable leaf springs that are designed to work with the included lift blocks to provide rear lift. These leaf springs are manufactured from high-grade steel for strength and feature a tough, black, powder-coat finish for exceptional rust protection.
Brawny Front Radius Arms. The Fabtech 8-Inch Radius Arm Lift System includes a pair brawny front radius arms. These radius arms are designed to properly position the coil springs to your axle, maintaining correct steering geometry. This results in a more natural driving feel for both on and off-road. These radius arms are constructed from high-grade tubular steel, and uses dimpled side plates for added sturdiness.
Superior Rear Lift Blocks. The other set of components responsible for Fabtech 8-Inch Radius Arm Lift System’s rear lift are a couple of lift blocks. These lift blocks are manufactured from cast-iron alloy for superior strength. Additionally, these lift blocks are finished in a black powder coating for added protection against rust.
No-Nonsense Install Procedure With Cutting and Drilling. Some cutting and drilling are necessary to properly fit certain components of the Fabtech 8-Inch Radius Arm Lift System. The installation will also require several hours to a day. If you’re not familiar with this type of procedure, professional installation is always an option.
Backed by a Limited Lifetime Warranty. The Fabtech 8-Inch Radius Arm Lift System is backed by a limited lifetime warranty covering workmanship defects. Please visit the manufacturer’s website for more details.
Application. The Fabtech 8-Inch Radius Arm Lift System With Dirt Logic 4.0 Coil-Overs, Dirt Logic Shocks and Rear Leaf Springs fits all 2011-2016 Ford F-250 4WD Super Duty models.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2143DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

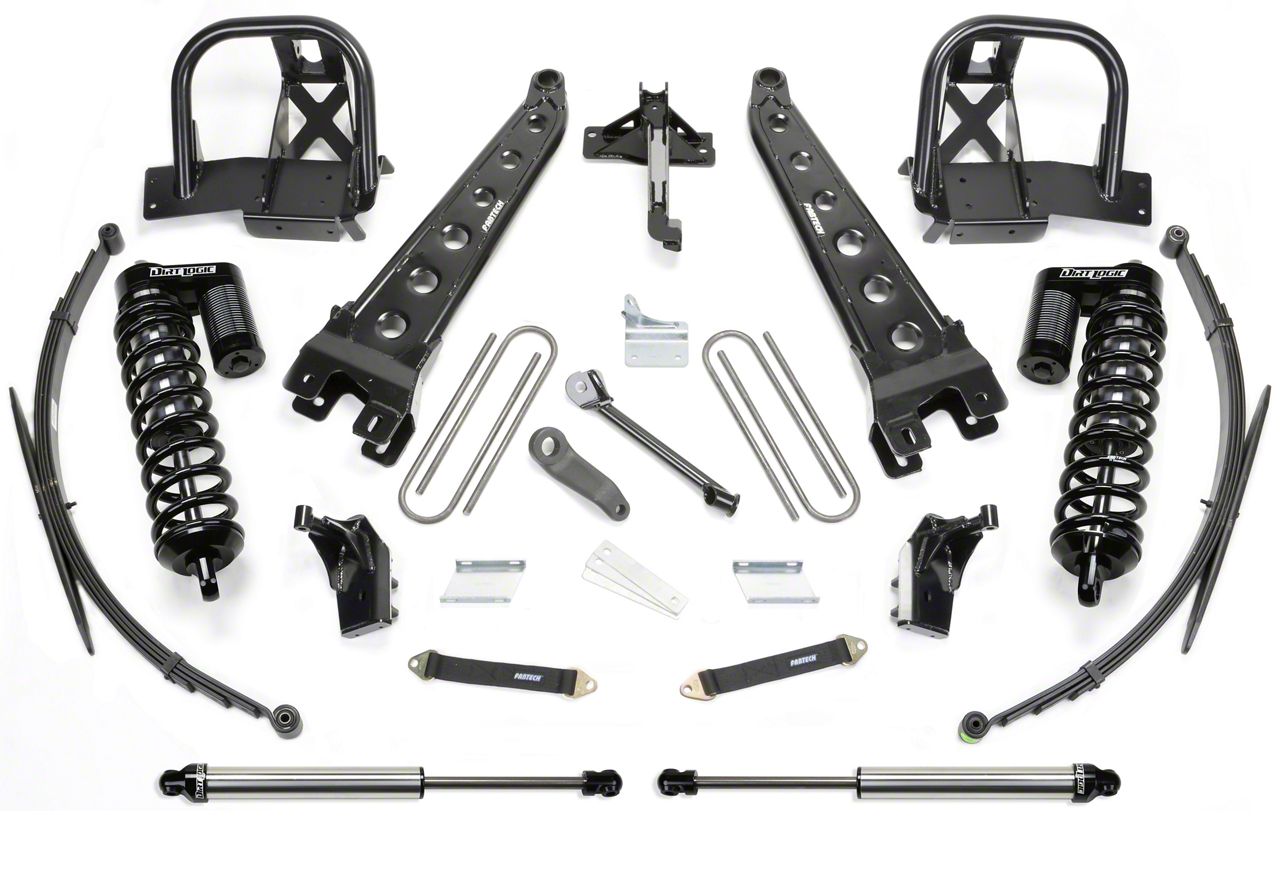

What's in the Box
- (1) Pitman Arm
- (2) Front Bump Stops, Driver and Passenger Side
- (2) Radius Arms, Driver and Passenger Side
- (2) Sway Bar Drop, Driver and Passenger Side
- (2) Sway Bar Relocation Bracket, Axle Mount
- (2) Front Coilover Shocks
- (2) Coilover Mounts, Driver and Passenger Side
- (2) Rear Shocks
- (1) Steering Stabilizer Bracket
- (1) Track Bar Drop Bracket
- (1) Track Bar Support Tube
- (1) Shim Kit
- (2) Limiting Straps
- (2) Add-A-Leaf Springs
- (2) Lift Blocks
- (3) Hardware Subassembly
- (4) U-Bolts
- Installation Hardware
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
10 More Questions
Will It Fit My F-250
- 6.2L V8 - 11, 12, 13, 14, 15, 16
- 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
