Fabtech 6-Inch Radius Arm Suspension Lift Kit with Stealth Shocks (17-22 4WD 6.2L F-250 Super Duty)
Item SD0534
$0.00
Our Price
$2,465.11 (kit)
FREE Shipping + $99.00 Oversized Item Fee Market Price $2,883.99 You Save 15% ($418.88) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Delivers 6-Inches of Lift
- Improves Stance and Ground Clearance
- Kit Includes Trac Bar Relocation Bracket, Pitman Arm, and Sway Bar Drops
- Fabtech Patented Radius Arms
- Fabtech Stealth Shocks
- Lift Coil Springs
- Rear Lift Blocks and U-Bolts
- Accommodates Up to 37-Inch Tires
- Cutting and Grinding Required
- Front Drive Shaft Modifications May be Required To Clear Exhaust
- Limited Lifetime Warranty
- Will Not Fit Diesel Motors
- Fits Non Dually Models Only
- Fits 2017-2022 4WD 6.2L Ford Super Duty F-250 Models
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Engineered for Superior Ride. Installing the Fabtech 6-Inch Radius Arm Lift System with Stealth Shocks delivers a superior ride for your Super Duty in addition to providing clearance for larger tires. This kit is also designed and built for excellent control and comfort. And if you’re going through rugged types of terrain, you have the confidence that this lift kit can take a beating.
Fabtech Tubular Radius Arms. Fabtech’s patented Radius Arms have a very effective tubular design and is reinforced with a side plate for extra strength and toughness. Additionally, an adjustable alignment cam at the axle provides caster adjustments for fine tuning of performance.
Mono Tube Stealth Shocks. These Stealth Shocks are designed to provide excellent ride control, especially when used with larger tires. They feature application-specific, high-velocity valving that’s tuned for use with oversized tires. Moreover, a full floating piston prevents shock fade in off-road conditions.
Fabtech Lift Coil Springs. These coil springs are specially engineered by Fabtech for a precise fit and great performance for your vehicle. They’re also made from high-grade materials to ensure durability and long service life.
Fabtech Rear Blocks. To ensure proper lift and support for the Super Duty, the kit includes Fabtech’s application-specific rear blocks. These blocks are precision-machined from high-quality materials to withstand the demands of off-road use.
Some Modification Required. No welding is required to complete the whole process. However, vehicles with 2-piece driveshaft will require Fabtech’s driveshaft shim kit – sold separately. Additionally, vehicles equipped with the factory rear sway bars must separately purchase an extended sway bar link kit.
Backed by Limited Lifetime Warranty. The Fabtech 6-Inch Radius Arm Lift System is warrantied against defects in materials or workmanship for as long as the original retail owner owns the vehicle on which the kit was originally installed. Exclusions will apply.
Application. This Fabtech 6-Inch Radius Arm Lift System with Stealth Shocks is designed to fit 2017-2022 4WD 6.2L Ford Super Duty F-250 models. It will only fit non-dually models and vehicles with gasoline motors.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2256M
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

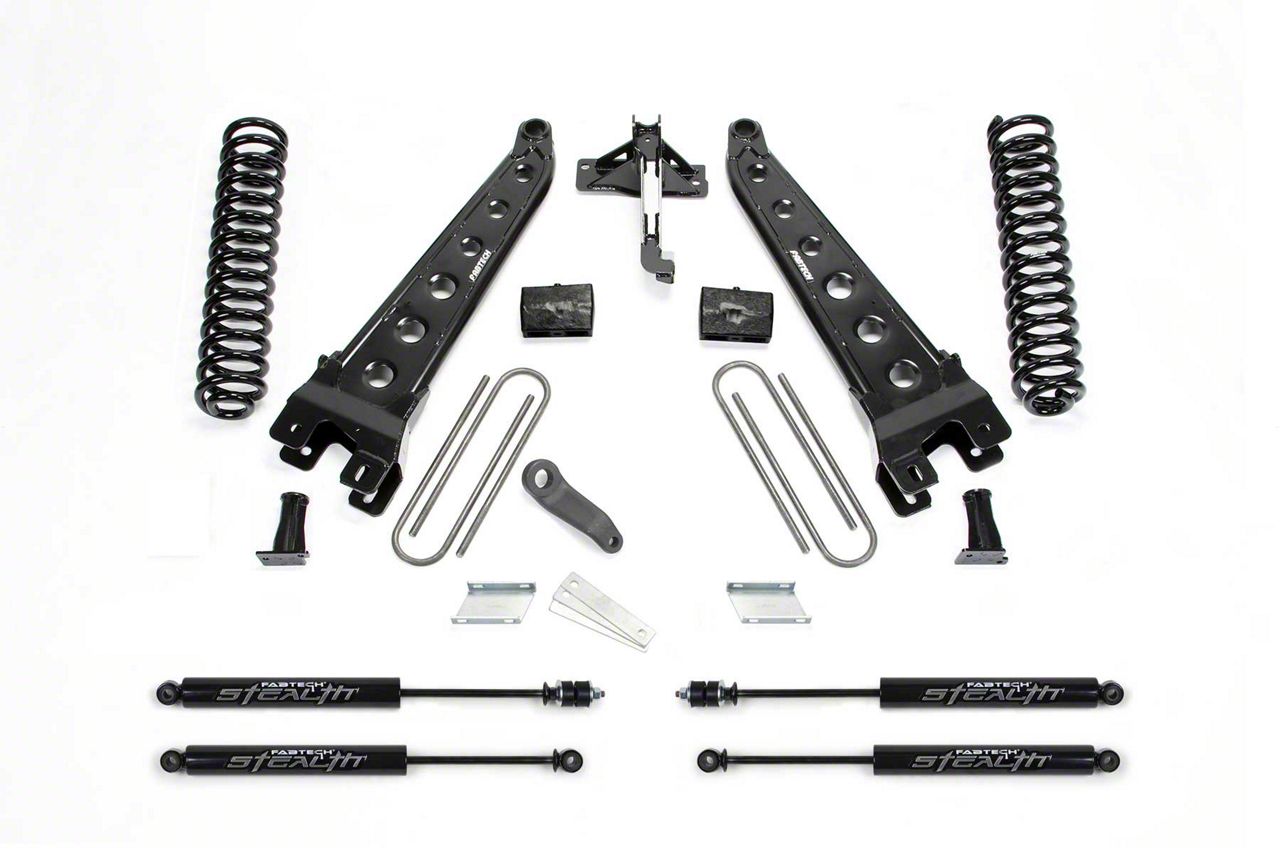

Installation & What's in the Box
Installation Info
What's in the Box
- (2) Front Stealth Shocks
- (2) Rear Stealth Shocks
- (1) Coil Box Kit
- (1) Rear Block Kit
- (1) Component Box
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
10 More Questions
Will It Fit My F-250
- 6.2L V8 - 17, 18, 19, 20, 21, 22
Not Compatible on Vehicles with Dual Rear (Dually) Wheels
