Installation Time
(approx) 5 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
FREE 1 to 3-Day Delivery on Orders $119+ Details
Talk to a F-250 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P

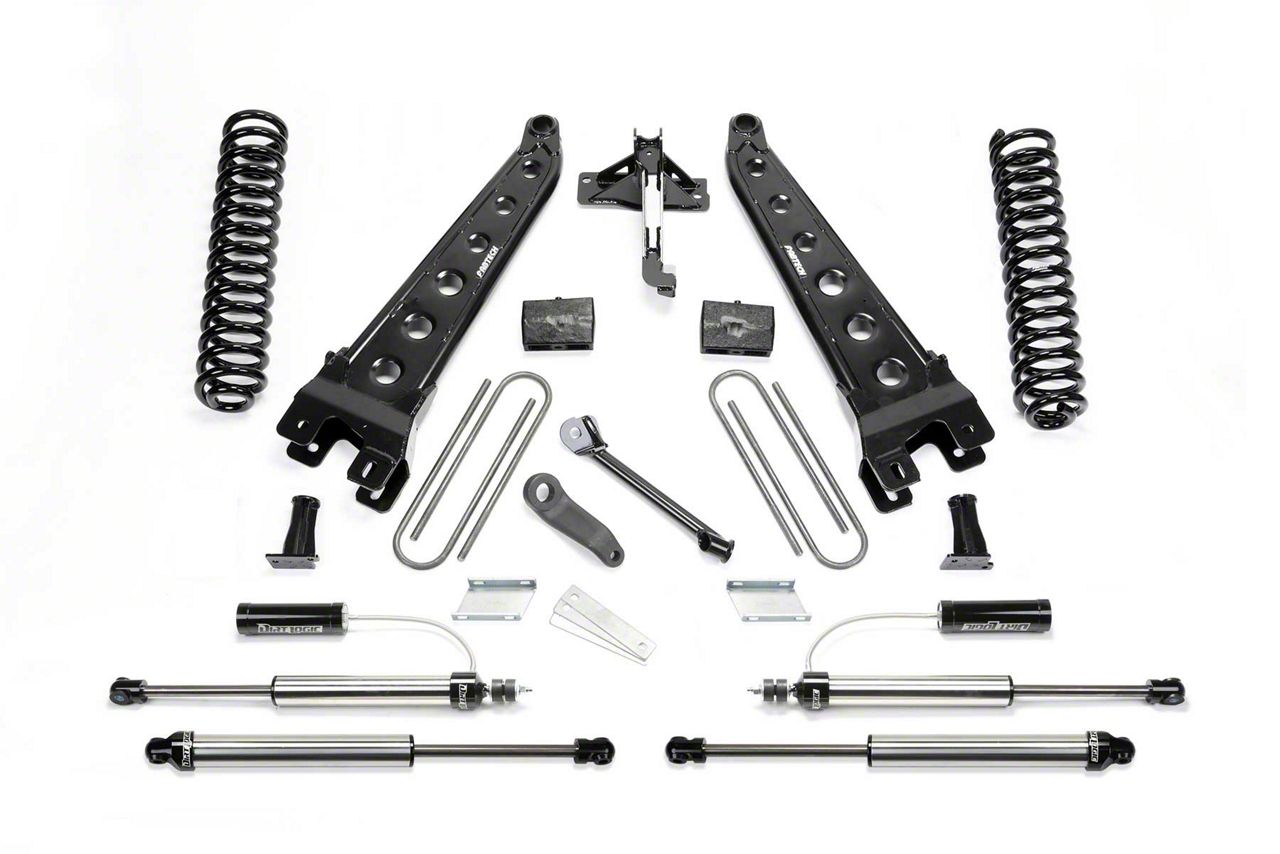

Fabtech 6-Inch Radius Arm Suspension Lift Kit with Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks (17-22 4WD 6.2L F-250 Super Duty)
Item SD0528
$0.00
Our Price
$3,644.01 (kit)
FREE Shipping + $99.00 Oversized Item Fee Market Price $4,262.99 You Save 15% ($618.98) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Radius Arm Lift System With Front and Rear Lift Height of 6 Inches
- Designed for Improving Off-Road Performance
- Ensures a Comfortable Ride Experience
- Front Dirt Logic 2.25 Reservoir Shocks
- Rear Dirt Logic 2.25 Shocks
- Front Coil Springs
- Fabtech Replacement Radius Arms
- Rear Lift Blocks With U-Bolt Kit
- Track Bar Relocation Bracket
- Sway Bar Drop Brackets
- Comes With a Dropped Pitman Arm
- Accommodates Up to 37-Inch Tires With Minor Trimming
- Tire Backspacing of Up to 5 Inches
- Direct, No-Weld Installation
- Comes With a Limited Lifetime Warranty
- Fits 2017-2022 4WD Ford Super Duty F-250s With 6.2L Engines
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Improves Overall Off-Roading Performance. This Fabtech 6-Inch Radius Arm Lift System with Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks is designed for improving your Super Duty's off-road capabilities without sacrificing street performance and comfort. The 6-inch lift height ensures a smooth ride quality, both on and off the road and also creates the space needed for up to 37-inch tires. Additional parts included in this kit are adjustable radius arms for enhanced steering control, and sway bar drop brackets to reduce body roll and enhance overall stability.
Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks. The front and rear Dirt Logic shocks that come with this radius arm lift system have a more robust construction. The 2.25-inch stainless steel body and 2-inch aluminum pistons (both outer diameter) are specially tuned for full-size vehicles and large tires, ensuring top-notch all-around damping with very little shock fade.
Front Coil Springs. These front coils springs lift your truck a maximum of 6 inches. They also provide an additional 2 inches of wheel travel with the help of the shocks for ultimate ride comfort. These springs are made from high-quality, hot-wound coils and are guaranteed to maintain their lift height even through years of use.
Fabtech Replacement Radius Arms. Replacing the radius arms of your truck with these Fabtech radius arms will help counter any issues with steering caused by the increase in ground clearance. In particular, these full tubular radius arms with dimple-die side plates have an adjustable alignment camber at the axle. This means you can adjust the caster angle to fine-tune steering response just the way you like.
Rear Lift Blocks With U-Bolt Kit. With the tapered structure of these rear blocks, not only do you get added rear ground clearance, but you also improve your truck’s driveability. That’s because the design helps reduce the driveshaft angle. The U-bolt kit, meanwhile, adds extra support and ensures a secure fit.
Track Bar Relocation Bracket. This Fabtech lift system includes a track bar relocation bracket, which ensures that the frame is always aligned with the suspension. With properly centered components, you eliminate any unnecessary vibrations and friction that can cause unsteadiness in driving and prematurely wear down the suspension parts.
Sway Bar Drop Brackets. Excessive body roll, especially when making turns and taking corners, is a common issue when you increase your vehicle’s ground clearance. These sway bar drop brackets help address that problem, keeping your truck stable and steady whether you’re driving fast or slow.
Straightforward Installation. Fabtech engineered this radius arm lift system for direct, no-weld installation onto your truck. Note that some drilling is still required. Installing all components takes about 5 hours. Afterward, it’s recommended to have the nuts, bolts, and lugs re-torqued after 50 miles, and then regularly re-torque these components after the initial session.
Backed by a Limited Lifetime Warranty. Fabtech lift systems all come with a limited lifetime warranty, which covers material and workmanship defects on all the parts.
Application. This Fabtech 6-Inch Radius Arm Lift System With Front Dirt Logic 2.25 Reservoir Shocks and Rear Dirt Logic Shocks fits 2017-2022 4WD models of the Ford Super Duty F-250 with 6.2L engines.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2295DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (2) Front Dirt Logic Reservoir Shocks
- (2) Rear Dirt Logic Shocks
- (2) Coil Springs
- (2) Fabtech Replacement Radius Arms
- (1) Front Bump Stop Brackets Kit
- (1) Brake Line Brackets Kit
- (1) Rear Lift Block Kit With U-Bolts
- (1) Rear Add-a-Lift Kit
- (1) Track Bar Relocation Bracket
- (1) Sway Bar Drop Bracket Kit
- (1) Dropped Pitman Arm
- (1) Component Box
- Mounting Hardware
- Installation Instructions
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
10 More Questions
Will It Fit My F-250
- 6.2L V8 - 17, 18, 19, 20, 21, 22
Not Compatible on Vehicles with Dual Rear (Dually) Wheels
