Fabtech 6-Inch Radius Arm Suspension Lift Kit with Dirt Logic 4.0 Reservoir Coil-Overs and Dirt Logic Shocks (11-16 4WD F-250 Super Duty)
Item SD0523
$0.00
Our Price
$5,513.69 (kit)
FREE Shipping + $99.00 Oversized Item Fee Market Price $6,450.99 You Save 15% ($937.30) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Out of Stock
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Radius Arm Lift System With 6-Inch Lift Height in the Front and Rear
- Boosts Overall Off-Roading Performance
- Smoothens Ride Quality
- Front Dirt Logic 4.0 Reservoir Coil-Overs
- Rear Dirt Logic 2.25 Shocks
- Fabtech Replacement Radius Arms
- Rear Lift Blocks With U-Bolt Kit
- Track Bar Relocation Bracket
- Sway Bar Drop Brackets
- Includes a Pitman Arm
- Accommodates a Max Tire Size of 35 x 12.50 Inches With Minor Trimming
- Maximum of 5 Inches of Tire Backspacing
- No-Weld Installation
- Covered by a Limited Lifetime Warranty
- Compatible With 2011-2016 4WD Ford F-250 Super Duty Models
| Brand | Fabtech |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Radius Arm Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Off-Roading Performance That’s Kicked Up a Notch. Install this Fabtech 6-Inch Radius Arm Lift System with Dirt Logic 4.0 Reservoir Coil-Overs and Dirt Logic Shocks on your Super Duty, and experience a marked improvement in off-road performance. The added ground clearance also gives you a smoother, more comfortable ride experience both in the city and out on the trails. Apart from these, you’ll also have the space to accommodate larger tires and wheels. Other significant components of this lift kit include, replacement radius arms for better steering response and a track bar relocation bracket and sway bar drop brackets for stability and handling.
Front Dirt Logic 4.0 Reservoir Coil-Overs and Rear Dirt Logic Shocks. With the front Dirt Logic 4.0 reservoir coil-overs that come with this kit, you’ll experience top-notch off-road damping with hardly any shock fade. Whether you’re driving on the streets or on the trails, you’ll experience ultimate drive comfort. The rear shocks are similarly designed for full-size vehicles with large tires, so you can get the best all-around damping for your truck.
Fabtech Replacement Radius Arms. The replacement radius arms that Fabtech included in this lift system allow you to adjust the caster angle so you can fine-tune the steering response. This means you’ll get a customized handling experience for ultimate driving comfort. In addition, these radius arms are constructed with a full tubular structure and dimple-die side plates for added toughness against off-roading abuse.
Rear Lift Blocks With U-Bolt Kit. This radius arm lift kit comes with a set of rear lift blocks with a U-bolt kit to help you achieve a 6-inch increase in rear ground clearance. Apart from a more balanced stance, these tapered rear lift blocks also make your truck more driveable by reducing the driveshaft angle.
Track Bar Relocation Bracket. With this Fabtech radius arm lift system, you don’t have to worry about the "death wobble" that plagues lifted vehicles. That’s because this kit comes with a track bar relocation bracket that ensures proper alignment of your suspension and axle for guaranteed stability. Less wobbling also means a longer lifespan for your suspension.
Sway Bar Drop Brackets. To eliminate body roll when cornering and turning, this lift system also comes with a set of sway bar drop brackets. Besides a more stable and balanced drive, you will also notice improvements in your vehicle’s handling and low-speed articulation.
Straightforward Installation. Fabtech designed this radius arm lift system for a straightforward, no-weld installation that requires only minor drilling. It can take about 3 hours to completely install all the components of this kit. It’s also recommended to have the nuts, bolts, and lugs re-torqued after 50 miles, and the re-torqued regularly afterward to ensure safety and optimum performance.
Comes With a Limited Lifetime Warranty. All Fabtech lift systems come with a limited lifetime warranty, which covers defects on construction and materials.
Application. This Fabtech 6-Inch Radius Arm Lift System With Dirt Logic 4.0 Reservoir Coil-Overs and Dirt Logic Shocks fits 2011-2016 models of the 4WD Ford F-250 Super Duty.
Shop All 6 to 8 Inch Truck Lift Kits
Shop All Truck Parts And Accessories
Shop All Truck Lift Kits
Fitment:
DetailsFabtech K2270DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

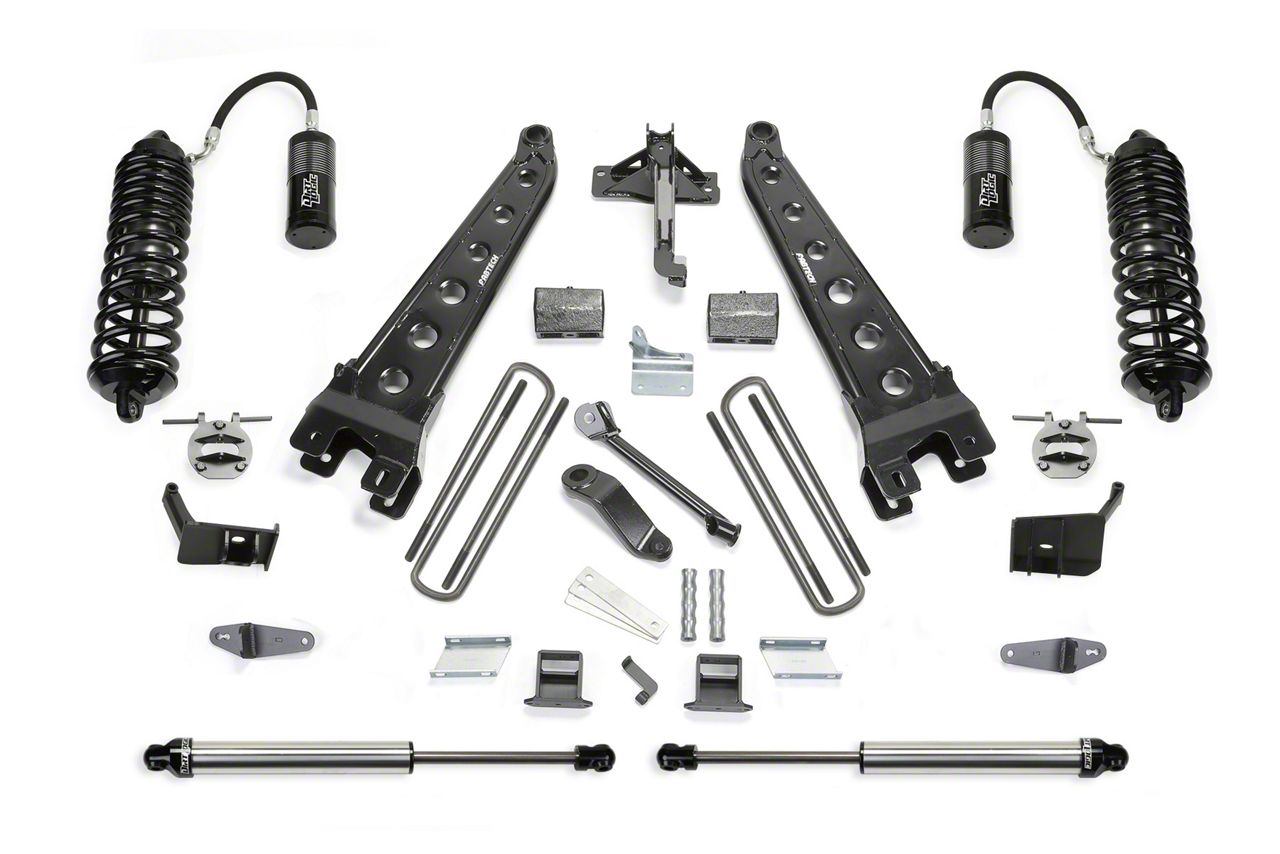

What's in the Box
- (2) Front Dirt Logic 4.0 Reservoir Coil-Overs
- (2) Rear Dirt Logic Shocks
- (2) Fabtech Replacement Radius Arms
- (1) Rear Lift Block Kit With U-Bolts
- (1) Track Bar Relocation Bracket
- (1) Sway Bar Drop Bracket Kit
- (1) Pitman Arm
- (1) Component Box 1
- Mounting Hardware
- Installation Instructions
4.7
Reviews of Fabtech Suspension Products (47)
Reviews of Fabtech Suspension products have an average rating of 4.7 out of 5
Questions & Answers
10 More Questions
Will It Fit My F-250
- 6.2L V8 - 11, 12, 13, 14, 15, 16
- 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
