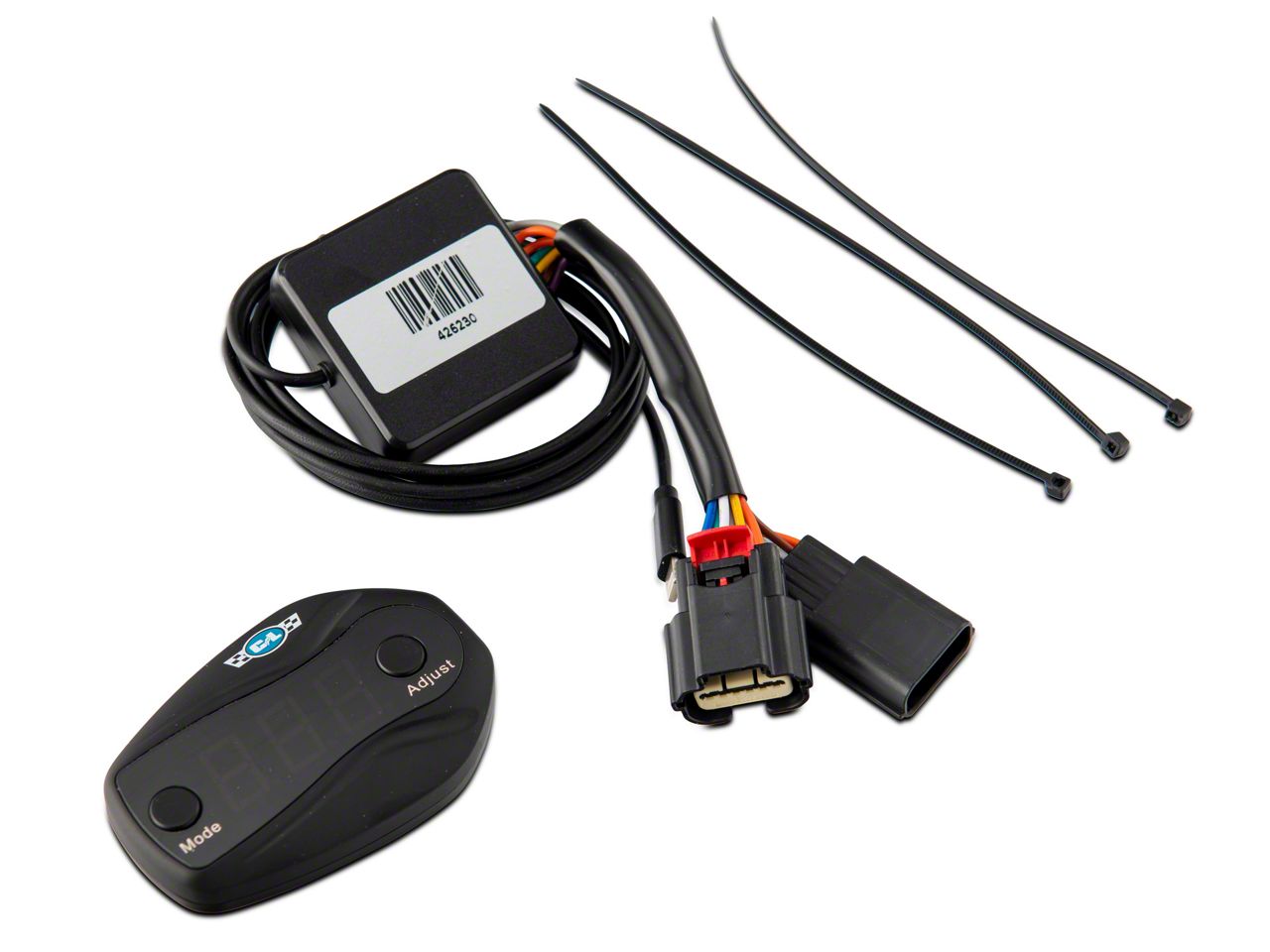

C&L Black Edition Throttle Controller (11-20 F-150)

Item T570770
Product Image
Verify parts fit and get product recommendations.
F-150 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$99.99

FREE Shipping on orders over $119 Market Price $110.99 You Save 10% ($11.00) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Videos

      Meridith: If you've noticed a lack in throttle response and want to gain some of that back without having to tune or modify your PCM, the C&L Black Edition Throttle Controller will be a great addition to your 2011- 2020 F-150. Now this will be a super affordable way to reduce or modify the delay from when your foot needs to pedal to when your throttle body opens. Now because the F-150 has an electronic throttle body you've probably felt the delay especially if you've added any heavy armor or larger wheels and tires. Now this will gain it back while incorporating other features that will benefit you when it comes to fuel economy and security if those are also a higher priority for your truck.Now, this controller will feature multiple different modes including eco, comfort, sport, race, normal, anti-skid, intelligent modes and anti-theft modes. In then each of those settings you'll be able to modify the sensitivity perfect for the truck owner who's looking to find tuner throttle response on the fly. H1 will be a comfort mode which balances performance and fuel economy. H2 will be sport. This improves your engine response for a better performance during daily commuting. H3 will be race. This will offer maximum performance for immediate throttle response.EC which is displayed on the screen here will be for economy or your fuel efficiency setting designed specifically for fuel savings. Now NOR is normal and the acceleration is set back to the factory defaults. SNO is your anti-skid which will be suitable for slippery conditions and reduces the tire spin by delaying throttle response at initial acceleration.OOO is intelligent mode and this matches the acceleration according to normal driving habits. LOC is gonna be your anti-theft mode which will give you that security that you want out of the system and it's going to eliminate the ability to drive and the throttle pedal will have no response. This will come with a very low profile in sleek device and the black edition will offer a super stealthy look compared to the standard white controller.Now here is where you can modify your responsiveness on the fly while also being incredibly user-friendly in design. This will have a small screen with two buttons to change the mode and adjust the settings. The cable will also come with a plug-and-play wiring harness making it super easy to switch up your throttle response for the plug-and-play system. I would like to mention though this is not gonna be a tuner, this will only be changing your throttle response and no other parameters that you would when tuning your F-150.Now this will cost you roughly $150 making this one of the more affordable choices in the category for a throttle controller. Other options would usually be set up a little bit differently when it comes to the settings as well as the device itself. You'll see options with Bluetooth compatibility, over 20 different settings, options with sensitivity dials or preset settings and you'll even have choices that you'll have to switch manually instead of having a device.And not to mention again there is an option for the standard white device but it is still going to be the same when it comes down to the settings and everything that's included as far as the features. I personally think that this is a great choice considering all the different options, the adjustability, and the build of the device itself making it well worth the 150 bucks.Now this will be a 1/3 wrenches on the difficult meter taking you about 20 minutes to get the job done. Now at this point we can head over to the shop and check out a detailed breakdown of the install so it's gonna wrap it up for me, let's go ahead and get into it.Man: The tools you need for this project is some rubbing alcohol and a clean cloth. Hi, everyone. Today we're installing a throttle controller on our F-150 so let's get started. So the first thing we wanna do is disconnect our throttle connector which is right here. To do this, we're gonna lift up on the red tab to unlock it and then we'll push in on the release tab and pull straight up on the connector. Now we gotta disconnect it, we can go in and hook up our throttle controller in place of this connector here.Now you can see our throttle controller has two plugs, a male connector and a female connector. The male connector is gonna connect to the plug that we just pulled out and we're just gonna go ahead and plug that into this side. There we go. Once you've got that plugged in and it snaps in you can go ahead and press down on the red locking tab. Now we can connect our second connector which also has a red locking tab on it back to the throttle pedal.Once you hear that snap into place, go ahead and push down on the red locking tab and now everything is connected. The next thing we need to do is run our cable up behind the dash. We're gonna mount it on top of the dash here so we've got easy access to it in order to change our settings.Now we're gonna run our cable behind this lower dash panel here and it's gonna come out right on this side here of this steering column. So once we've got that pulled out, now we can go ahead and hook up the actual control panel for the throttle controller. For our purposes, we're just gonna go ahead and mount our control panel right here on the top of this stream panel here on the lower dash. You can mount it of course anywhere that you feel comfortable with it, but before we do that we're gonna need a little alcohol in a clean cloth and just wipe down that area and make sure there's no residue from any kind of cleaning materials or grease or oil or anything like that on there.So once you've got that cleaned off give it a second to dry up and then we'll take our control panel and plug it into the cable that we just ran, remove the red backing material off the back of the control panel and go ahead and put it into place. Now you wanna make sure that you leave enough room for the end of this cable not to interfere with the steering column, feel it as a little bit of a tight fit.Once you've got that in we can go ahead and test it out, make sure everything functions way it should. Now once you're in H1, H2, H3, or EC mode, if you do a long press and hold on the mode button, you'll see that it comes up with a setting that says AAA and that's because our truck is an automatic vehicle. As you can see there, this is telling us it's automatic.If you have a manual transmission vehicle, you can press and hold the adjust button here and it will change from AAA to SSS which means stick. Ours will not do that because we do have an automatic transmission so we'll just press and hold it and get back to our regular mode.And that wraps up our review and install of the C&L Black Edition Throttle Controller for the 2011-2020 F-150. Thanks for watching and remember, for all things F-150, keep it right here at americantrucks.com.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • Eliminates Drive-By-Wire Pedal Delay
      • Enhances Vehicle Acceleration
      • Comfort, Sport, Race, ECO, Normal, Anti-Skid, Intelligent and Anti-Theft Modes
      • Nine Positions of Sensitivity Adjustment
      • Easy Plug-and-Play Installation
      • Black Edition - Black Case
      • Fits 2011-2020 Ford F-150 Models

      Description

      Improve Throttle Response. Eliminate your F-150's sluggish throttle response with a C&L Black Edition Throttle Controller. All modern vehicles use a drive-by-wire system that controls the throttle body electronically, similar to a dimmer switch. While innovative, this design causes an irritating delay that is most noticeable when trying to speed up to merge with fast moving traffic or when passing a slower moving car. The C&L Black Edition Throttle Controller actually boost this signal to eliminate the delay for quicker, snappier throttle response, making it a must have for all drive-by-wire vehicles.

      Black Edition. C&L's Black Edition Throttle Controller features all the same features as their standard Throttle Controller just in a stealthy black case. The black housing allows it to blend in with your F-150's factory interior for a cleaner appearance.

      Eight Modes.
      The C&L Black Edition Throttle Controller comes with (8) preset control modes for Comfort, Sport, Race, ECO, Normal, Anti-Skid, Intelligent, and Anti-Theft applications. Each mode can further be adjusted with nine levels of sensitivity. This allows you to select the mode that works the best for your own personal driving style and needs.

      • H1 - Comfort. Balances performance and fuel economy.
      • H2 - Sport. Improves engine response for better performance during daily commuting.
      • H3 - Race. Maximum performance with immediate throttle response.
      • EC - Fuel-Efficient. Designed for fuel economy.
      • NOR - Normal. Acceleration is set to factory defaults.
      • SNO - Anti-Skid. Suitable for slippery conditions. Reduces tire spin by delaying the throttle response at initial acceleration.
      • OOO - Intelligent. Matches the acceleration automatically according to normal driving habits.
      • LOC - Anti-Theft. Throttle pedal will have no response.

      Easy Plug & Play Installation. The C&L Black Edition Throttle Controller connects directly into the stock throttle position sensor found on the drive-by-wire gas pedal using an OEM style plug and play connector with no permanent modifications required. The Throttle Controller is 100% reversible and will not leave residual codes on the factory PCM making it warranty friendly.

      Application. This C&L Black Edition Throttle Controller is designed for use on 2011-2020 Ford F-150 models.

      Fitment:

      C&L 426230

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Throttle Controller
