(approx) 1 Hour
Simple installation for anyone.
$68.99 (each)FREE Shipping on orders over $119 Market Price $76.99 You Save 10% ($8.00)

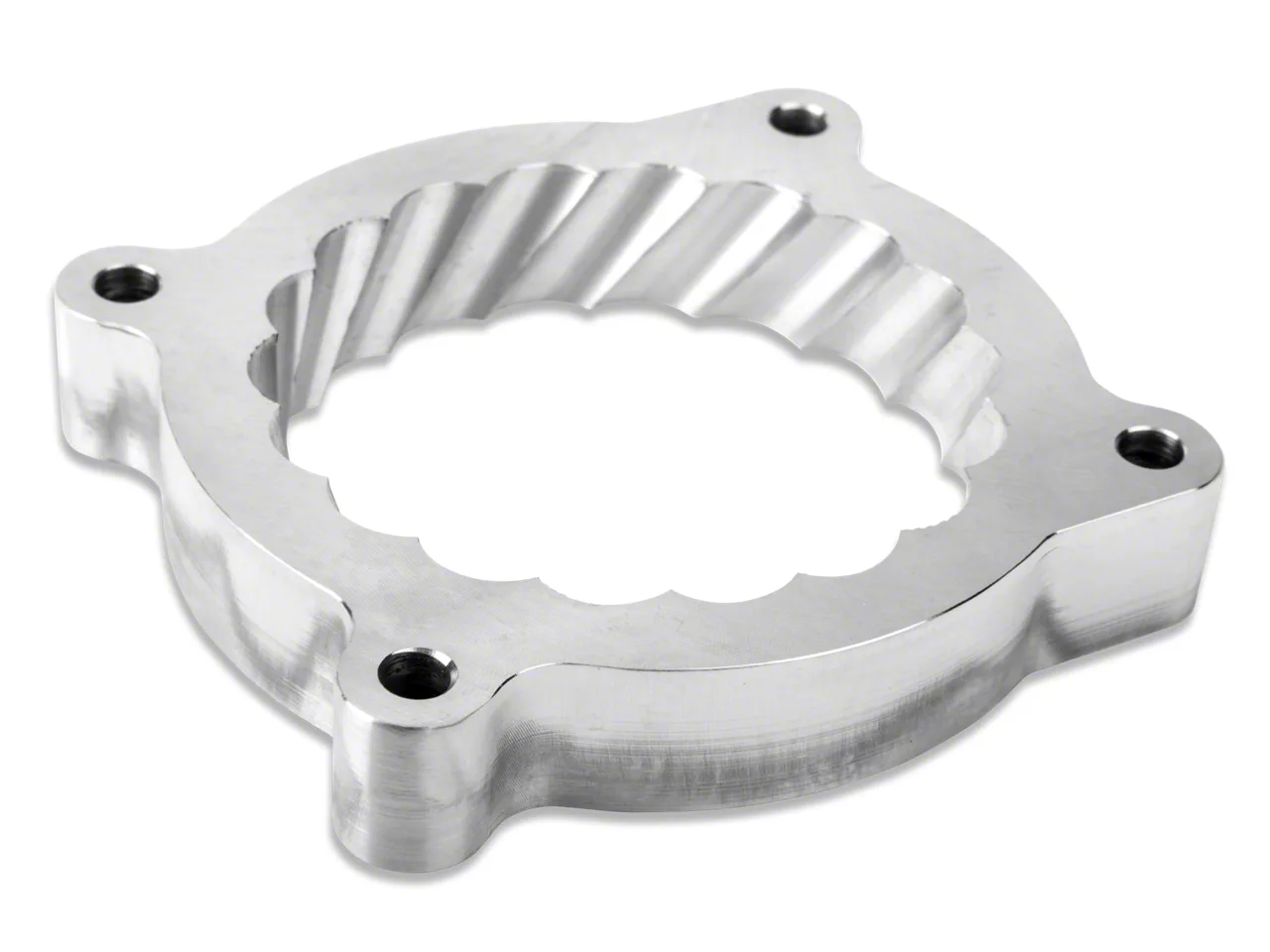

Hey, guys, Adam here with americantrucks.com, and today we're taking a quick look at and of course installing the SR Performance Throttle Body Spacer, available for the '11 and newer 5-liter F-150. You should be checking this out if you're looking for an extremely easy-to-use, affordable part that's gonna help improve engine performance and efficiency along with fuel mileage and it's also gonna give you a cleaner combustion and better help with atomization of air-fuel ratio. This is a very simple part that's made of a CNC-machined billet aluminum. It's also got the spiral bore design, which is very unique to the throttle body spacer. This guy's basically going to install between your factory throttle body, not an aftermarket one, and your manifold to help with the airflow. As air passes through your throttle body and ultimately the spacer here, that spiral bore design is gonna help with the velocity by spinning or spiraling that air into your manifold, which does, in turn, give you some added low-end torque around 800 to 2,500 RPMs while also helping with your air-fuel mixture.Ultimately, that's gonna help improve engine performance, giving you a more efficient engine while also helping with some gas mileage. Now, being made from a CNC billet aluminum, this guy is not finished in a powder coated finish or anything like that. It's at bare CNC, really perfectly meticulously crafted to fit your factory throttle body. Now, if you're working with an aftermarket throttle body, say a larger BBK option, for example, like an 85-millimeter, this guy's not gonna be for you. If you plan on going to a larger throttle body, you don't wanna pick up the spacer. This is only for factory throttle bodies only. When it comes to picking this guy up, you can do so for just under 50 bucks. It's one of those things that is extremely affordable and easy to do under the hood. Anybody can tackle it in the driveway at home with about maybe 30 minutes or so from start to finish. It comes with four bolts. You're really just unbolting your factory intake, taking the factory throttle body off, slipping this guy and a new gasket in place, and then bolting it all back up together. It is extremely, extremely simple. With that said, one out of three wrenches on our difficulty meter here. Like I said, 30 minutes or less. I'm gonna show you guys every step of the process. What do you say we get started?All right. Tools used in this install include an impact gun, 1/4-inch ratchet, couple of different size extensions, 7, 8, and 10-millimeter deep sockets. All right. First step here, you wanna get your factory engine cover out of the way if you have one. Ours is off on our F-150 here, so we're gonna move forward. You wanna look straight down here at your factory throttle body. We have to get our tubing out of the way in order to access all four of the factory bolts here. Your spacer is gonna go right in between the black portion here and this silver throttle body. So what we're gonna do first is grab a 7-millimeter deep socket or you can use a Flathead screwdriver. Loosen up this hose clamp here, and then we'll loosen the other one up on the other end, disconnect a couple of hoses, and get the tubing out of the way.All right. So now if you head up toward your airbox here, this hose is gonna also get disconnected so we can pull that factory tubing off. On the backside of the tubing, we have to disconnect these two hoses here. For this top one, you're really just gonna pinch and disconnect. You might need both hands for this guy here. Pinch, disconnect like that. For the bottom one, you're just pushing up on a gray tab and disconnecting. So down here you can see this gray tab. You'll just push that to the side and push off. Up here, you're just gonna disconnect that, and now you can pull your tubing off instead of the side. All right. So I'm just gonna pull this off here at the top just like that. I'm just gonna pop off of the throttle body as well. Now you're really just gonna feed it underneath of these hoses and set it aside.All right. Next up, I'm gonna switch over to an 8-millimeter deep socket. I've got my 1/4-inch ratchet and extension. We're looking at our bare throttle body. We have four, 8-millimeter bolts. Three of them you can see here, the fourth one's in this bottom corner. We're gonna get these three out of the way and then move over to the fourth. Once you crack them loose, they should be coming out pretty easily. You might even be able to get them out by hand. All right. Just be careful not to drop these guys and set them aside. All right. Now we're working on that last one down here in the bottom right corner. Once you pull this last guy out, your throttle body is gonna be loose. Keep in mind, it is still connected to one connector there. I'm just gonna lift this guy up and just rest it right up top.All right. So for the next step here, what we're gonna do is install our throttle body spacer right up against that mount there. And it only goes on one way. So if you rotate it upwards, the holes won't line up. So you wanna have this horizontal, just like this. Then what you're gonna do is take the gasket included in the kit and you're gonna hold that up as well, lining up those holes, take your throttle body and your throttle body is gonna install right over top of that. So the gasket goes in between the throttle body and the throttle body spacer. All right. Now, it's a bit tricky to do, but you're gonna take a bolt and put it through the throttle body, line it up so it goes through the gasket, and then the spacer, and then through the factory mounting location.All right. So we get it through the gasket there, through the spacer, and I'm gonna thread it in a couple of holes just to hold it in place. You're gonna use the new bolts included in the kit because they need to be longer to compensate for the added material there with the spacer. All right. So that's holding it up. Take the other bolts and put them back through. Really, the important thing here is to make sure that that gasket is properly lined up. You wanna make sure all four bolts are going through that. I'm gonna use my extension and 10-millimeter socket to thread the bottom left bolt through. All right. And now, finally, thread in that bottom right and then tighten them down.All right. Grab your ratchet and tighten down all four bolts. It's really important that when you're tightening these down, once you start getting pretty tight, you wanna do like a half of turn after that. You wanna make sure you're not risking cracking the mount there. Just wanna be careful when tightening these down. Definitely not going to use an impact gun. So we got it hand tight. Once you get this guy hand tight, again, just about 1/2 a turn or 1/4 turn, so it's nice and snug. Now that we have all four of those tightened up, we can put our air tube back on. All right. So let's feed our factory tube back in place here underneath of those hoses we disconnected. You wanna make sure it's connecting right into your factory throttle body. It's a little bit tighter here because we don't have as much room with our added spacer in place, but once you get that connected, bring it up to your factory airbox and connect to that side.All right. With both sides connected, tighten down your clamps. All right. Switching back over to my 7-millimeter deep socket, again, a flathead screwdriver will work as well. All right. Now the one at the top. Okay. Now I've gotta go do those two hoses in the back. All right. And your last step here, reconnect those two hoses at the back that we disconnected before removing our factory air box. They just snap right back in place. And then, again, if you have an engine cover, put that back on now, but at this point, you're good to go.That's gonna wrap up my quick overview and install for the SR Performance Throttle Body Spacer, available for the '11 and newer at 5-liter F-150. You can grab yours right here at americantrucks.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
SR Performance 41338
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
(approx) 1 Hour
Simple installation for anyone.
What's in the Box
10 More Questions
