Bilstein B8 5100 Series Rear Shock for 0 to 1.80-Inch Lift 24-317474 (21-26 Tahoe w/o Air Ride)

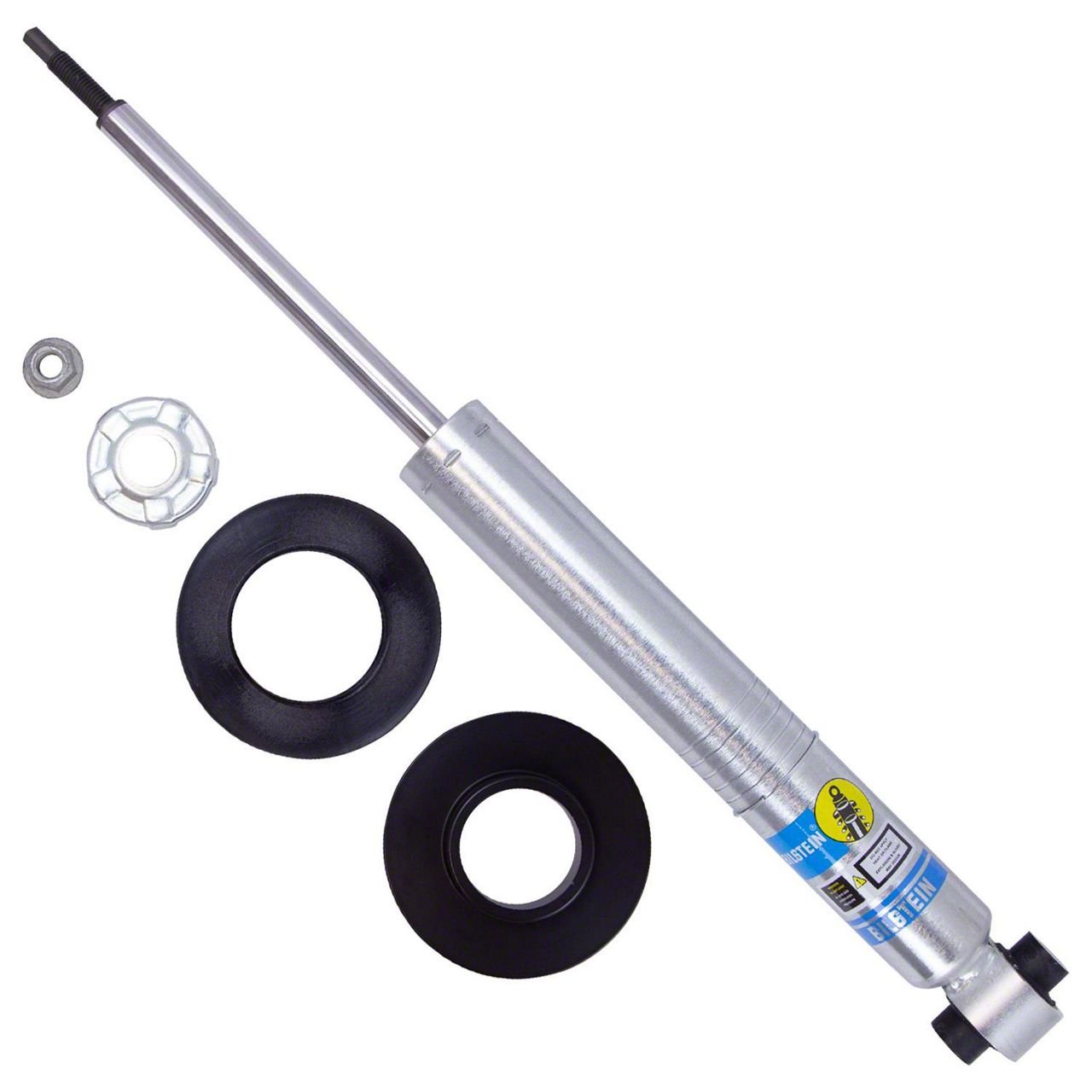

Name: Bilstein B8 5100 Series Rear Shock for 0 to 1.80-Inch Lift (21-26 Tahoe w/o Air Ride)
Brand: Bilstein
SKU: CT2647
Price: 168.00 USD
Availability: InStock
Rating: 4.9 (813 reviews)

Product Information

Features, Description, Reviews, Q&A, Specs & Installation

Features & Specs

Suspension Shock Absorber
Series B8 5100 Ride Height Adjustable
MSRP 246.00
Weight 6.39 Lbs
Collapsed Length 15.12 In (384.0 Mm)
Extended Length 22.50 In (571.4 Mm)
Stroke Travel Length 7.38 In
Lower Mount Type Eye 14.1 Mm
Upper Mount Type Stem
Internal Design Monotube
Finish Zinc Plated
Reservoir No
Body Design Snap Ring Grooved Body Coilover
Body Diameter 2.0 In
Piston Diameter 46 Mm
Boot Included No
Spring Seat Included Yes
Shaft Diameter 18 Mm
Adjustable Damping Non-Adjustable
Country Of Origin MX
Quantity Per Vehicle 2
Warranty Limited Lifetime Warranty
Fits 2021-2026 Tahoe without Air Ride

Brand

Bilstein

Shock Type

Non-Adjustable

Shock Lift Height

0 to 1.75-Inch Lift

Description

Ride Height Adjustable. The Bilstein B8 5100 Series Rear Shock is engineered to improve suspension performance for trucks and SUVs with a front coilover style setup. It enhances wheel travel and handling by allowing up to 3 inches of adjustable front lift, providing a level stance and better control on various terrains.

Construction and Appearance. This shock absorber features a robust monotube design with a 46mm piston diameter and a zinc-plated finish for corrosion resistance. The body is snap-ring grooved to accommodate coilover springs, and it includes a spring seat while excluding a boot. The build ensures durability and consistent damping performance.

Installation. Installation is straightforward with no drilling required. The adjustable spring seat allows easy ride height calibration without additional modifications.

Warranty. Comes with a limited lifetime warranty covering manufacturing defects and performance issues throughout the product’s lifespan.

Application. Fits 2021-2026 Tahoe models without Air Ride suspension, designed for vehicles not equipped with air suspension systems to maintain compatibility and performance.

Bilstein 24-317474
