BDS 4-Inch Radius Arm Suspension Lift Kit with Leaf Springs, FOX 2.5 Performance Elite Coil-Overs and 2.0 Performance Shocks (17-19 4WD 6.7L Powerstroke F-250 Super Duty)Find parts that fit my vehicle

Item SD55961
Product Image
$0.00
Want $10? Write one of the first 5 reviews 4.3 BDS Suspension product ratings
Our Price

$5,510.40 kit

Military & First Responders Earn $275.52 in AT Cash Rewards. Get Verified

Out of Stock $149.00 Oversized Item Fee

Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • BDS Radius Arm Suspension Lift Kit
      • Includes Leaf Springs, FOX 2.5 Performance Elite Coil-Overs and 2.0 Performance Shocks
      • Lift of 4 Inches
      • Matte Black, Glossy Black, and Polished Chrome Finish
      • Improved Stability and Performance
      • Bolt-On
      • Direct Replacement
      • Comes in Kits
      • Fits 2017-2019 4WD 6.7L Powerstroke Ford F-250 Super Duty Models

      Description

      Advanced Suspension Solution. The BDS Radius Arm Suspension Lift Kit delivers an elevated stance and superior off-road capability with a 4-inch lift for the Ford F-250 Super Duty. Featuring FOX 2.5 Performance Elite Coil-Overs and 2.0 Performance Shocks, this kit enhances stability, ride comfort, and wheel articulation while accommodating larger tires for rugged terrain.

      Construction and Appearance. Engineered with durability and aesthetics in mind, this lift system incorporates a blend of matte black, glossy black, and polished chrome finishes. The high-quality components include radius arms, leaf springs, and steel hardware, all constructed for strength and corrosion resistance to meet the demands of both on-road and off-road use.

      Installation. This kit offers a bolt-on installation that simplifies the upgrade process without the need for welding or extensive modifications. With specially designed brackets, spacers, and mounting hardware included, the installation is efficient and reliable, allowing for accurate alignment and optimized performance.

      Application. This BDS Radius Arm Suspension Lift Kit fits 2017-2019 4WD 6.7L Powerstroke Ford F-250 Super Duty models. It significantly enhances off-road capability, suspension performance, and provides a commanding stance, making it a solid upgrade for serious truck enthusiasts and work-ready builds.

      BDS BDS1557FPE

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

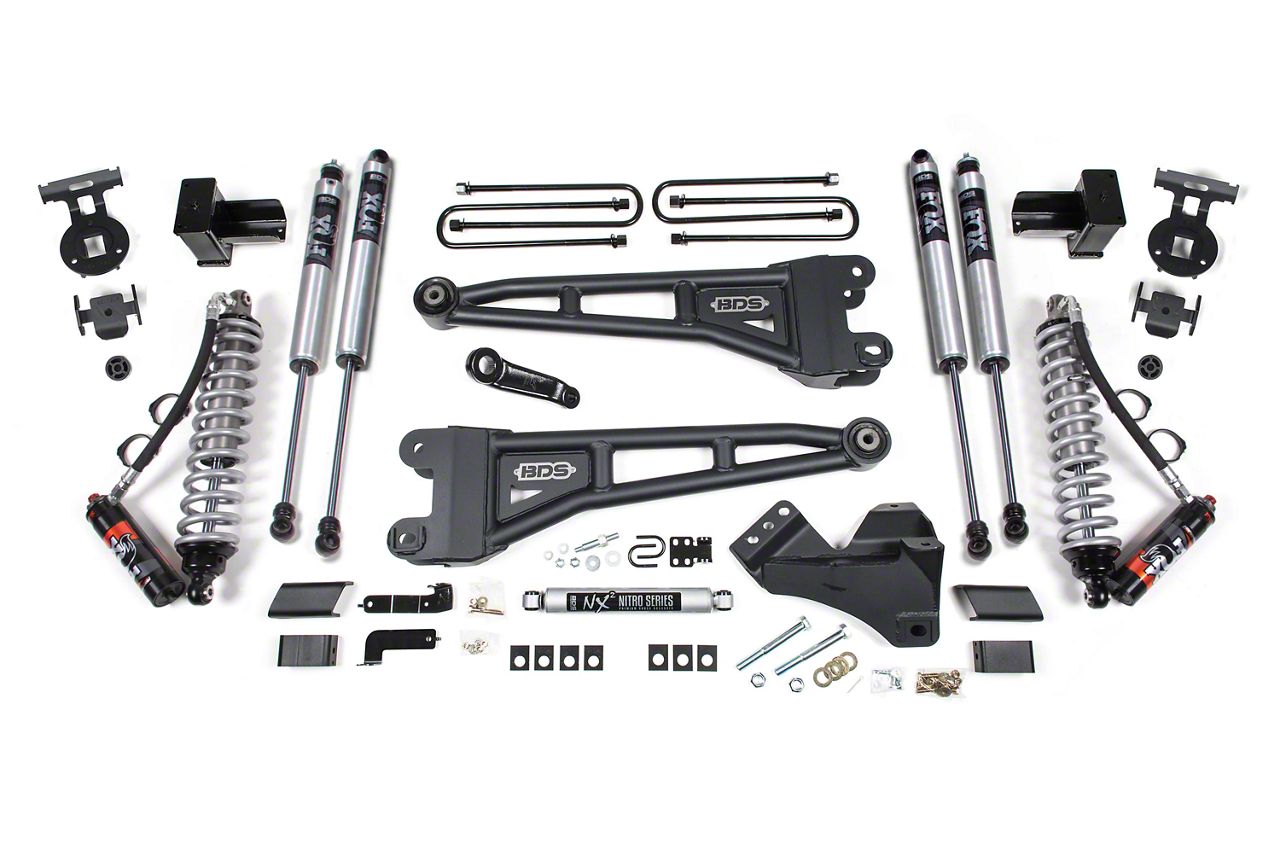

      What's in the Box

      • (1) Pitman Arm
      • (1) Drv Brakeline Bracket - 2017 SD
      • (1) Pass Brakeline Bracket - 2017 SD
      • (2) Front Bump Stop Extension - 4"
      • (1) Sway Bar Drop - Drv
      • (1) Sway Bar Drop - Pass
      • (1) Track Bar Bracket
      • (1) Bag Kit - 2017 Superduty
      • (2) Track Bar Cam Washer
      • (1) 1/8" x 1-1/8" Cotter Pin
      • (4) Zip Tie
      • (2) Zip Tie
      • (4) 3/8"-16 x 1-1/4" Bolt Grade 8
      • (4) 3/8"-16 Prevailing Torque Nut
      • (8) 3/8" USS Flat Washer Thru-Hardened
      • (2) 5/16"-18 x 1-1/4" Bolt Grade 5
      • (2) 5/16-18 Prevailing Torque Nut
      • (4) 5/16" SAE Washer
      • (1) Superduty Radius Arm Assembly - DRV
      • (1) Superduty Radius Arm Assembly - Pass
      • (1) B1114 Bag Kit - Radius Arms
      • (4) Radius Arm Cam Plates
      • (2) 18mm x 150mm Bolt
      • (2) 18mm Prevailing Torque Nut
      • (4) 3/4" SAE Washer
      • (2) 4" Coil Spring – Diesel
      • (2) 4" Coil Spring - Gas
      • (2) 4.5" Rear Super Duty Block
      • (4) 5/8 x 3-1/8 x 16 Semi-Round U-Bolt
      • (8) 5/8 Washer
      • (8) 5/8 High Nut
      • (1) Stabilizer
      • (2) Bushing - EB1
      • (1) Narrow Sleeve
      • (1) P Pack - Stabilizer
      • (1) Stabilizer Bracket
      • (2) 5/16" x 1-1/4" x 2" Round U-Bolt
      • (4) 1/4" USS Washer Thru Hardened
      • (4) 5/16"-18 Prevailing Torque Nut
      • (1) Bolt Pack Stabilizer Mounting
      • (1) 3/8"-16 x 2-1/2" Bolt Grade 5
      • (1) 3/8"-16 Prevailing Torque Nut
      • (2) 3/8" SAE Flat Washer
      • (1) 5" Rear Superduty Tapered (DRV)
      • (1) 5" Rear Superduty Tapered (PASS)
      • (4) 5/8 x 3-1/8 x 16 Semi-Round U-Bolt
      • (8) 5/8 Washer
      • (8) 5/8 High Nut
      • (1) 2023 Radius Arm Assembly - DRV Side
      • (1) 2023 Super Duty Radius Arm - Drv
      • (1) Ford F250 Control Arm Bushing
      • (1) 2023 Radius Arm Assembly - PASS Side
      • (1) 2023 Super Duty Radius Arm - Pass
      • (1) Superduty Bushing
      • (2) BDS Badge
      • (1) Rivet Bolt Pack
      • (4) 3 Position Radius Arm Cam
      • (2) M18-2.5 x 150 Bolt
      • (2) M18-2.5 Lock Nut
      • (4) 3/4" SAE Flat Washer
      • (4) Zip Ties
      • (2) Push Pin Zip Ties
      • (2) Radius Arm Assembly - DRV Side
      • (1) Superduty Radius Arm 2"-4"
      • (1) Superduty Bushing
      • (2) BDS Badge
      • (1) Rivet Bolt Pack
      • (1) Bag Kit
      • (4) Cam Plate
      • (2) M18-2.5 Lock Nut
      • (2) M18-2.5 x 150 Bolt
      • (4) 3/4" SAE Flat Washer
      • (6) Zip Ties
      • (2) Push Pin Zip Ties

      Tech Guides:

      4.3

      Reviews of BDS Suspension Products (16)

      Brand Image

      Reviews of BDS Suspension products have an average rating of 4.3 out of 5

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-250

      • 6.7L V8 Power-Stroke - 17, 18, 19
