Installation Time
(approx) a Day
Difficulty Level:
Mechanical expertise or professional installation required.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Talk to a F-250 Sales Tech
1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Find 3 Inch to 5 Inch Lift Kits for your F-250
BDS 4-Inch 4-Link Suspension Lift Kit with Leaf Springs and FOX 2.0 Performance Shocks (17-19 4WD 6.7L Powerstroke F-250 Super Duty)Find parts that fit my vehicle
Item SD55930
$0.00
Our Price
$3,582.45 kit
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- BDS 4-Link Suspension Lift Kit
- Matte Black and Polished Chrome Finish
- Includes Leaf Springs and FOX 2.0 Performance Shocks
- Maximum Tire Size of 37 Inches (Trimming May be Required)
- Improved Handling and Performance
- Bolt-On
- Lift of 4 Inches
- Direct Replacement
- Comes in Kits
- Fits 2017-2019 4WD 6.7L Powerstroke Ford F-250 Super Duty Models
| Brand | BDS |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Coil Spring Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Robust Suspension Upgrade. The BDS 4-Link Suspension Lift Kit is a comprehensive solution engineered to elevate the stance and performance of your Ford F-250. With a 4-inch lift, this kit provides improved clearance for larger tires up to 37 inches and enhanced off-road handling. Designed to enhance both form and function, it includes FOX 2.0 Performance Shocks and heavy-duty components to help your truck conquer more demanding terrain with confidence.
Construction and Appearance. Crafted with durability in mind, the BDS 4-Link Lift Kit features a premium matte black and polished chrome finish that resists corrosion and wear. The included components, from leaf springs to hardware, are made from high-grade materials including DOM sleeves, Grade 8 bolts, and heavy-duty bushings. The hardware is zinc-coated for added protection and longevity.
Installation. This kit is designed for a bolt-on upgrade that doesn’t require complex alterations to your truck’s frame or structure. The precision engineering ensures a secure and straightforward installation process, supported by clear instructions and included hardware. The 4-link arm design also aids in alignment and suspension articulation without the need for drilling.
Application. This BDS 4-Link Suspension Lift Kit fits 2017-2019 4WD 6.7L Powerstroke Ford F-250 Super Duty models. It’s ideal for off-road enthusiasts looking for a reliable lift with better suspension geometry, increased wheel travel, and superior control on rugged terrain.
BDS BDS1555FS
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

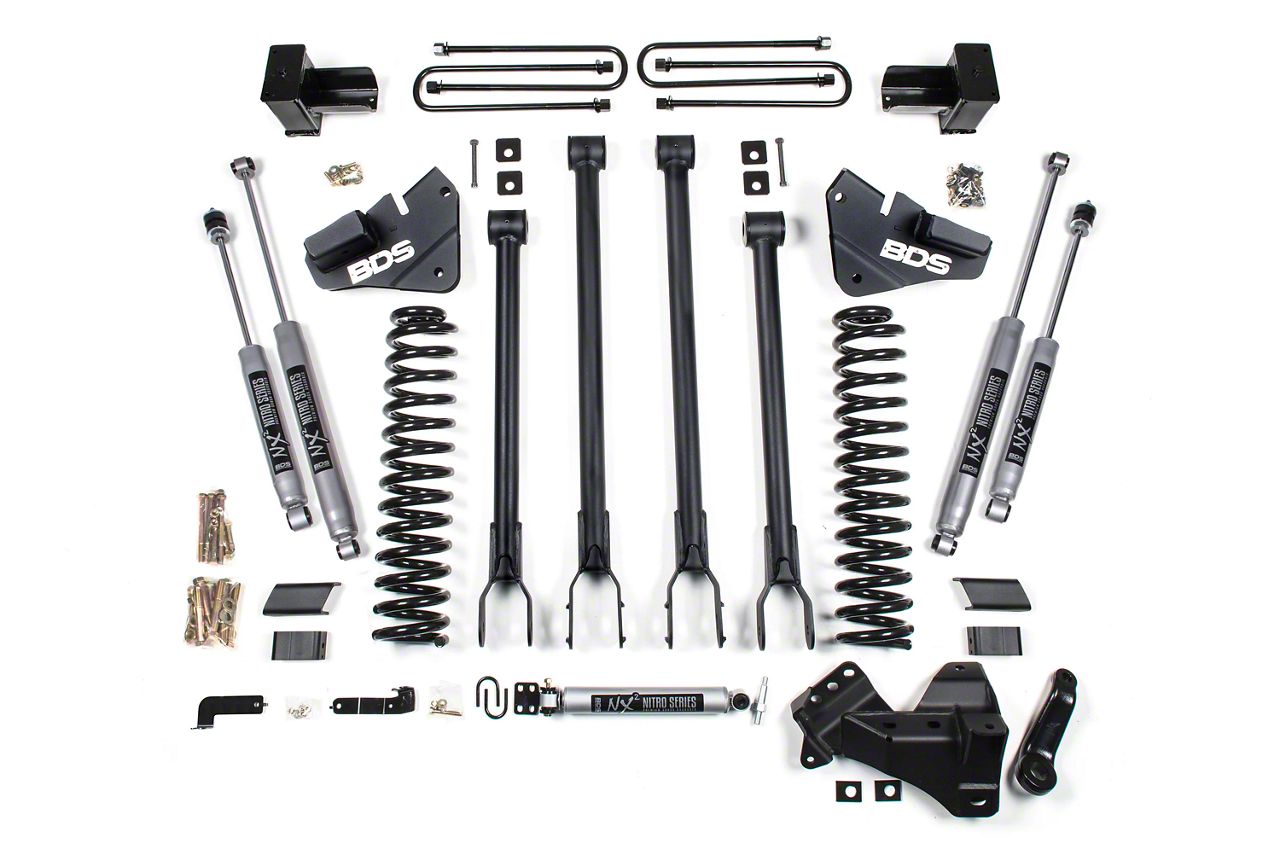

What's in the Box
- (2) Upper 4-Link Arm
- (2) Lower 4-Link Arm
- (2) M18-2.5 Prevailing Torque Nut - Clear Zinc
- (16) 3/4 SAE Thru Hard Flat Washer - Clear Zinc
- (2) M18-2.5 x 150 Bolt - Class 10.9 - Clear Zinc
- (6) 3/4"-10 x 5" Bolt - Grade 8 - Clear Zinc
- (6) 3/4"-10 Prevailing Torque Nut - Clear Zinc
- (1) Bag Kit - Upper Arm
- (2) 90-Degree Grease Fitting
- (2) 1.0 x 0.120 x 3.25 DOM Sleeve
- (4) Bushing
- (1) Bag Kit - Lower Arm
- (2) 90-Degree Grease Fitting
- (2) 1.0 x 0.120 x 3.25 DOM Sleeve
- (4) Bushing
- (4) Cam Lock Plate
- (1) Stabilizer
- (2) Bushing - EB1
- (1) Narrow Sleeve
- (1) P Pack - Stabilizer
- (1) Stabilizer Bracket
- (2) 5/16" x 1-1/4" x 2" Round U-Bolt
- (4) 1/4" USS Washer Thru Hardened
- (4) 5/16"-18 Prevailing Torque Nut
- (1) 3/8"-16 x 2-1/2" Bolt Grade 5
- (1) 3/8"-16 Prevailing Torque Nut
- (2) 3/8" SAE Flat Washer
- (4) 5/8 x 3-1/8 x 14 U-Bolt (013617 only)
- (4) 5/8 x 3-1/8 x 11 U-Bolt (013438 only)
- (4) 7/8 Washer
- (1) E-Brake Relocation Bracket
- (1) E-Brake Relocation Clamp Bracket
- (1) Bolt Pack - E-Brake Relocation
- (8) 5/8 Washer
- (8) 5/8 High Nut
- (2) 7/16 x 4 Pin w/Nut
- (1) Pitman Arm
- (2) Front Bump Stop Extensions
- (1) Track Bar Bracket
- (1) Sway Bar Drop - Drv.
- (1) Sway Bar Drop - Pass.
- (1) 4-Link Bracket - Drv.
- (1) 4-Link Bracket - Pass.
- (2) BDS Badge
- (2) Rivet Bolt Packs
- (2) Track Bar Cam Washer
- (1) Front Brake Line Bracket (Drv. - 6" Box Kit)
- (1) Front Brake Line Bracket (Pass. - 6" Box Kit)
- (2) U-Hardline Extension (6" Box Kit)
- (1) Front Brake Line Bracket (Drv. - 4" Box Kit)
- (1) Front Brake Line Bracket (Pass. - 4" Box Kit)
- (2) 4-Link Bracket Nut Tab
- (2) M8-1.25 x 130mm Bolt
- (2) 5/16" SAE Flat Washer
- (4) Zip Tie
- (1) Drive Shaft Boot Clamp
- (1) 1/8" x 1-1/4" Cotter Pin
- (2) 9/16"-12 x 1-1/2" Bolt - Grade 8 - Clear Zinc
- (2) 9/16" SAE Thru Hard Flat Washer - Clear Zinc
- (4) M12-1.75 x 150mm Bolt - Class 10.9 - Clear Zinc
- (4) M12-1.75 Prevailing Torque Nut - Clear Zinc
- (8) M12 Flat Washer - Clear Zinc
- (1) 1/4" x 0.28" ID Wire Coated Clamp
- (1) 1/4"-20 x 3/4" Bolt - Grade 5
- (1) 1/4"-20 Serrated Edge Flange Nut
- (1) 1/4" SAE Washer
- (4) 3/8"-16 x 1-1/4" Bolt Grade 8
- (4) 3/8"-16 Prevailing Torque Nut
- (8) 3/8" USS Flat Washer Thru-Hardened
- (1) 5" Tapered Superduty Block (DRV)
- (1) 5" Tapered Superduty Block (PASS)
- (4) 5/8 x 3-1/8 x 19 Semi-Round U-Bolt (013516)
- (4) 5/8 x 3-1/8 x 16 Semi-Round U-Bolt (013517)
- (1) Bag Kit
- (8) 5/8" Washer
- (8) 5/8" High Nut
- (2) 1" x 3" Bolt on Block
- (1) Bag Kit
- (2) 7/16" x 6" Center Pin
- (1) E-Brake Relocation Bracket
- (1) E-Brake Clamp Bracket
- (1) Bolt Pack -E-Brake Brackets
