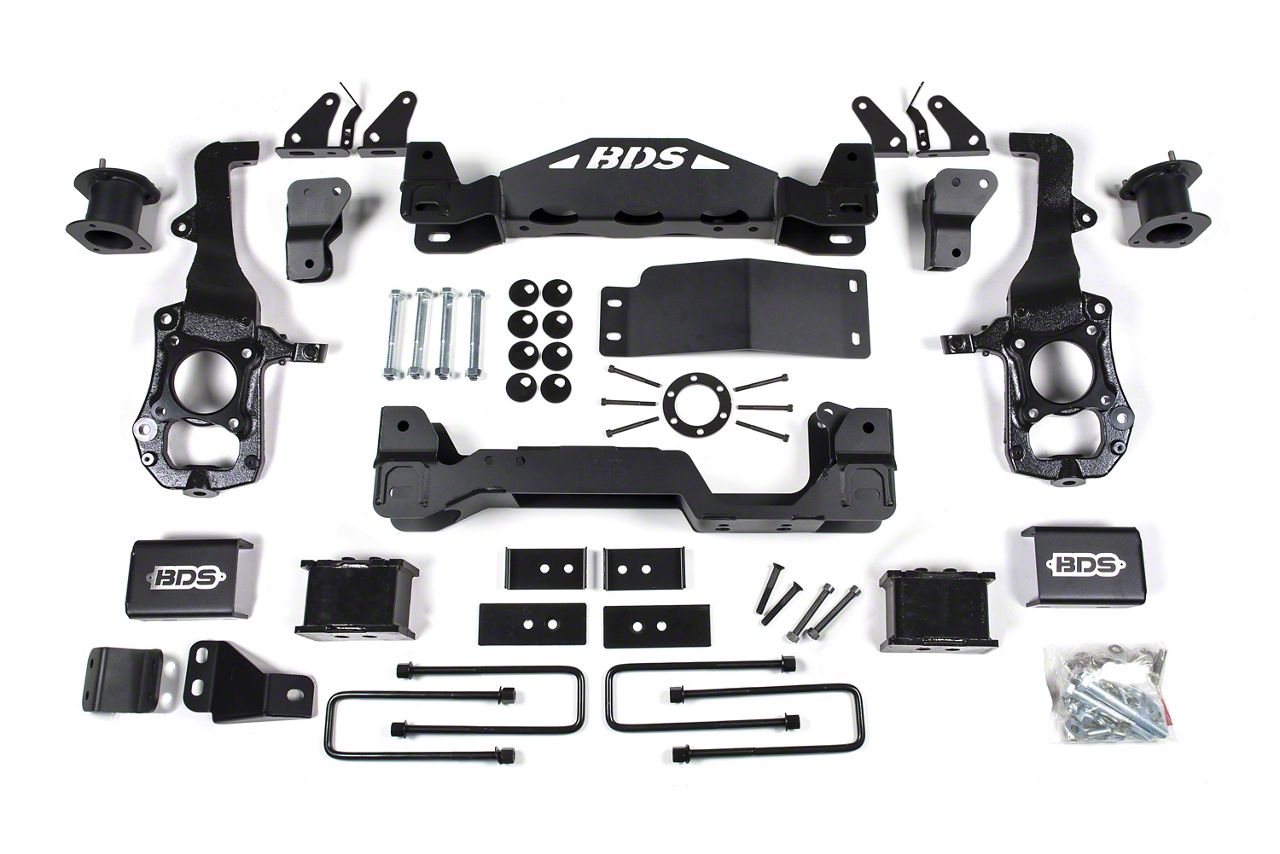

BDS 6-Inch Suspension Lift Kit with 4-Inch Rear Lift Blocks (21-26 4WD F-150 w/ CCD System, Excluding Powerstroke, Raptor & Tremor)Find parts that fit my vehicle

Item T619885
Our Price

$1,960.74 pair

Military, Medical & First Responders $98.04 Available in AT Cash Rewards.
Confirm Eligibility

    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • Steps Up Performance And Capability Of 2021-2026 Ford F-150 Trucks Equipped With CCD
      • Improves Stance, Performance, And Capability With 6-Inch Suspension Lift
      • Provides Clearance For Tires Up To 37 Inches (Trimming May Be Required)
      • Features High-Clearance 1/4-Inch Thick Steel Crossmembers For Improved Ground Clearance
      • Includes Top Mounted Strut Spacers For Easy Lift Installation
      • Utilizes Multipiece Differential Relocation Brackets And Skidplate For Offroad Protection
      • Corrects Steering Geometry With CNC-Machined Ductile Iron Steering Knuckles
      • Includes Sway Bar Relocation Brackets, Brake Line Brackets, Alignment Cam Bolts, And Hardware
      • Rear Features High Strength Fabricated Lift Blocks And Longer U-Bolts To Level Stance
      • Includes Shock Relocation Brackets To Maintain Factory CCD Shocks
      • Compatible With Blue Cruise System
      • Recommended Tire And Wheel Sizes May Require Trimming
      • Will Not Work With Aftermarket Upper Control Arm Kits Without Dual Ride Height Sensor Provisions
      • Requires 18 Inch Or Larger Diameter Wheels; Stock 17- And 18-Inch Wheels Are Incompatible
      • Does Not Fit Diesel Or Tremor Models
      • May Require Rear Driveshaft Carrier Bearing Shim Kit For 2-Piece Driveshaft Models
      • Recalibration Of Advanced Driver Assistance Systems May Be Required After Installation
      • Fits 21-26 4WD F-150 w/ CCD System, Excluding Powerstroke, Raptor & Tremor

      Description

      Performance Enhancement. The BDS 6-Inch Suspension Lift Kit with 4-Inch Rear Lift Blocks elevates the factory suspension of your truck to improve ground clearance, enhance offroad capability, and accommodate larger tires. This lift kit is designed to maintain proper suspension and steering geometry, ensuring excellent on-road handling and performance. It is an essential upgrade for those looking to increase their vehicle's stance and ruggedness while keeping factory suspension dynamics intact.

      Construction and Appearance. This lift kit features high-clearance welded steel crossmembers made from 1/4-inch thick laser-cut steel for superior strength and durability. The steering knuckles are CNC-machined from ductile cast iron to correct steering geometry at the lifted height. The components come in a factory finish designed to withstand harsh offroad conditions while providing a clean, aggressive appearance.

      Installation. The installation process requires moderate mechanical skills and involves no drilling, as the kit is designed to be a bolt-on solution using included hardware. Comprehensive instructions and all necessary components are provided for a precise fit and proper assembly.

      Application. This suspension lift kit fits 2021-2026 4WD Ford F-150 models equipped with the CCD system, excluding Powerstroke diesel, Raptor, and Tremor models. Proper compliance with sensor connections and vehicle calibrations is required post-installation for optimum functionality.

      BDS BDS1961H

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      4.6

      Reviews of BDS Suspension Products (27)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My F-150

      • 2.7L V6 EcoBoost - 21, 22, 23, 24, 25, 26
      • 3.3L V6 - 21, 22, 23
      • 3.5L V6 EcoBoost - 21, 22, 23, 24, 25, 26
      • 3.5L V6 EcoBoost Limited - 21, 22, 23
      • 3.5L V6 PowerBoost - 21, 22, 23, 24, 25, 26
      • 5.0L V8 - 21, 22, 23, 24, 25, 26
