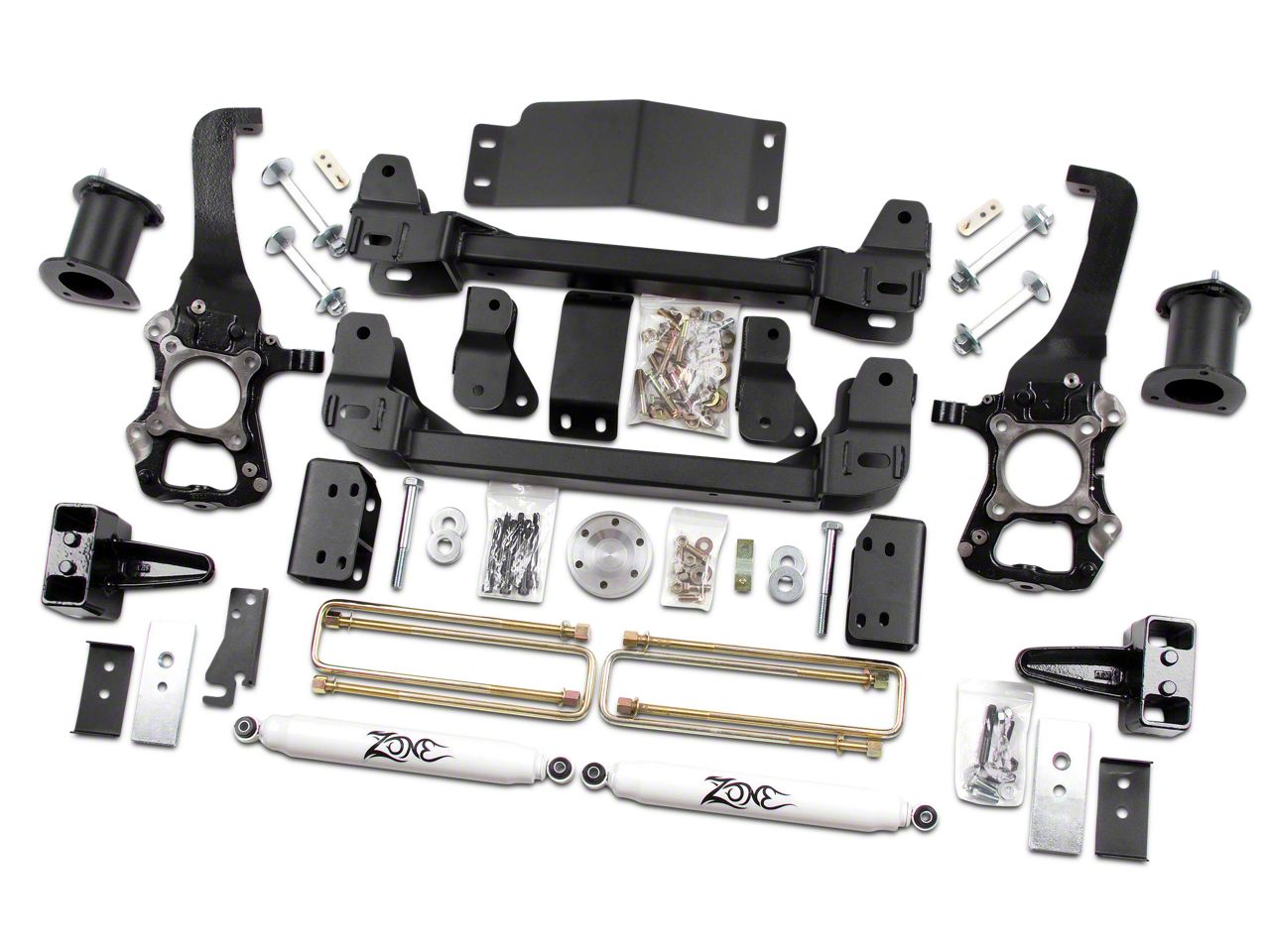

Zone Offroad 6 in. Suspension Lift Kit w/ Shocks (2014 2WD/4WD F-150, Excluding Raptor)

Market Price $1,327.99 You Save 10% ($132.04)
Starting At


+ $149.00 Handling Fee with FREE Shipping
  • Item T527251
  • MPN# F40

Will this fit your Truck?

Ship to: ASHBURN - 20146
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • 6 Inch Lift Kit
    • CNC Machined Steering Knuckles
    • Heavy 1/4" Thick Cross Members
    • No Change in Track Width
    • Custom Valved Coil Over Struts
    • FMVSS No.126 Compliant
    • Accommodates Up to 37 Inch Tires
    • Optional Hydro or Nitro Rear Shocks
    • Fits 2014 2WD and 4WD F-150s, Excluding SVT Raptors
    Enhance Your Stance and Performance. With the Zone Offroad 6 in. Suspension Lift Kit w/ Shocks, you can enhance the stance and performance of your truck. This kit will provide you with a 6-inch lift that offers the best ground clearance out there and will allow you to accommodate up to 37-inch tires. This kit is fully compliant with the stability control system requirements, which ensures that your truck will handle and manage well even on rough terrain. Your truck will be trail capable and be able to clear a variety of obstacles that you put in its way.

    Choose Your Shocks Today. One of the nice things about the Zone Offroad 6 in. Suspension Lift Kit is that you can choose what type of shocks you want your ride to have. You can choose from nitro or hydro and both come with a unique twin tube design and are custom valved for superior control and comfort.

    All Hardware Included. This kit comes with all of the hardware and parts needed to install it on your truck. You can expect installation to take a day and it is recommended that you have a professional install it if you do not have mechanical experience.

    Application. This Zone Offroad 6 in. Suspension Lift Kit with choice of Hydro or Nitro Shocks is designed for use on 2014 F-150s equipped with two-wheel drive (2WD) or four-wheel drive (4WD), excluding Raptor models.

    Technical notes:

    • 17" wheels will not fit after installation.
    • 18x9 wheels with a backspacing of 5.5" should be test fitted for proper tie rod clearance.
    • Stock 20" wheels can be re-used with stock tires only.
    • AWD F-150s will require modification to the front driveshaft.
    • Rear Driveshaft Extension, part# F5601, may be required for 2WD F-150s
    • F-150s equipped with factory power steps will require Zone Offroad E-Brake Relocation Bracket, part# F5608.
    • F-150s equipped with a 2 piece rear driveshaft and carrier bearing may require Zone Offroad Carrier Bearing Drop Kit, part# D5405.

    Fitment: 2014 Details

    Installation Info
    Tech Specs

    Lift Specifications.

    • Front Lift Height: 6"
    • Front Lift Method: IFS with Struts
    • Rear Lift Height: 5"
    • Rear Lift Height: Block and U-Bolt

    Hydro Shock Specifications.

    • Collapsed Length: 19.27"
    • Extended Length: 33"
    • Diameter: 2.375"
    • Twin Tube Hydraulic
    • Progressive 10 Stage Velocity Sensitive Valving
    • 5/8" Hardened and Double Chromed Rod
    • 1 3/8" Diameter Piston
    • Double Welded Eyelet
    • Internal Rebound Bumper
    • Urethane Bushings

    Nitro Shock Specifications.

    • Collapsed Length: 19.27"
    • Extended Length: 33"
    • Diameter: 2.375"
    • Nitrogen Gas Charged Shock
    • Twin Tube Design
    • 10 Stage Velocity Sensitive Valving
    • Full Displaced Valving
    • 5/8" Heavy Chromed Road
    • 1 3/8" Fluon Banded Piston
    • Self Lubricating Seals
    • Dual Welded Ends
    • Bushings Included
    Will it fit my F-150?

    People Who Bought This Item Also Bought

    Customer Photos

    You Might Also Like

    1 Questions / 1 Answers

    Ask a Question

    Is this kit stackable with a 2" leveling shock to run 8 inches total?


    • The Zone Offroad 6 in. Suspension Lift Kit w/ Shocks would not be stackable no.
