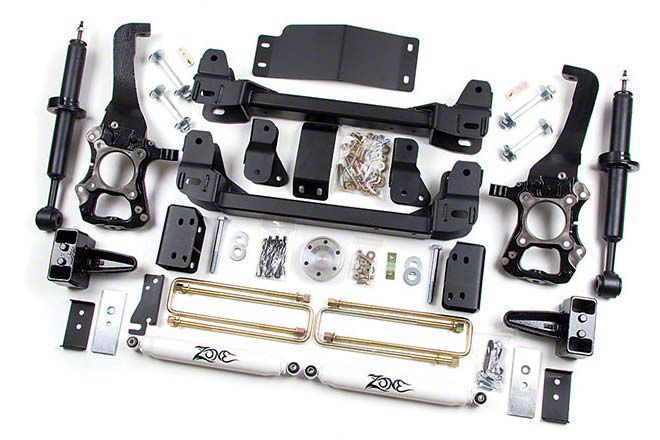

Zone Offroad 6 in. Suspension Lift Kit w/ Shocks (09-13 2WD/4WD F-150, Excluding Raptor)

Item T527250
Call a F150 Enthusiast at 1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Market Price $1,568.99 You Save 10% ($155.40)
Starting At

$1,413.59

FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • 6 Inch Lift Kit
      • CNC Machined Steering Knuckles
      • Heavy 1/4" Thick Cross Members
      • No Change in Track Width
      • Custom Valved Coil Over Struts
      • FMVSS No.126 Compliant
      • Accommodates Up to 37 Inch Tires
      • Optional Hydro or Nitro Rear Shocks
      • Fits 2009-2013 2WD and 4WD F-150s, Excluding SVT Raptors

      Description

      Enhance Your Truck. If you are after an aggressive stance and you want to give your F-150 the lift it deserves, choose the Zone Offroad 6 in. Suspension Lift Kit w/ Shocks. You will find that this kit provides you with a hefty six-inch lift for your ride! This is a phenomenal lift that every truck enthusiast dreams of and now, you can have it. With awesome ground clearance, you will be able to tackle any off-road trail that you want and each kit accommodates tires up to 37 inches in size. One of the nice things about the Zone Offroad 6 in. Suspension Lift Kit is that it is fully compliant with the stability control system requirements that are set forth by the Federal Motor Vehicle Safety Standard. All components within this kit are made from quality materials to ensure strength and durability.

      Nitro or Hydro Shock Choice. When you purchase the Zone Offroad 6 in. Suspension Lift Kit w/ Shocks you will be able to choose from either hydro or nitro shocks to be included with your kit. This is one of the nice things about Zone Offroad. Each of the hydro and nitro options are ideal for your truck and come with a twin tube design for supreme comfortability as you travel down the road.

      CNC Machined Knuckles. The Zone Offroad 6 in. Suspension Lift Kit w/ Shocks comes with quality steering knuckles that are CNC machined for a perfect fit and quality strength.

      All Parts Included. All of the parts and hardware needed for installation is included in the kit. You will find that this kit is fairly difficult to install and mechanical expertise is recommended. You can expect installation to take about one day.

      Application. This Zone Offroad 6 in. Suspension Lift Kit with choice of Hydro or Nitro Shocks is designed for use on 2009 to 2013 F-150s equipped with two-wheel drive (2WD) or four-wheel drive (4WD), excluding Raptor models.

      Technical notes:

      • 17" wheels will not fit after installation.
      • 18x9 wheels with a backspacing of 5.5" should be test fitted for proper tie rod clearance.
      • Stock 20" wheels can be re-used with stock tires only.
      • AWD F-150s will require modification to the front driveshaft.
      • Rear Driveshaft Extension, part# F5601, may be required for installation.
      • F-150s equipped with factory power steps will require Zone Offroad E-Brake Relocation Bracket, part# F5608.
      • F-150s equipped with a 2 piece rear driveshaft and carrier bearing may require Zone Offroad Carrier Bearing Drop Kit, part# D5405.

      Fitment: 2009 2010 2011 2012 2013 Details

      MPN# F10N

      F20N

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers (2 answers)

      2 Top Rated Questions

      Is there any modifications (cutting off,drilling, etc) that I would need to do in order to get the correct fitment of this lift? -2013 F150 2wd

      If I get this lift kit what size tire can I run with 20x10 -18/-24 wheels. I have a 2013 F150 4x4

      • this will accommodates up to 37 Inch Tires with proper offset and backspacing on your wheels

      Helpful (0)
      Post Your Question

      Installation & What's in the Box

      Installation Info

      Tech Specs

      Lift Specifications.

      • Front Lift Height: 6"
      • Front Lift Method: IFS with Struts
      • Rear Lift Height: 5"
      • Rear Lift Height: Block and U-Bolt

      Hydro Shock Specifications.

      • Collapsed Length: 19.27"
      • Extended Length: 33"
      • Diameter: 2.375"
      • Twin Tube Hydraulic
      • Progressive 10 Stage Velocity Sensitive Valving
      • 5/8" Hardened and Double Chromed Rod
      • 1 3/8" Diameter Piston
      • Double Welded Eyelet
      • Internal Rebound Bumper
      • Urethane Bushings

      Nitro Shock Specifications.

      • Collapsed Length: 19.27"
      • Extended Length: 33"
      • Diameter: 2.375"
      • Nitrogen Gas Charged Shock
      • Twin Tube Design
      • 10 Stage Velocity Sensitive Valving
      • Full Displaced Valving
      • 5/8" Heavy Chromed Road
      • 1 3/8" Fluon Banded Piston
      • Self Lubricating Seals
      • Dual Welded Ends
      • Bushings Included

      Will It Fit My F-150

      • 3.5L V6 EcoBoost - 11, 12, 13
      • 3.7L V6 - 11, 12, 13
      • 4.6L V8 - 09, 10
      • 5.0L V8 - 11, 12, 13
      • 5.4L V8 - 09, 10
      • 6.2L V8 - 11, 12, 13

          }
