Turbosmart Gen4 HyperGate45 External Wastegate; 14 PSI; Black (Universal; Some Adaptation May Be Required)

Item CT16403
Product Image
382 Reviews of Turbosmart
Our Price

$468.89 each

Military, Medical & First Responders $23.44 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Gen4 CompGate40 And HyperGate45 Approved For Continuation And Re-Introduction At New Price
        • _x000D_
      • Australian Made
        • _x000D_
      • Hand Assembled And Individually Tested Before Shipping
        • _x000D_
      • Price Drop From Previous Model
        • _x000D_
      • Suitable For 45mm External Wastegate Applications
        • _x000D_
      • Designed For Street Performance With Good Flow And Heat Characteristics
        • _x000D_
      • Compatible With Pump Fuel And E85 Applications
        • _x000D_
      • V-Band Inlet And Outlet Fits 44/46mm Peer Flange Manifolds
        • _x000D_
      • Unique Locking Collar Design Included
        • _x000D_
      • Stainless Steel Cast Body And Aluminium Actuator Housing
        • _x000D_
      • Fittable Springs Range From 3 To 26 PSI
        • _x000D_
      • Solid Piece Stainless Steel Valve
        • _x000D_
      • Proprietary High-Temperature Silicon Nomex Diaphragm
        • _x000D_
      • Twin 1/16" NPT Reference Ports
        • _x000D_
      • Supplied With V-Band Clamps, Inlet And Outlet Weld Flanges, Locking Collar Tool, And Fittings
        • _x000D_
      • Designed For Peer Flange Orientation Compatibility With Existing Manifolds
        • _x000D_
      • Pressure Springs And Accessories Available Separately
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      _x000D_

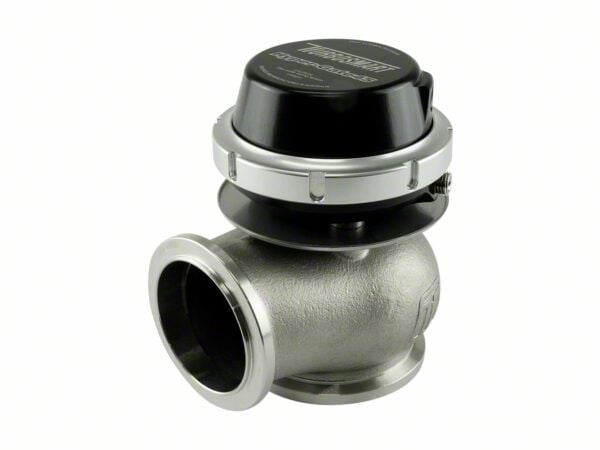

      High-Performance Wastegate. The Turbosmart Gen4 HyperGate45 External Wastegate (14 PSI, Black) is a precision-engineered device designed to regulate turbocharger boost pressure effectively. It controls exhaust gas flow to the turbine, ensuring consistent boost levels and preventing excessive pressure that could damage the turbocharger. This component is essential for maximizing engine performance while providing reliable overboost protection.

      _x000D__x000D_

      Construction and Appearance. Featuring a stainless steel cast body and an aluminum actuator housing, the wastegate offers excellent durability and heat resistance. It incorporates a solid stainless steel valve and a proprietary high-temperature silicon Nomex diaphragm to ensure dependable operation under extreme conditions. The black anodized finish may slightly discolor with heat exposure but does not affect function or performance.

      _x000D__x000D_

      Installation. Installation is straightforward for technicians experienced with external wastegates, typically requiring no special modifications. The unit uses V-band clamps and weld flanges designed for peer flange orientation, making it compatible with most existing 44mm and 46mm manifolds, facilitating easy fitment.

      _x000D__x000D_

      Application. This wastegate is ideal for street performance vehicles requiring a 45mm external wastegate with boost control up to 14 PSI. It accommodates a range of spring pressures (3 to 26 PSI) for tuning flexibility and is compatible with pump fuel and E85. The universal fit design means some adaptation may be necessary depending on the manifold.

      Turbosmart TS-0506-1041

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) External Wastegate
      • Mounting Bracket
      • Hardware
      • Instruction Manual
