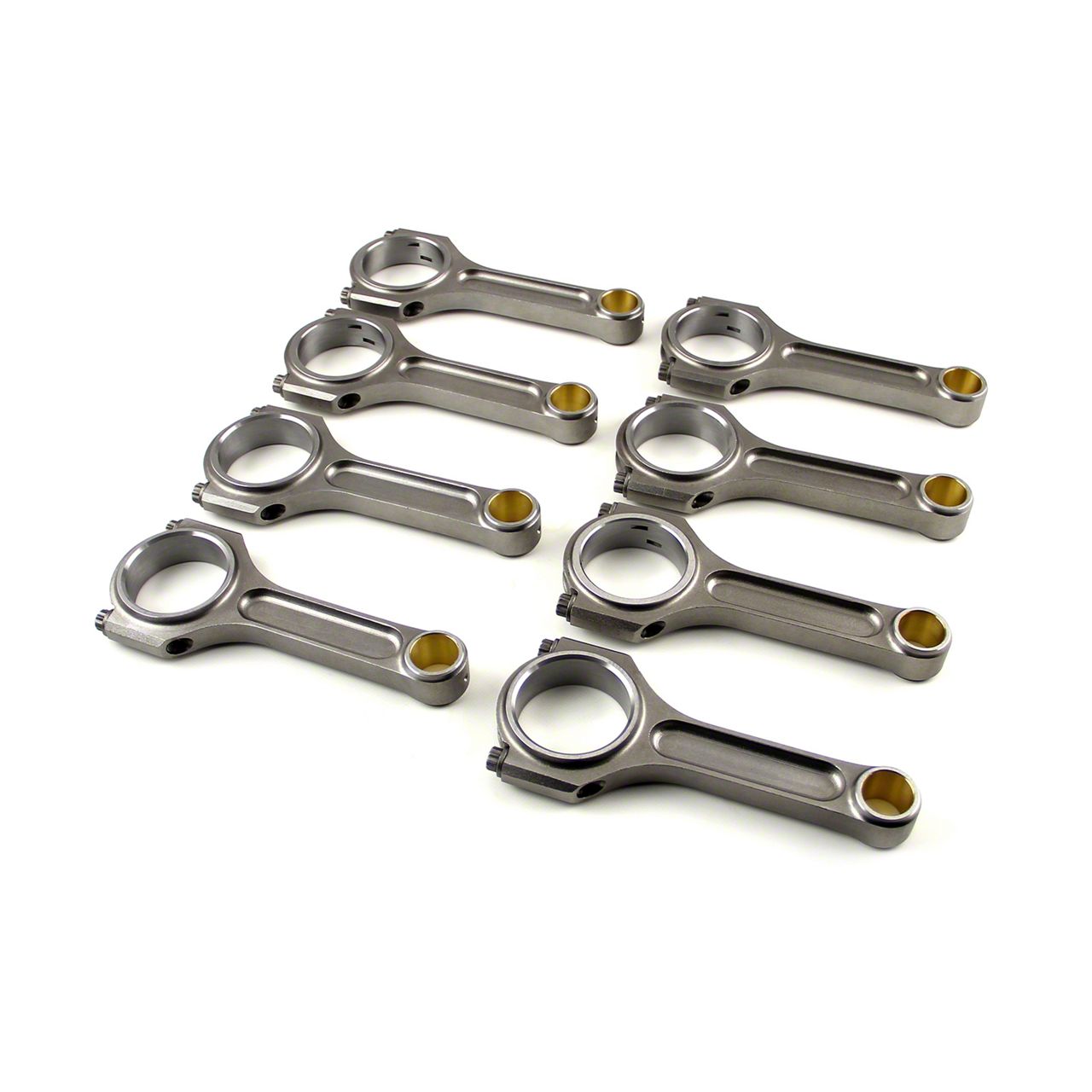

Speedmaster Ford 4.6L/Coyote Bronze Bush 4340 Connecting Rods; I-Beam

Brand: SpeedmasterPart Number: PCE274.1092Part Type: Connecting RodProduct Line: I-Beam Pro/RaceConnecting Rod Length Center to Center (in): 5.933 in.Connecting Rod Beam Style: I-beam RaceConnecting Rod Material: 4340 Chromoly SteelConnecting Rod Finish: Shot-peenedWrist Pin Style: FloatingClearanced for Stroker: YesCap Retention Style: Through-boltConnecting Rod Bolt Brand: PCEConnecting Rod Bolt Diameter: 7/16 in.Connecting Rod Bolt Material: Chromoly steelFastener Yield Strength (psi): 200,000 psiConnecting Rod Bolt Head Style: 12-pointApproximate Connecting Rod Weight (g): 690gRod Journal Diameter (in): 2.086 in.Big End Bore Diameter (in): 2.2390 in.Pin End Bore Diameter (in): 0.866 in.Big End Width (in): 0.938 in.Advertised Horsepower Rating (hp): 1000+ hpAdvertised RPM Rating: 8,200 rpmWeight Matched Set: YesRemanufactured: NoMagnafluxed: YesQuantity: Sold as a set of 8.Tool: Stroker CombinationsDescriptionSpeedmaster I-beam connecting rods incorporate all of the best features possible for an I-beam rod, including some strength adders found in H-beam designs. Speedmaster I-beam connecting rods are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, polished beams to eliminate stress risers. Speedmaster cap screw bolts to greatly increase strength and horsepower capabilities.Speedmaster I Beam Tace connecting rods are manufactured from aircraft 4340 chromoly steel and designed to be the most reliable in the racing industry. The rods are x-rayed and ultrasonically tested with all surfaces shot peened and stress relieved. Perfect for engines producing 1000+ HP
