Installation Time
(approx) 2 Hours
Difficulty Level:
Simple installation for anyone.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

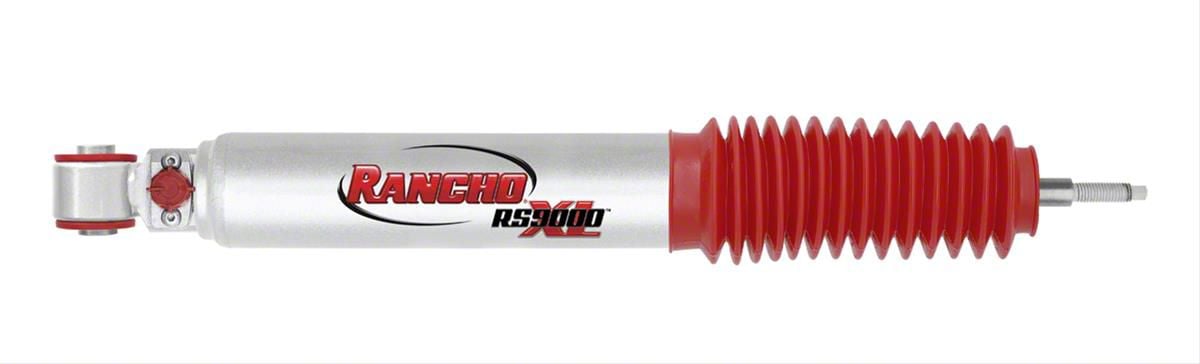

Rancho RS9000XL Front Shock for 5 to 6-Inch Lift (11-16 4WD F-250 Super Duty)Find parts that fit my vehicle
Item SD23750
Our Price
$158.13 each
Military, Medical & First Responders
$7.91 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- New
- Silver
- Telescopic
- Mounting Hardware Included
- Extended Length 26.54 In
- Shock Stroke 9.62 In
- Lower Mount Type Loop Bushing And Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
- Upper Mount Type Stem Mount - 2 5/8" Stem Length X 1/2"-13 Thread Pitch
- Boot Included
- Gas Charged
- Body Diameter 2.38 In
- Compressed Length 16.92 In
- Travel Length 9.62 In
- Painted Finish
- Nitrocarburized Shaft Material
- Center Of Loop Rod End Measuring Point
- Base Of Stem Shock Absorber Body End Measuring Point
- Steel Body Material
- Rod Diameter 0.709 In
- Silver Body Color
- Steel Cylinder Material
- Tri Tube Internal Construction Type
- Performance Grade Type
- Silver Cylinder Color
- Adjustable Damping
- Adjustable Rebound
- Dust Shield Included
- Rubber Dust Shield Material
- Manual Damping Adjustment Type
- Dust Shield Diameter 2.99 In
- Upper Mount Code S51
- Lower Mount Code LS47
- Hydraulic Lockout No
- Shock Absorber Bore Size 1.26 In
- Progressive Valving Type
- Adjustable Compression
- Self-Leveling No
- Passive Suspension
- Painted Cylinder Finish
- Parts Pack Included
- Spring Isolators Included
- Spring Seat Included
- Red Dust Shield Color
- Fits 11-16 4WD F-250 Super Duty
| Brand | Rancho |
| Shock Type | Adjustable |
| Shock Lift Height | 5 to 6-Inch Lift |
Description
Premium Suspension Control. The Rancho Front RS9000XL Shock is a high-quality adjustable shock absorber designed to deliver superior ride control and performance. It is ideal for on- and off-road driving, towing, and heavy hauling, providing enhanced damping flexibility to improve vehicle stability and comfort.
Construction and Appearance. This shock features a durable steel body with a painted silver finish and a nitrocarburized shaft for resistance to corrosion and damage. The tri-tube design filled with all-weather fluid ensures cooler operation under extreme conditions, while the inclusion of a polyurethane rebound bumper, rubber dust shield, and a long-lasting protective boot contributes to its longevity and smooth performance.
Installation. Installation of the shock is straightforward and does not require drilling, making it suitable for experienced DIYers or professional mechanics. All necessary mounting hardware is included to facilitate a hassle-free setup.
Warranty. This product comes with a limited lifetime warranty, underscoring its reliability and durability.
Application. Specifically designed to fit 11-16 4WD F-250 Super Duty models, this shock accommodates vehicles with front raised heights ranging from 5.0 to 6.0 inches. It is intended for use until depletion, after which a different model should be used.
Rancho RS994048
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Front Shock
4.7
Customer Reviews (188)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.2L V8 - 11, 12, 13, 14, 15, 16
- 6.7L V8 Power-Stroke - 11, 12, 13, 14, 15, 16
