Justin: The Luminix LED Front Emblem that we have here today will be a great choice for the 2015 through 2017 F150 owners who might be looking to black out that traditional blue oval while adding some very cool LED accent lighting in the process. Now, this officially licensed Ford logo will deliver that cool blacked out look along with the super bright LED Ford lettering all for right around that $180 price point. Installation on the other hand will be a plug and play job to the fuse box but will require the removal of that front grille in order to gain access to the emblem itself. So, therefore, site is gonna kick things up to a middle of the road two outta three wrenches on the difficulty meter and call this one at least an hour to complete from start to finish, probably a little bit more. But nevertheless, guys, hang out with me for a bit and we'll walk you through that job later in the video.So, this is a cool product that I feel kills two birds with one stone, right? Now, on the surface this emblem is gonna change out that more traditional Ford blue oval emblem to a more sinister black emblem, while still maintaining the white lettering. And this is a modification I think a lotta F150 owners enjoy doing for obvious reasons, it just looks awesome. But there is more to this emblem than obviously meets the eye, right? Once powered up, that white Ford lettering comes to life, thanks to the super bright LED lighting that shines at a 6500K color temperature, which is gonna be that bright white light with just the smallest touch of blue. But most importantly here, gang, it's going to be very bright. In fact, this is a perfect time to remind you guys, check out the customer submitted images here on the site, read up on those reviews because it's a great way to get a better idea of what the color temperature will look like for one, but just how bright this puppy will be once it's fired up.Now, as far as the materials and build are concerned, well, you're looking at a very durable polymer material, basically a hardcore plastic which has been given a waterproof rating of an IP69K. Now, that's the highest achievable, so therefore you're not gonna have to worry about those LEDs being affected by driving in a heavy rainstorm or maybe if you take your truck off-roading quite a bit, you go mobbing through some deep puddles, definitely not a concern here. Now, one very important thing to mention, guys, is that this particular option is only going to apply to the 2015 through '17 trucks without a forward-facing camera. So, just one thing to keep in mind when looking at your different options here on the site. Also, while you're looking at different options on the site, if you really like what this particular emblem brings to the table as far as style and features, you can also grab a matching rear emblem, basically identical to this, just designated for the rear tailgate, of course, and it is available here at AT for a very similar price point as the front.But now we want to get into the actual installation portion of the video. And again, the emblem itself will be plug and play with the fuse box in your F150, but it is gonna require some legwork to get in place in the first place, right? You gotta remove that grille, swap out the emblems, run your wiring, so check out our detailed walkthrough and tool breakdown right now.Man: The tools used for this install are a ratchet, clip removal tool, needle-nose pliers, 10-millimeter socket, 8-millimeter socket, 7-millimeter socket, and a T30 Torx bit.So, for the first step of this install we're gonna need to get the grille removed from the front of the vehicle so we can put it on the table and install our light kit and run our wires. It's a pretty simple process and you don't need a whole lotta tools to accomplish the job and I'm gonna walk you through the while process. So, let's get started.So, I'm gonna start with my clip removal tool and pull out the clips that hold the upper rad cover on. This will gain access to the grille hardware so I can remove that and pull the grille off the truck. Next, I'm gonna use my clip tool again and a 7-millimeter socket to remove the one clip and two screws that hold the headlight trim bezel onto the truck. Those two 7-millimeter screws are located here at the corner of the wheel arch and I'll just use my 7-mil socket to pull those out. And now, just repeat that process on the other side of the grille.Now, I can unplug my active shutter, my ambient air temperate sensor, and remove the four 10-millimeter bolts along the top of the grille. Now, we can use our clip tool again to unclip the three clips along the side of the grille that hold the flexible air dam to the side. Ours is a little bit messed up here from having been removed so many times, but there are three here, one at the top, one in the middle, one at the bottom. Now, I can take my 8-millimeter socket and remove the two screws at the bottom corners of the grille and I should be able to remove my grille after this. Now, I'll just pull up and out and my grille should come right off.I'm gonna start by removing the four clips across the top of this grille here. I'm gonna use my clip tool again and just pop those outta place. Next, I'll take my 10-milimeter socket and remove the four 10-millimeter nuts located at each corner of the grille on the backside. And finally with my T30 Torx socket, I'll remove the one screw that holds the two halves of the grille together. And now I can separate the two halves.With the two halves separated, that exposes the hardware. I'm gonna need to remove the emblem from the grille. I'm gonna use my 10-mil socket and remove these three nuts. Now, I can screw the supplied studs into the back of my light up emblem. And once I have those installed I can fish my wire through the slotted hole in the grille. Flip it over and install my hardware. Now, I can install the nuts that are supplied with the kit and tighten them down with an 8-millimeter socket.So, with my new emblem installed into my grille, I'm ready to reassemble the two halves of the grille together so I can put it back onto the truck. I have the wires running up towards the top where my connectors are for my active shutter and my ambient air temperature sensor, and I'll run my wires off of my fuse box along the wire harness for those two plugs, and it should all work out pretty well.So, I'll start by reinstalling my T30 Torx bolt and then I'll move onto my four 10-millimeter nuts on the corners of the grille. Now, I can reinstall the four clips across the top of the grille. And once I've done that, I can move on to running my wires off of my fuse panel.So, this kit provides you with the wiring that you'll need to tap into your fuse box and run it to your new emblem on your grille. And what they're gonna have you do is tap into fuse number 18, which is this 10 amp fuse right here. You'll just need a pair of needle-nose pliers and you can gently grab that fuse and pull it out of the box. Once you have it out, now you can just insert the removed 10 amp fuse from the empty spot into the fuse tap here, and then you can install it back into the same fuse location. Now, I'll just reinstall my fuse cover and I can run my wires up to my grille.So, this kit provides you with the power wire that you'll need to run off of your fuse box up to your emblem. It also gives you the ground wire that you're gonna need to hook up to your emblem as well. On one end of the wire is the hookup that you'll need to plug it into the new emblem, but on the other end is a bare wire. So, what I did was crimped on an eyelet so that I can bolt this down to a chassis ground. Now, you can run this to your battery or you can hardwire it into a ground circuit on your wire harness, but that's up to you. For this purpose, I'm just gonna run this to a chassis ground and bolt it down.So, I'll just fish this wire through the way I had my power wire run. And as you can see, I'm following along with the wire harness that's used for the ambient air temp sensor and the active shutter on the grille, and that way I can zip tie my new wire harness to an existing harness. And I'll just run this over to this chassis ground over here next to the battery. Now, I'm just gonna zip tie my wires into place along the existing wire harness and that should keep everything secure and outta the way. Now, I'm just gonna use my 8-millimeter socket to remove this bolt for the chassis ground and I'm gonna hook my ground up to that.Now that I have all my wires run and secured in place, I can start reinstalling my grille with the factory hardware. I'll start with my four 10-millimeter bolts across the top of the grille and move on to my 8-mils at the bottom corners. Now, I can clip in my flexible air dam on the sides of the grille and reinstall my headlight trim. Now, I can use my 7-millimeter socket to reinstall the two 7-millimeter screws on each wheel well. Now, I can make the connections for my emblem as well as my active shutter and my ambient air temp sensor. Once I have those connected, I can reinstall my rad cover and all my clips. Finally, I can just reinstall all the clips that hold my rad cover into place and wrap this install up.And that's gonna wrap up this review and install of the Luminix LED Front Emblem, fitting your 2015 to 2017 F150 without forward-facing cameras. Thank you for watching. And for all things F150, keep it right here at americantrucks.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation

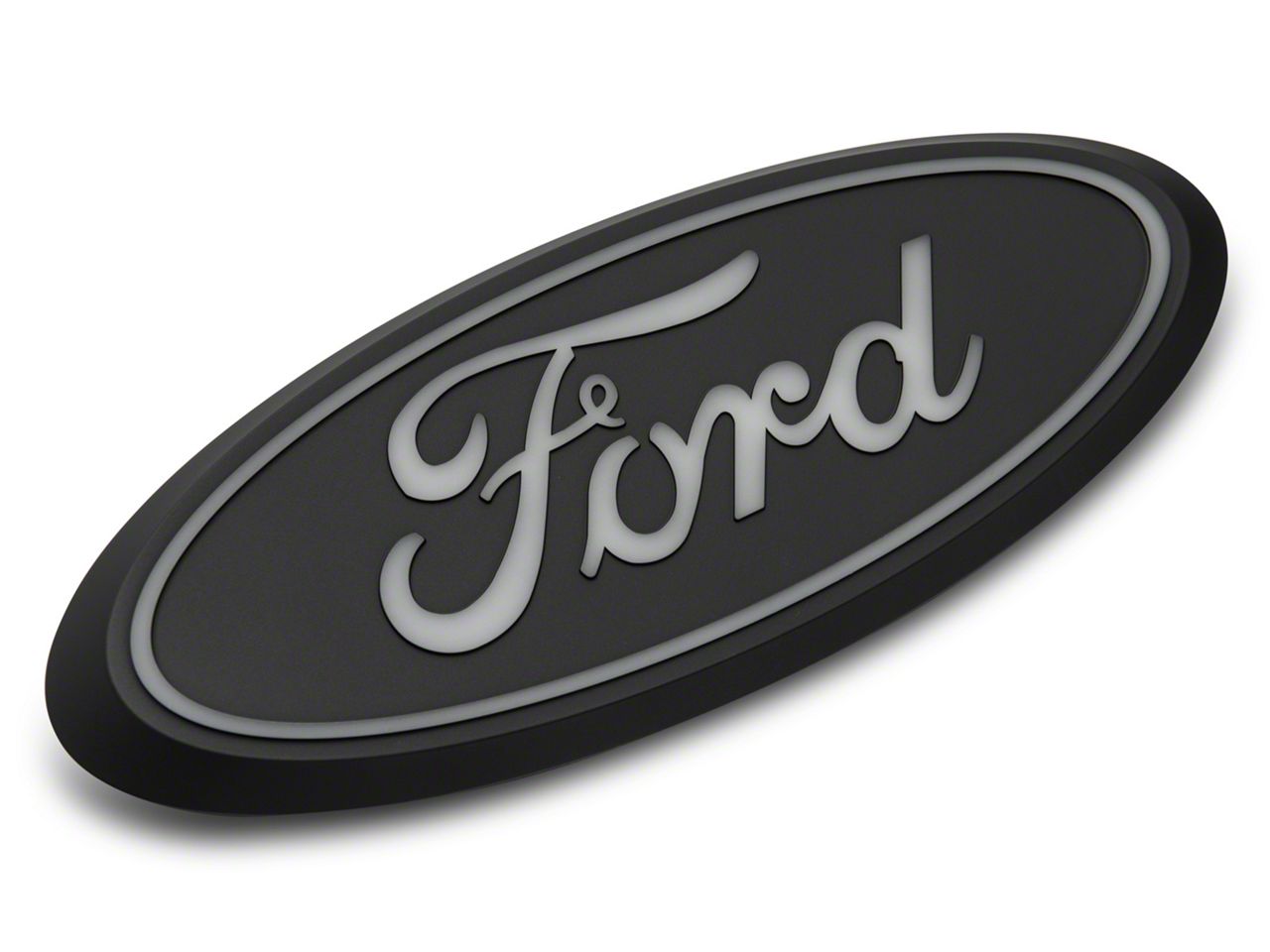

Aesthetic Upgrade. Change the way your F-150 looks with this illuminated Luminix LED Front Emblem. Designed for front grille placement and featuring the Ford logo, this illuminated emblem will give your F-150 that nice, custom look. As an added bonus, the LED lights on this Luminix LED Front Emblem will help other drivers spot you at night.
Quality Construction. Manufacturer manufactures this Luminix LED Front Emblem using only quality materials to ensure long-lasting use. This emblem is then coated with a black finish for superior corrosion protection.
Officially Licensed by Ford. This Luminix LED Front Emblem is officially licensed by Ford. It features the classic Ford script logo on the grille emblem.
Comes With a 2-Year Limited Warranty. This Luminix LED Front Emblem comes with a 2-year limited warranty. This warranty does not cover defects from mishandling, abuse, neglect, and more. For additional information, please check the manufacturer's manual.
Application. This illuminated Luminix LED Front Emblem is designed to fit 2015-2017 Ford F-150 models with or without a forward facing camera, as well with the 2018-2020 F-150s without a forward facing camera.
