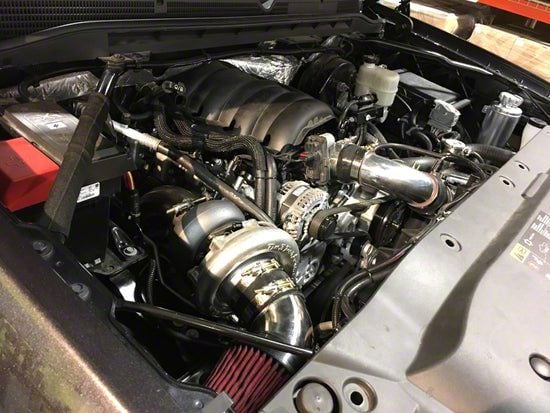

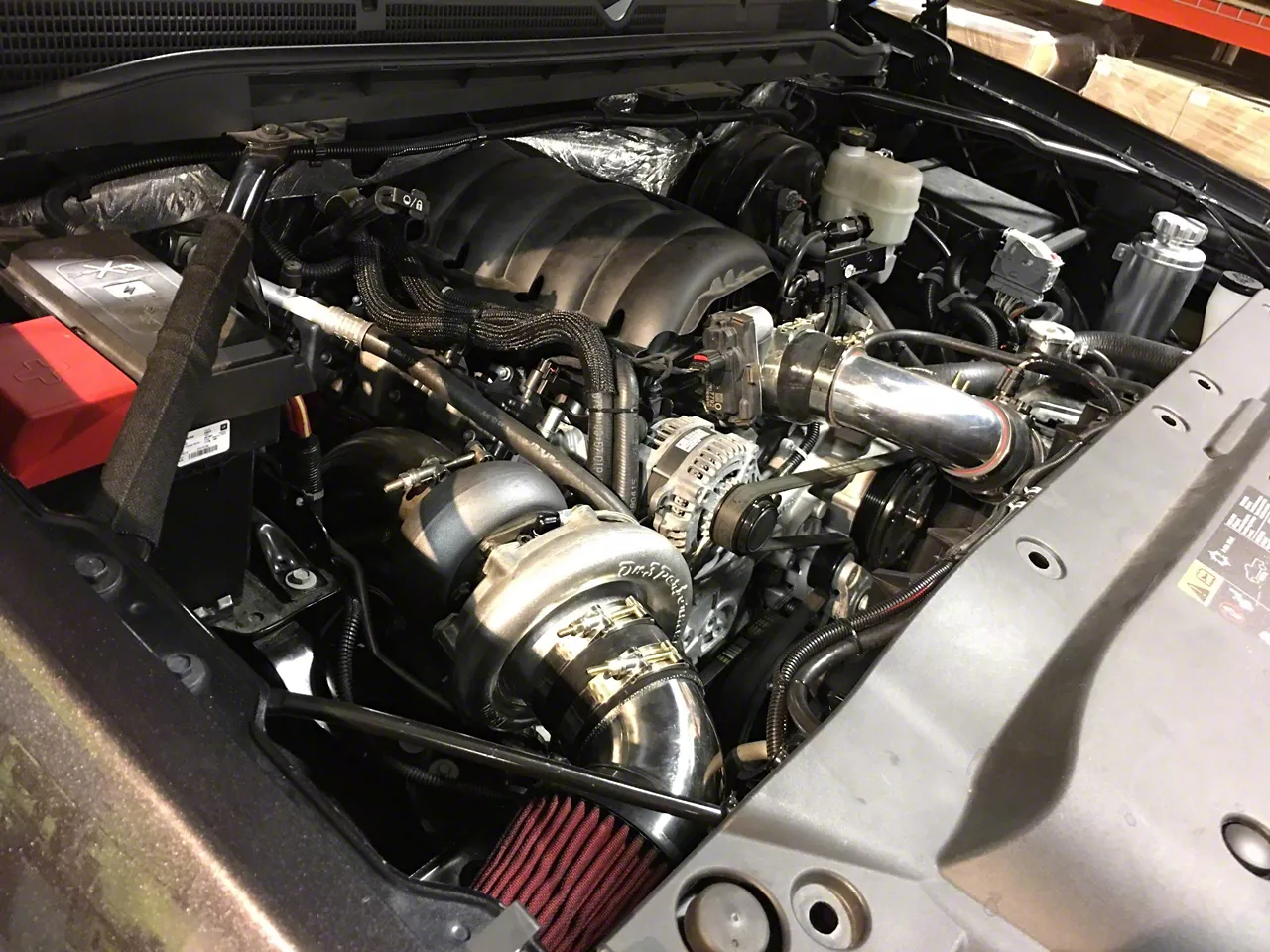

On3 Performance Single Turbo System with 7875 Billet Wheel Journal Bearing Turbo (14-18 5.3L Silverado 1500)Find parts that fit my vehicle

Item S220746-D
Product Image
$0.00
Our Price

$2,998.00 - $3,447.00

Military, Medical & First Responders $149.90 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • On3 Performance Single Turbo System With 7875 Billet Wheel Journal Bearing Turbo
      • Cast Stainless Steel Turbo Manifold (Divided Bank-To-Bank Design)
      • Gen 2 Cast Stainless Header
      • On3 Performance 70 Millimeter Journal Bearing Turbocharger (Upgradable To 76 Millimeter Or Larger)
      • Three Inch To Three And One Half Inch Stepped 304 Stainless Steel Downpipe (16-Gauge Wall)
      • Three Inch 304 Aluminum Cold Side Tubing (Bead Rolled)
      • Five Ply Silicone Couplers
      • Stainless Steel T-Bolt Clamps
      • Air-To-Air Intercooler (Standard 3.5 Inch Core Or Optional Race Core)
      • On3 Performance 44 Millimeter V-Banded Wastegate
      • Custom Turbo Oil Drain System Available (Optional, Uses Electric Oil Pump With CNC Billet Oil Fill Cap)
      • Compatible With Factory Driver Side Manifold (Tubular Upgrades Available)
      • Factory Exhaust Adapter Included
      • Intercooler Options Designed To Maximize Grill Space And Cooling Efficiency
      • Turbo Manifold Designed For 4x4 Clearance (Transfer Case And Driveshaft)
      • One-Year Limited Warranty
      • Hard Installation
      • Fits 2014 to 2018 5.3L Silverado 1500

      Description

      High-Output Turbocharging Solution. The On3 Performance Single Turbo System with 7875 Billet Wheel Journal Bearing Turbo is engineered to dramatically increase the performance potential of your 2014 to 2018 5.3L Silverado 1500. This all-in-one turbo kit delivers aggressive power gains with a 70mm billet turbo (upgradable to 76mm or larger), while offering compatibility with 4x4 setups and factory manifolds. Whether for daily driving, towing, or drag strip use, this system transforms your Silverado into a serious performance machine.

      Construction and Appearance. Featuring a cast stainless steel divided bank-to-bank turbo manifold and Gen 2 stainless header, this kit includes a robust stepped 3" to 3.5" downpipe made from 304 stainless steel and bead-rolled 3" aluminum cold side tubing. High-quality five-ply silicone couplers and stainless steel T-bolt clamps ensure leak-free operation under boost. The included On3 44mm V-banded wastegate offers precise boost control, while the air-to-air intercooler (with optional race core) provides efficient charge-air cooling. The optional CNC-machined oil drain system simplifies turbo lubrication routing for boosted reliability.

      Installation. Installation is rated as hard due to the complexity of fitting a full custom turbo system. Designed for 4x4 clearance and compatibility with the factory driver-side manifold, the system includes all major components, but professional installation is highly recommended for proper tuning, oil routing, and fitment.

      Warranty. Backed by a one-year limited warranty from On3 Performance, covering manufacturing defects under normal use.

      Application. This On3 Performance Single Turbo System with 7875 Billet Wheel Journal Bearing Turbo fits 2014 to 2018 Chevrolet Silverado 1500 models equipped with the 5.3L V8 engine.

        On3 Performance 1417-1519

        1417-1518

        1417-1517

        1417-1516

        CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 6 Hours

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) On3 Performance 70 Millimeter Journal Bearing Turbocharger
      • (1) Gen 2 Cast Stainless Header
      • (1) Custom Fabricated Cast Stainless Steel Turbo Manifold
      • (1) Three Inch To Three And One Half Inch Stepped Downpipe (304 Stainless Steel)
      • (1) Stainless Steel Wastegate (44 Millimeter V-Banded)
      • (1) Air-To-Air Intercooler (3.5 Inch Core Standard)
      • (1) Cold Side Aluminum Tubing Kit (Three Inch, 304 Aluminum)
      • (1) Set Of Five Ply Silicone Couplers
      • (1) Set Of Stainless Steel T-Bolt Clamps
      • (1) Factory Exhaust Adapter
      • (1) Turbo Feed And Drain Line Kit

      Tech Specs

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Silverado 1500

      • 5.3L V8 - 14, 15, 16, 17, 18
