Installation Time
(approx) 6 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

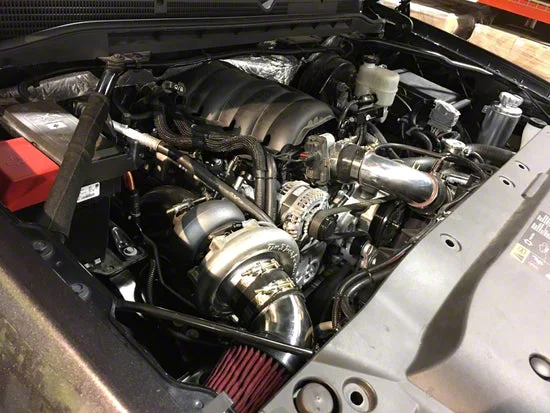

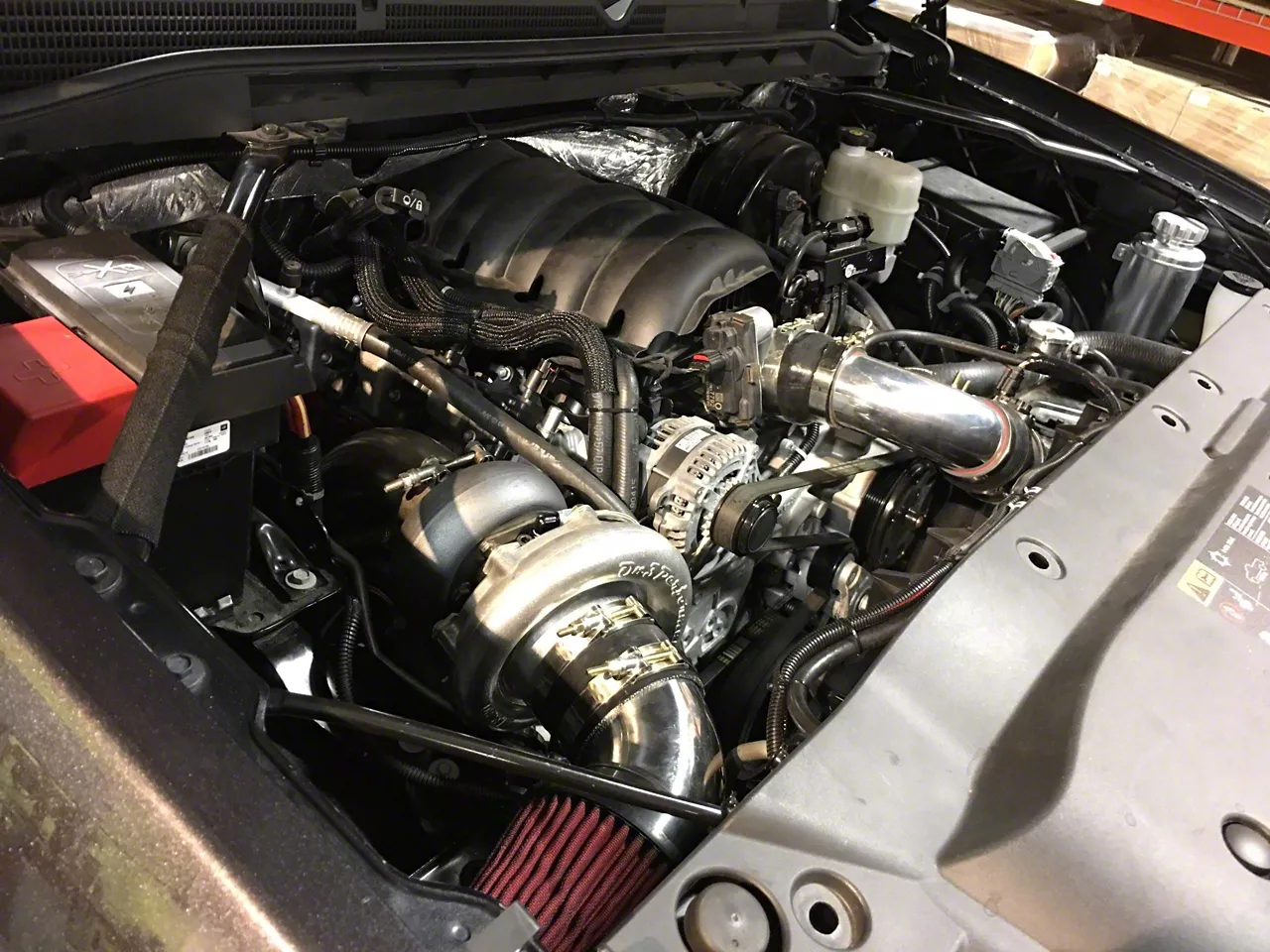

On3 Performance Single Turbo System with 7675 BMF Billet Wheel Ceramic Ball Bearing Turbo (14-18 5.3L Silverado 1500)Find parts that fit my vehicle
Item S220748-A
Our Price
$3,499.00 - $3,948.00
Military, Medical & First Responders
$179.40 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Bolt-On Upgrade Adding Around 250+ Rear Wheel Horsepower
- Utilizes Factory Driverside Manifold With Custom Cast Stainless Steel Turbo Manifold
- Gen 2 Cast Stainless Steel Header For Durability And Heat Resistance
- Crossover Design Clearing 4x4 Z71 Transfer Case And Driveshaft
- Includes On3 70mm Turbocharger With Options Up To 76mm BMF And CNC Billet Wheels
- Fully Divided Bank-To-Bank Exhaust Manifold For Accurate Tuning
- On3 44mm V-Banded Wastegate Positioned At T4 Flange For Boost Control
- 3.0” To 3.5” 304 Stainless Steel Stepped Downpipe Included
- Cold Side Uses 3.0” 304 Aluminum Tubing With Bead Rolled Couplers And Stainless T-Bolt Clamps
- Custom Air-To-Air Intercooler With Standard 3.5” Core (Supports Up To 600rwhp) And Larger Race Core Option
- Turbocharger Feed And Drain System Designed For Easy Installation With Optional Oil Drain Pump
- Supports Factory Mass Air Flow Sensor Up To 12-15psi Boost Without Maxing Out
- Fuel System Supports Up To 500-550rwhp On Pump Gas Without Upgrades
- Recommended Turbo Sizing Based On Engine Displacement To Avoid Turbo Failure
- Designed For Versatile Use Including Towing, Street Driving, And Drag Racing
- Improves Throttle Response And Mid-Range Power For Everyday Driving
- Fits 14-18 5.3L Silverado 1500
Description
High-Performance Turbo System. The On3 Performance Single Turbo System with 7675 BMF Billet Wheel Ceramic Ball Bearing Turbo significantly increases the power output of your truck. Designed specifically for the 5.3L engine, it delivers an additional 250 plus rear wheel horsepower, enhancing towing capacity and on-demand torque for a variety of driving conditions. This system is engineered for durability, performance, and responsiveness, making it an excellent upgrade for enthusiasts seeking reliable power gains.
Construction and Appearance. This turbo system features a Gen 2 cast stainless steel header that is twice as thick as traditional headers, providing exceptional durability and heat resistance. The hot side employs a fully divided exhaust manifold for precise tuning, while the cold side consists of 3.0” 304 aluminum tubing with bead-rolled couplers and stainless steel T-bolt clamps to ensure secure fitment. The intercooler is custom-made with a high-quality air-to-air core available in both standard and race sizes, finished with a clean, corrosion-resistant design.
Installation. The system is designed as a true bolt-on upgrade requiring minimal modifications. No oil pan drilling is needed when the optional oil drain pump is used. Most mechanically inclined individuals can complete the installation within a weekend, making this a straightforward performance enhancement.
Application. This turbo system is specifically designed to fit the 2014-2018 Chevrolet Silverado 1500 equipped with the 5.3L engine. It is not compatible with other engine sizes or model years outside this range.
On3 Performance 1417-1525
1417-1524
1417-1527
1417-1526
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) 7675 BMF Billet Wheel Ceramic Ball Bearing Turbocharger
- (1) Turbo Manifold
- (1) Intercooler
- (1) Downpipe
- (1) Wastegate
- (1) Set of Cold-Side and Hot-Side Piping
- (1) Set of Silicone Couplers
- (1) Set of T-Bolt Clamps
- (1) Complete Hardware Kit
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Silverado 1500
- 5.3L V8 - 14, 15, 16, 17, 18
