Fabtech 4-Inch Suspension Lift Kit with Front Dirt Logic 2.5 Reservoir Coil-Overs and Rear Dirt Logic 2.25 Shocks (21-24 4WD F-150 SuperCrew w/o CCD System, Excluding PowerBoost, Powerstroke & Raptor)
Item T570131
$0.00
Our Price
$4,572.69 (kit)
FREE Shipping + $99.00 Oversized Item Fee Market Price $5,349.99 You Save 15% ($777.30) Up to 10% off for Military & First Responders! See DetailsWill this fit your Vehicle?
Ship to: Columbus - 43215
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Suspension Lift Kit
- Provides Overall Lift of 4 Inches
- Enhances Off-Road Capabilities
- Maintains a Smooth Ride Quality
- High Tech Front Dirt Logic 2.5 Reservoir Coil-Over Shocks
- Premium Rear Dirt Logic Shocks
- Hardwearing Cast-Iron Steering Knuckles
- Rigid Forged Steel Rear Lift Blocks
- Sturdy Front and Rear Steel Crossmembers
- Accommodates up to 35-Inch Wide Tires
- Straightforward Installation
- Limited Lifetime and 1-Year Warranties
- Fits All 2021-2024 4WD Ford F-150 SuperCrew Models Without the CCD System and Excluding PowerBoosts, Powerstrokes & Raptors
| Brand | Fabtech |
| Lift Height | 4.00 Inch |
| Lift Kit Type | Suspension Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Lift Kit Includes Shocks | Shocks Included |
Description
Enhanced Off-Road Performance and Ride Quality. Negotiate the trails with ease with this Fabtech 4-Inch Suspension Lift Kit with Front Dirt Logic 2.5 Reservoir Coil-Overs and Rear Dirt Logic 2.25 Shocks. This suspension lift kit includes everything you need to lift your truck by 4 inches overall. This increased ride height allows your truck to take on tougher off-road trails while providing enough fender clearance to run those 35-inch off-road tires you’ve always wanted. What’s more, this lift kit comes with components designed to keep your ride quality at near factory levels, so you don’t lose daily drivability.
High Tech Front Dirt Logic 2.5 Reservoir Coil-Over Shock Absorbers. One set of components responsible for giving you a smooth ride are these Dirt Logic 2.5 reservoir coil-over shocks that will replace your front factory counterparts. These front coil-overs offer near-instantaneous damping response and a more precise handling feel, as well as extreme resistance to fade, even when driven hard. This translates to outstanding off-road performance and a firm but smooth ride quality on the highway. What’s more, these coil-overs are equipped with specialized cold-wound coil springs, providing exceptional support.
Premium Rear Dirt Logic Shock Absorbers. This lift kit also replaces your rear dampers with a pair of premium Dirt Logic 2.25-inch rear shocks. These rear shocks feature a monotube design providing faster damping response and precise handling to match the front coil-overs. Furthermore, these rear shocks feature 2.25-inch diameter stainless steel shock bodies for improved heat dissipation as well as exceptional corrosion resistance.
Hardwearing Steering Knuckles. This suspension lift kit provides its front lift courtesy of a pair of lifted steering knuckles. These steering knuckles feature optimized pivot angles to prevent bump steer and maintain ideal steering geometry and a factory track width. Moreover, these steering knuckles are cast from premium ductile iron, making them incredibly hardwearing.
Rigid Rear Lift Blocks. Raising your truck’s rear is the responsibility of twin lift blocks. These rear lift blocks are forged from high-grade steel offering maximum durability. These lift blocks are then finished in a protective powder coating for maximum corrosion protection and long service life.
Sturdy Front and Rear Crossmembers. This suspension lift kit also comes with front and rear crossmembers. These crossmembers are fabricated from high-quality steel, making them sturdy enough to reinforce your under chassis. More significantly, these crossmembers serve as mounting points for your factory lower control arms, helping maintain ideal suspension geometry and handling feel.
Straightforward Install Procedure. The individual components of this Fabtech suspension lift kit are designed to use factory locations as their mounting points. Minor grinding and cutting of certain components are necessary to properly fit some parts. You might also need to trim your front fender liners to accommodate the coil-overs remote reservoirs. Other than these steps, installation is a relatively straightforward procedure that’s accomplished using just standard hand tools.
Comes with a Limited Lifetime and 1-Year Warranties. This Fabtech suspension lift kit with Dirt Logic dampers comes with a limited lifetime warranty covering factory defects to the hard suspension parts and a limited 1-year warranty covering the dampers. Please visit the Fabtech website for more details.
Application. The Fabtech 4-Inch Suspension Lift Kit with Front Dirt Logic 2.5 Reservoir Coil-Overs and Rear Dirt Logic 2.25 Shocks fits all 2021-2024 4WD Ford F-150 SuperCrew models without the CCD System and excluding Power Boosts, Powerstrokes & Raptors.
Application Notes. The stock wheels and tires are not compatible with this lift kit.
Fitment:
- 2021 Ford F-150
- 2022 Ford F-150
- 2023 Ford F-150
- 2024 Ford F-150
Fabtech K2388DL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info

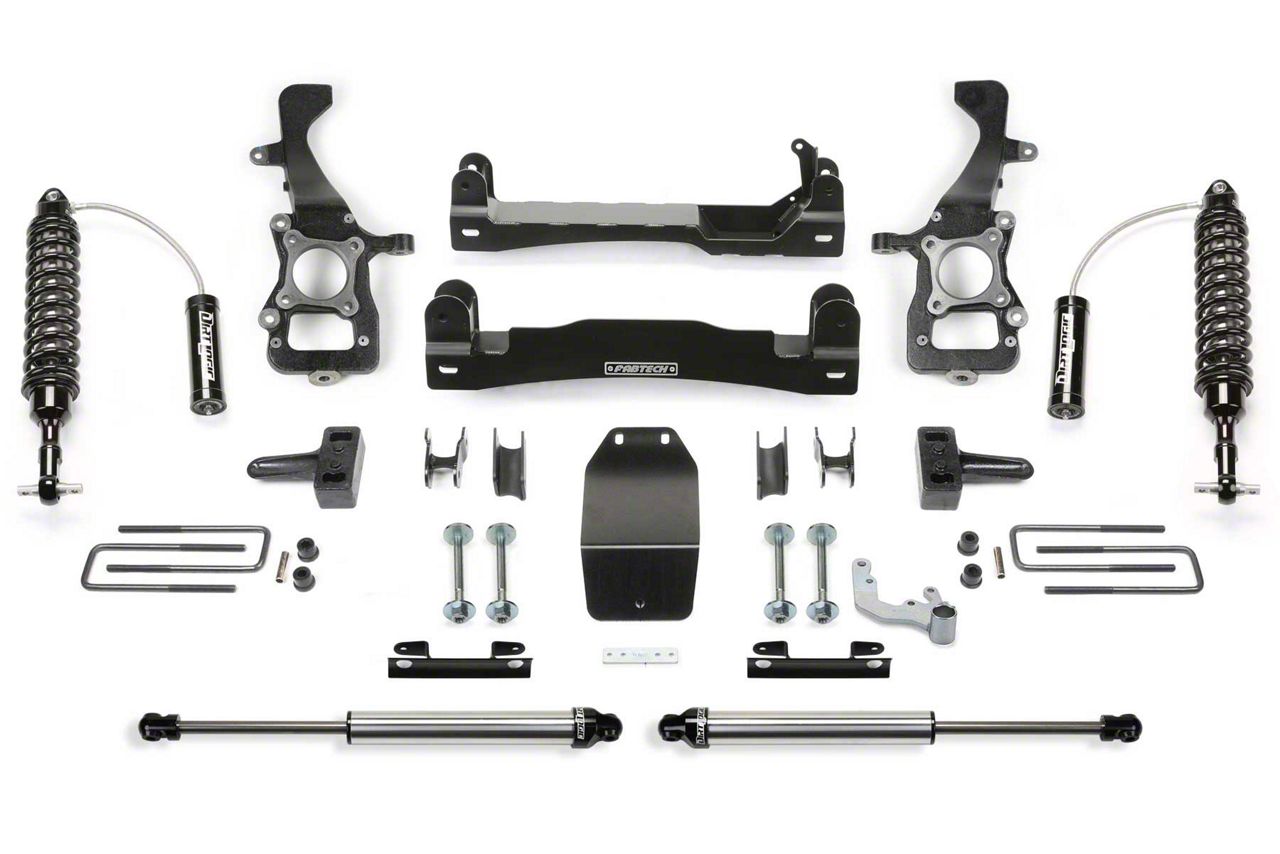

What's in the Box
- (2) Front Dirt Logic 2.5 Coil-Over Shock Absorbers
- (2) Rear Dirt Logic 2.25 Shock Absorbers
- (2) Driver & Passenger Side Steering Knuckles
- (2) Lift Blocks
- (4) U-Bolts
- (2) Front & Rear Crossmembers
- (2) Driver & Passenger Side Sway Bar Drop Brackets
- (2) Upper Differential Drop Brackets
- (2) Front Brake Line Brackets
- (2) Alignment Cam Kits
- (1) Rear Crossmember Differential Plate
- (1) Rear Brake Line Bracket
- (1) Skid Plate
- Mounting Hardware
