Find for your Tahoe

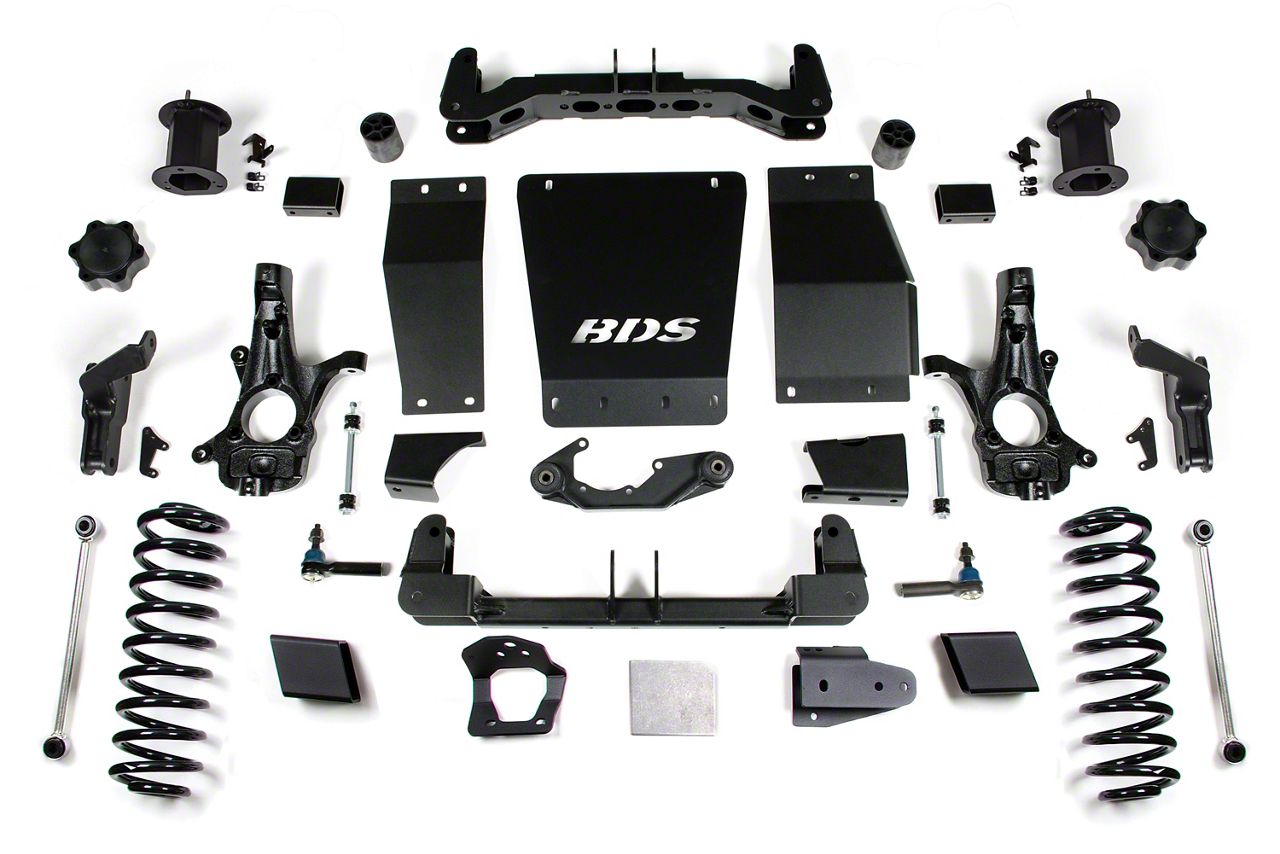

BDS 6-Inch Suspension Lift Kit (15-19 4WD Tahoe w/ Stock Cast Aluminum or Stamped Steel Control Arms & AutoRide or MagneRide)Find parts that fit my vehicle

Item CT36821
Product Image
42 Reviews of BDS
Our Price

$2,308.75

Military, Medical & First Responders $115.44 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

      • 6 Inch Suspension Lift Height
      • Specifically Built For Magneride Equipped Vehicles
      • Includes Top Mounted Strut Spacer For Front Lift
      • High Clearance 1/4 Inch Thick Steel Crossmembers
      • Multi-Piece Differential Relocation Brackets Included
      • Heavy Duty Skid Plates For Offroad Protection
      • CNC Machined Ductile Iron Steering Knuckles To Correct Geometry
      • Sway Bar Drops, Bump Stop Extensions, Brake Line Brackets Included
      • Pro-Ride Coil Springs In Rear For Improved Ride Quality And Performance
      • Anti-Sway Bar Links And Track Bar Relocation System Included
      • Adjustable Upper Control Arms To Adjust Pinion Angle
      • Rear Sensor Relocation Brackets Provided
      • Rear Shock Extensions To Retain Factory Electronic Dampers
      • Compatible With Tire Sizes Up To 35 Inch
      • Frame Bracket Modification And Welding Required
      • Recommended 20 Inch Wheels With 5 To 5-3/4 Inch Backspacing
      • Factory 17 And 18 Inch Wheels Cannot Be Reinstalled Due To Tie Rod Interference
      • AWD Models May Require Front Driveline Modification
      • Fits 15-19 4WD Tahoe With Stock Cast Aluminum Or Stamped Steel Control Arms And AutoRide Or Magneride

      Description

      Comprehensive Suspension Upgrade. The BDS 6-Inch Suspension Lift Kit enhances ride height and off-road capability for Chevy Suburban, Tahoe, and GMC Yukon 1500 4WD models equipped with Magneride. It elevates the vehicle for improved clearance while maintaining optimal handling and stability.

      Construction and Appearance. This kit features high-strength, laser-cut 1/4-inch thick steel crossmembers with a durable finish designed to withstand offroad abuse. CNC-machined ductile iron steering knuckles and robust coil springs are included to ensure reliable performance and lasting durability.

      Installation. Installation requires advanced mechanical skills including welding and frame bracket modifications. The process takes approximately eight hours and specialized tools such as a 36mm socket, strut compressor, and cutting equipment are necessary.

      Warranty. The lift kit includes a Factory Protection Plus drivetrain warranty to protect your investment.

      Application. Specifically engineered to fit 15-19 4WD Tahoe models with stock cast aluminum or stamped steel control arms equipped with AutoRide or Magneride suspension systems. This kit does not fit models without these control arm types or suspension configurations.

      BDS BDS751H

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.6

      Reviews of BDS Suspension Products (42)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Tahoe

      • 5.3L V8 - 15, 16, 17, 18, 19
      • 6.2L V8 - 18, 19
