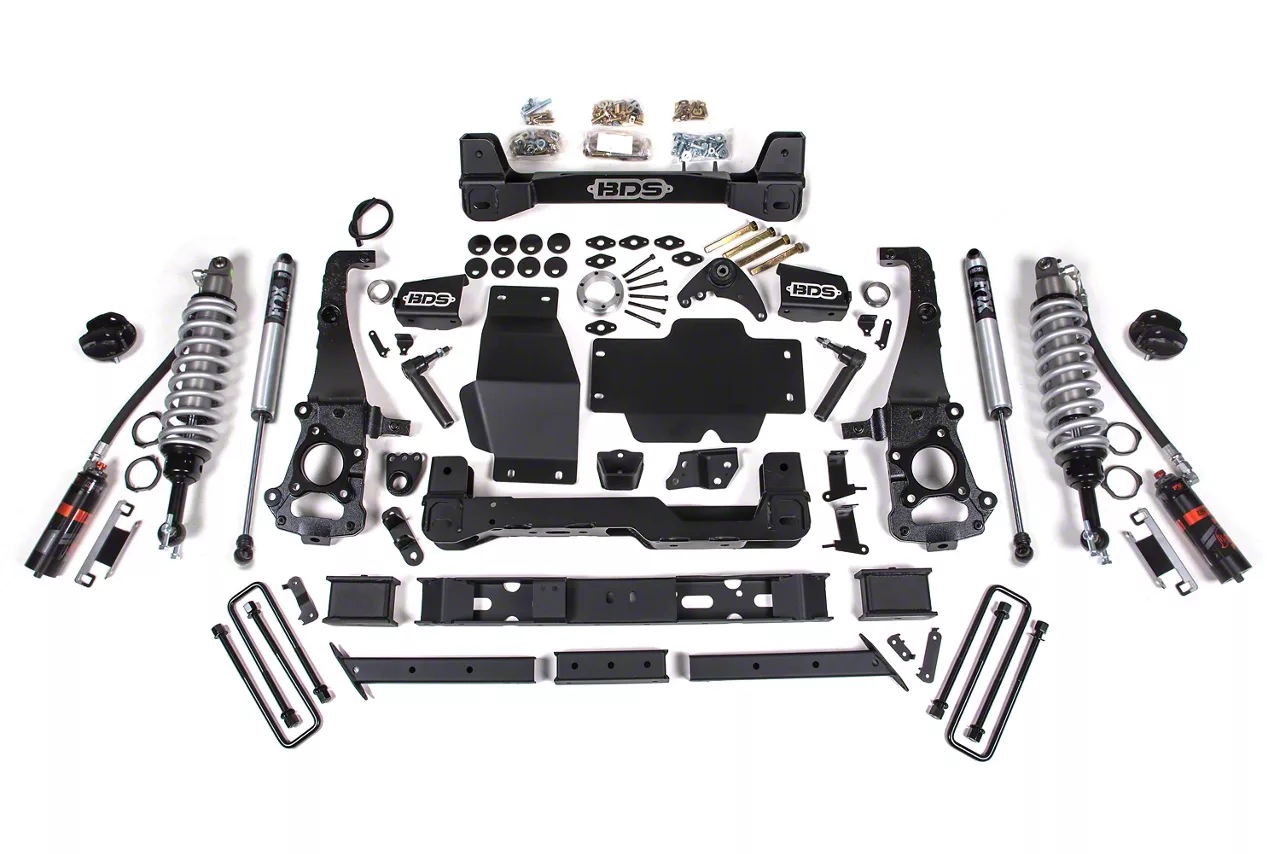

BDS 6-Inch Suspension Lift Kit with FOX 2.5 DSC Coil-Overs and FOX 2.0 Performance Shocks (19-23 4WD Ranger w/ Cast Aluminum)Find parts that fit my vehicle
Item FR43707
Our Price
$3,906.01 kit
Military, Medical & First Responders
$195.30 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Built to Outperform and Enhance Capability of Ford Ranger Trucks
- 6-Inch Suspension Lift Kit Featuring FOX 2.5 Coil-Over Shocks with DSC Adjustment
- Includes High-Clearance 1/4-Inch Thick Laser-Cut Steel Crossmembers and Top Mounted Strut Spacers
- CNC-Machined Ductile Iron Steering Knuckles for Corrected Geometry and ESC Compatibility
- Rear Lift Blocks with Longer U-Bolts and FOX 2.0 Performance Series Shocks
- Proprietary Coil-Over Shocks Designed for Increased Travel and Rough Terrain Absorption
- Comprehensive Front Suspension Lift with Skid Plate and Differential Relocation Brackets
- Designed to Provide Clearance for Tires Up to 35 Inches
- Includes Alignment Cam Bolts, Brake Line Brackets, and Sway Bar Relocation Brackets
- FOX 2.5 Coil-Overs Feature Dual Speed Compression Adjustments for On- and Off-Road Tuning
- High Strength Fabricated Lift Blocks and Replacement Transfer Case Cross-Member Included
- Recommended Tire and Wheel Sizes Specified for Proper Fitment and Function
- Requires Verification of Factory Knuckle Type: Cast Aluminum for This Kit
- Will Not Work on Tremor Model
- Stock 17-18-Inch Wheels Cannot Be Reinstalled After Installation
- Rack and Pinion Steering Sensitivity to Tire Choice Noted
- Requires Frame Bracket and Differential Modification
- Trimming May Be Required for Some Larger Tire Fits
- Fits 2019-2023 4WD Ranger with Cast Aluminum Knuckles
| Brand | BDS |
| Lift Height | 6.00 Inch |
| Lift Kit Type | Spacer Lift |
| Lift Kit Max Tire Size | 35 Inch |
| Brand of Shocks | Fox |
| Rear Lift Type | Spacer |
| Shock Style | Non-Reservoir |
Description
Premium Suspension Lift. The BDS 6-Inch Suspension Lift Kit with FOX 2.5 DSC Coil-Overs and FOX 2.0 Performance Shocks is engineered to elevate the 2019-2023 Ford Ranger, enhancing off-road capability and on-road comfort. This complete lift solution improves ground clearance, corrects suspension geometry, and delivers superior ride quality while accommodating up to 35-inch tires.
Construction and Appearance. The kit features heavy-duty 1/4-inch thick laser-cut steel crossmembers, CNC-machined ductile iron steering knuckles, and proprietary FOX 2.5 coil-over shocks with durable coatings for corrosion resistance. Components are precision fabricated and finished to withstand harsh off-road environments while maintaining an aggressive, professional look.
Installation. Installation is rated difficult and requires specialized tools including a 35mm axle nut socket and air hammer. Frame bracket and differential modifications are necessary. The process typically takes around 8 hours and involves cutting and drilling.
Application. Specifically designed to fit 19-23 4WD Ranger with Cast Aluminum.
BDS BDS1547FDSC
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Suspension Lift Kit
