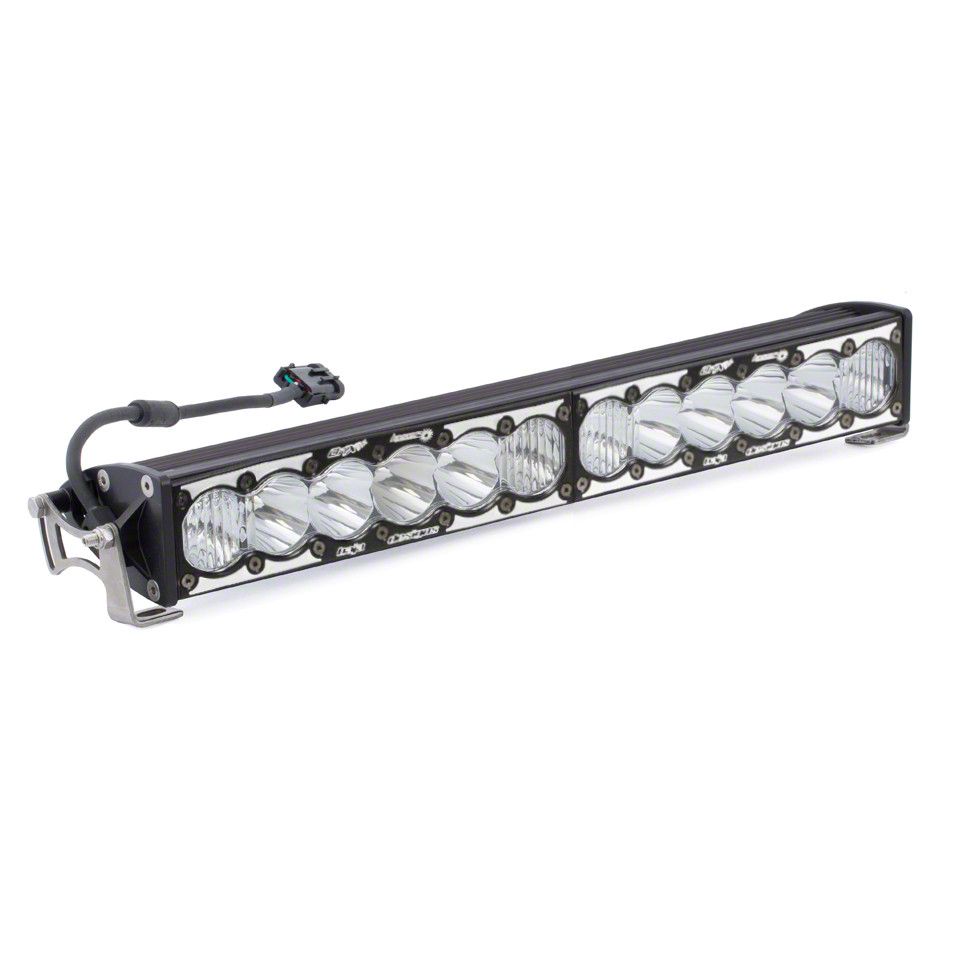

Baja Designs 50-Inch OnX6 Hybrid LED/Laser Light Bar; Hybrid Spot Beam; Clear (Universal; Some Adaptation May Be Required)
Item CT24147
Our Price
$4,222.95 each
Military, Medical & First Responders
$211.15 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Hybrid Spot Beam Pattern _x000D_
- Clear Lens Color _x000D_
- Available Sizes Range From 10 Inch To 50 Inch _x000D_
- Lighting Technology Features Two Laser Chips And Four Next Generation LEDs Per 10 Inch Segment _x000D_
- High-Speed Spot Optics Provide Far-Reaching And Smooth Light Projection _x000D_
- Capable Of Lighting Zones 2, 3, 4 Through 51 For Maximum Distance _x000D_
- Dual Switch Operation On 10 Inch Models Only _x000D_
- Single Switch Operation On Models 20 Inch And Larger _x000D_
- CopperDrive LED Technology Drives LEDs At 100 Percent _x000D_
- ClearView Provides Focused Lighting Precisely Where Needed _x000D_
- MoistureBlock Ensures Waterproof, Rain Proof, And Submersible Design _x000D_
- Daylight Rated 5000K Color Temperature For Reduced Driver Fatigue _x000D_
- Billet Machined Aluminum Bezel _x000D_
- Housing Made Of Aircraft Grade Aluminum With Mil-Spec Hard Anodize Finish _x000D_
- Hardcoated Polycarbonate Lens Material _x000D_
- Mounting Hardware Included, Constructed From Stainless Steel _x000D_
- Overvoltage Protection Built In _x000D_
- Exceeds MIL-STD810G Durability Standards _x000D_
- IK10 Compliant For Mechanical Impact Resistance _x000D_
- IP69K Rated Waterproof And Pressure Washable _x000D_
- Does Not Include Wiring Harness; Harness Part Number Is PN:640119 _x000D_
- High Output For 40 Inch And 50 Inch Bars Requires Two Harnesses And Adequate Vehicle Electrical Capacity _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Light Bar Width | 50 Inch and Up |
Description
Hybrid LED/Laser Lighting. The Baja Designs 50-Inch OnX6 Hybrid LED/Laser Light Bar features a Hybrid Spot Beam and Clear lens, combining advanced LED and laser technologies to deliver exceptional long-distance illumination. Designed specifically for off-road use, this light bar projects light zones up to 51, providing superior visibility at high speeds across various terrains.
_x000D__x000D_Construction and Appearance. This light bar's housing is crafted from aircraft-grade aluminum with a Mil-Spec hard anodized black finish for enhanced durability and corrosion resistance. It includes a billet machined aluminum bezel and a clear, hardcoated polycarbonate lens that protects internal optics from environmental elements while maintaining light clarity.
_x000D__x000D_Installation. Installation is straightforward with included stainless steel mounting hardware and requires no drilling, allowing for easy setup with basic mechanical skills. Wiring harnesses are sold separately. Larger models (40-inch and 50-inch) require two harnesses and adequate vehicle electrical capacity to operate effectively.
_x000D__x000D_Warranty and Application. The product is backed by a limited lifetime warranty, ensuring long-term reliability and performance. It fits universal applications; however, some adaptation may be necessary depending on specific vehicle requirements.
Baja Designs 455007
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Light Bar
