(approx) 30 Minutes
Simple installation for anyone.
$199.00 (each)FREE Shipping
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
Hey, guys. Adam here with americantrucks.com. Today, we're talking a closer look at and installing the UnderCover swing case in-bed storage system available for the '15 and '18 F-150. This is a really cool thing for F-150 owners to have who are looking for some additional in-bed storage that will protect your cargo from the weather elements, be pretty inconspicuous, work with every single tonneau cover on the market, and honestly, it's just really convenient. This particular one, as you can see, is a swing case that latches to the side of your bed and secures itself in place while you're driving but it also has extremely easy access to swing out without even having to hop into your bed to access it. A lot of in-bed storage nowadays is out by the rear window, which requires you to hop into your bed, go all the way over there, and put a little bit more effort into it. This is really, really convenient and supports up to 75 pounds. All you have to do, again, latch it into place, pull on your handle, and it pretty much just swings out for you. One of the cool features about it is it's lockable. This little thing up here flips up to access the keyhole. Rotate that and pop it open, that way you have a little bit of added security and you can keep that key on your key ring at all times and have full access to it when you wanna lock it. It also has additional compartments. It is pretty deep, and again, accommodates up to 75 pounds. It has a weatherproof seal so when it does rain, nothing is getting into it if you don't have a tonneau cover. When you do have it loaded up, you can throw your compartment back in there, shut it, give it a lock if you need to, and swing it right back into place. It's a really cool option for guys to have, maybe some really good valuables that they want to carry around all the time or if you're going camping and need that additional storage but still want access to your full bed. This is, in my opinion, one of the more convenient options. It's about 200 bucks and it literally took me about 15 minutes to install. It's extremely simple to do, one out of three wrenches on our difficulty meter. Very simple hand tools can do the trick and the hardware provided in the kit. And that is about it.I wanna show you guys how it gets done. So, let's just get to it. Tools needed for this install will be a cordless impact or a ratchet, 13-millimeter wrench, 8-millimeter socket, T30 Torx bit, T40 Torx bit. To kick off the uninstall here, what I'm gonna do is take my cordless impact, a simple ratchet would do the trick as well, and an 8-millimeter socket. We're gonna have to pop off our passenger side taillight to gain access to the back of these open holes. That way, we can throw the hardware included in the kit through the bolt. What we're gonna have to do is pop those two 8-millimeter bolts off of that passenger tail light, pull it off of the vehicle, unclip the harness, and set that aside.All right. Now that we're done with the uninstall, we'll be able to start installing our brackets for our storage kit. This bracket here is gonna go right on the side of your tailgate. Those three open holes are where you're gonna bolt this down. What I'm gonna do is take the center one because it is a little bit smaller, it'll hold it into place and align it for us. From there, we can go in from the back, throw our lock washer on and the nut provided in the kit. First up, we're gonna make sure these little knobs are facing the back end of the truck, we're gonna put the bolt through the middle hole and get that locked into place. That way we can just use that to align where to go in from the back, throw our lock washer on and our nut, tighten that one down.Now, putting in the top and bottom bolts for our bracket here, we're actually gonna use this big metal spacer for the back end. Those top and bottom bolts are a little bit bigger of a hole so we don't want our nut to collapse through that hole so this spacer is gonna make sure that it doesn't bottom out and it stays on the outside. So, I'm gonna put our bolt in through the top first. Our spacer is gonna go second to kinda close that gap a little bit. Next up would be our lock washer followed by the nut to cap it off. Perfect. Do the same thing for the bottom one but it's not necessary to use a spacer in the middle. You're only gonna be given two in the kit, one for the top, one for the bottom.All right, now we can take our Torx bit and tighten those down. You're also gonna wanna have a wrench or a ratchet on the inside to hold that nut in place. All right. Now we've got our T40 Torx bit and we're gonna tighten it down from the front using a 13-millimeter to hold the nut on the back.Next step here we're gonna install our secondary bracket which is gonna take a T30 Torx bit bolt. So I'm gonna take the bracket, it's gonna go right into the side wall of your bed and it's already got pre-threaded holes so it's gonna go right in there. We don't have to worry about a nut on the other side. The threading goes on the inside of that truck bed. First, I'm gonna take the top bolt, put it into place to get things going, use my cordless impact with a T30 bit. So we've already got those two brackets installed, one on your bed side and one on the tailgate. This side is going to allow the swing case to actually swing open and this side is just gonna latch it into place so that when you're driving, it's not moving all around.What we're gonna do is load our hinge pins onto these receivers on the swing case and then we'll be able to test it out. From here, all you have to do is line up those pins for the top and bottom, drop it into place, and as you can see, that will allow it to swing. We can latch it into place here and it's locked. To release it, you just pull on this yellow handle and swing it out. There's no need to hop into the truck bed, as I mentioned before, making this an extremely convenient storage case for your truck bed.Latch it into place, you have full access to the bed. Once you do swing it out, you'll be able to pop it open from here, shut it, and twist this to lock it into place. But if you pop that cap open, there actually is a physical lock and it comes with a key so that way nobody else can pop this open. It makes it a pretty secure case. Now, this isn't made of steel so it's not like you can't just cut through it. There isn't exactly the most protective but if you got some things you don't want getting wet, you don't want your bed to be exposed to, you can pop this right into your storage case, lock it up, and it's protected from the weather elements. That's a really good feature to have. Then when you're done, pop it back in, close your tailgate and you're good to go. The only thing we have left to do, reinstall our taillight and we'll be good to go.At this point, we have our factory taillight in hand. I didn't actually pop our harnesses off, I just twisted the bulbs right out of place. So I'm just gonna twist them back into their locations. All right. Now we can pop this back in. Now, your harness actually retains right to the side of your frame. The only other thing I wanna point out is that when it comes time to actually removing it, if you don't want your truck bed, you wanna have a little bit more space since it does take up a little bit of the width, you can just unclip it, lift it off the hinges, and set it aside. It is just that simple. When it comes time to throwing it back in, drop it back onto those hinges and lock it into place.It's a really cool thing to have. Like I said, 200 bucks, very simple install. If you wanna pick up the UnderCover swing case in-bed storage for your own F-150, you can do so right here at americantrucks.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation

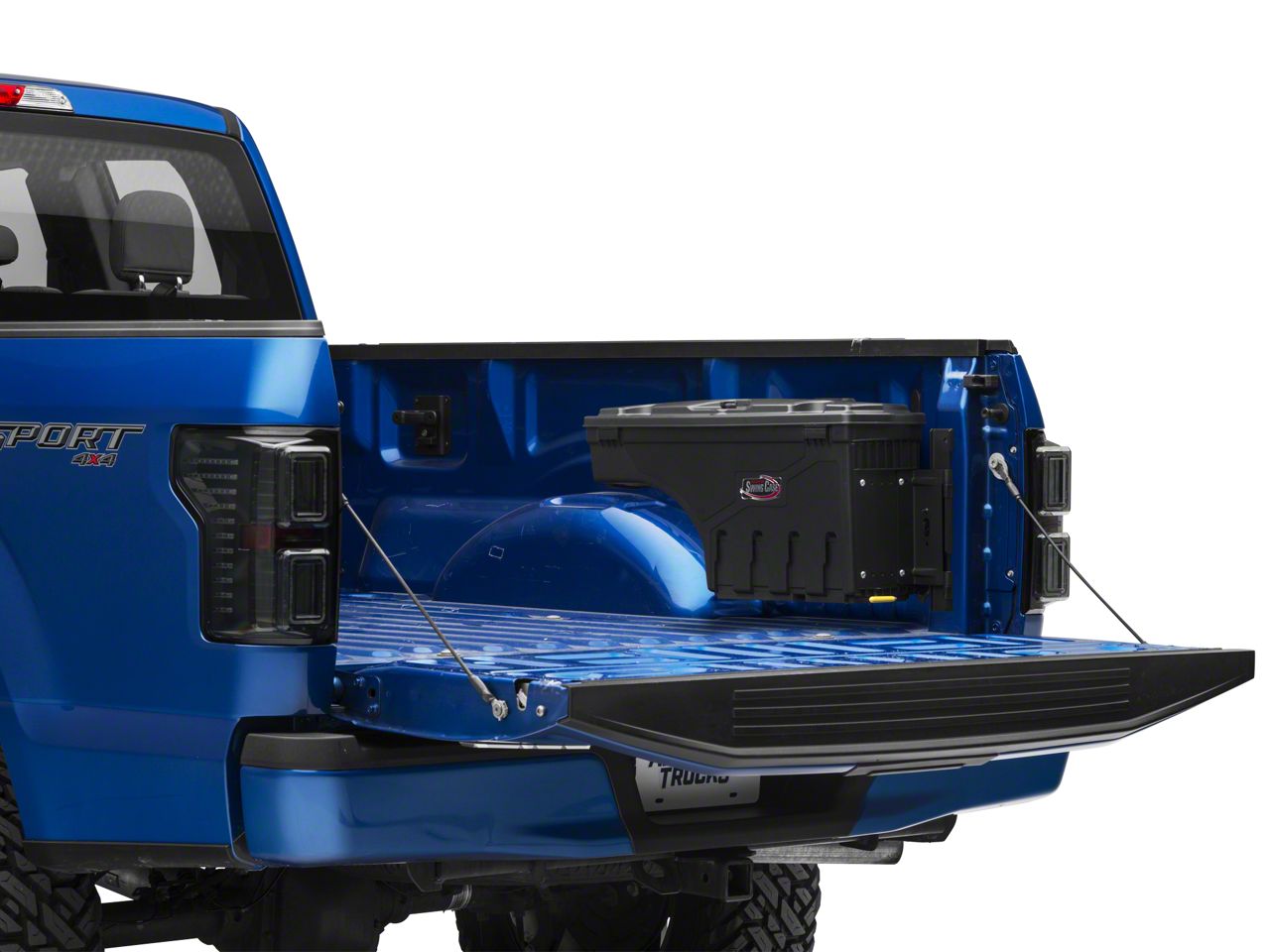

Necessary Upgrade. If you wish to upgrade your storage, then you should consider this Passenger Side UnderCover Swing Case Storage System Storage System. The Swing Case will add a mobile and readily available toolbox to your Ford truck and enhances overall functionality.
Superior Construction. Undercover manufacturers their swing case storage system from durable ABS molding to ensure that it survives all types of weather conditions. With the sturdy construction, your items will be protected irrespective of the challenging off-road terrains that you maneuver. Additionally, the swing case features a black textured finishing for impressive looks and resistance to rusting or corrosion.
Trouble-Free Installation. This SwingCase Storage system is constructed to be an easy to mount design that can be achieved by anyone. All the required mounting hardware are provided to ensure a hassle-free installation. All you need to do is just bolt this swing case to the truck bed wall on the passenger side and it is ready for use.
Warranty. The Undercover Swing Case Storage System carries a 1-year limited warranty from the manufacturer. This is an assurance that this storage system is devoid of any defects in manufacturing or material anomalies. Confirm warranty limitations and conditions by checking the manufacturer's warranty to avoid future disappointments.
Application. The Passenger side Undercover Swing Case is engineered to accommodate all Ford F-150 models released between 2015 and 2023.
Shop All Truck Parts And Accessories
Shop All Truck Bed Storage
Shop All Truck Exterior Accessories
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
(approx) 30 Minutes
Simple installation for anyone.
What's in the Box
10 More Questions
