(approx) 15 Minutes
Simple installation for anyone.
$599.99 (each)FREE Shipping
Saved - View your saved items
We're sorry. We couldn't save this product at this time.

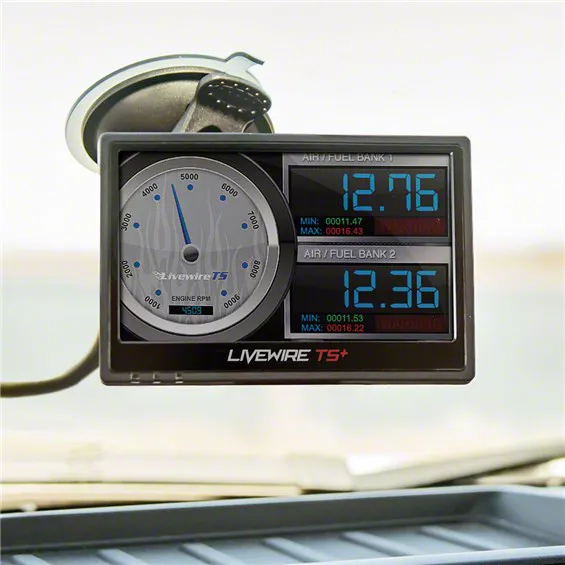

What's going on ladies and gentlemen? Travis from americantrucks.com. Today I'm gonna show you how to squeeze the most horsepower and torque on your 2015 or 2016 EcoBoost powered F-150 by pressing a couple of buttons on a tuner like this one. In fact, this is the SCT LiveWire TS+ Tuner. And this is gonna be the most expensive option. Let's just go ahead and address that elephant in the room. It comes in at around the $600 price point but guys, this is gonna be the most all inclusive tuner. In my humble opinion, this is also one of the most well designed and this is also one of the only tuners that you can buy that's currently set up like a proper smart device. It has a complete 4-inch HD color touchscreen display, no actual buttons to press, you're only using the touch display. It's got all kinds of cool preloaded tune options on here. You can also store up to 10 custom tunes in here so you can pretty much tune your truck for any application.There's a ton of other features on here that I'm gonna show you in a little bit but the basic gist of it is you can read and clear diagnostic trouble codes. It saves you a little bit of cash as opposed to having to go to the dealer. You can also monitor a ton of gauges in real-time again, all in HD. You can completely customize the layout and those gauges themselves. You can pretty much pull all the information out of the PCM so you have a full diagnostic profile of your truck while you're driving around. You can also install your tunes wirelessly. This is completely WiFi enabled. So, the same thing applies if you ever need to update the software or the preloaded tune firmware on the device as well. You don't have to plug this thing into a computer. You don't have to sit outside in the driveway for an hour either with this thing hooked up to a laptop or anything like that. It works just like any iOS or Android device. So, it's one of the modern tuners in my humble opinion.Now, obviously performance matters most, right? So, what kind of performance can you squeeze out of your truck just by pressing a couple of buttons on here? Well, we went ahead and we actually ran our truck on the dyno with the current wheels and tires that you see in the background there. So, our stock numbers we ended up making 299 horsepower and 332 pound feet of torque. We then installed the preloaded tune available on the LiveWire TS+. The only option that we selected was 93 octane in order to advance our timing as well as get better air and fuel. And we ended up running it on the dyno again. Everything else on the truck was left the same. So, our after numbers look pretty good guys. We ended up making 311 horsepower and 365 pound feet of torque, which makes for pretty respectable peak gains of 12 horsepower and 33 pound feet of torque. But what's really impressive are the curve gains. Pretty much from idle up to around 4000 RPM, we see very consistent curve gains over our factory run and our curve gains actually topped out at 31 horsepower and 41 pound feet of torque.Those are pretty impressive numbers. That's what you're actually gonna feel when you're driving around, when you're punching the pedal on rolling starts or at that stoplight. So, for a couple of button presses again, you do get a ton more horsepower and torque with this device. So, besides the available tunes, there's also a ton of other features on here. This thing actually supports a rear view camera if your truck does not come equipped with it. And the preloaded tune file in here also allows for a ton of customizing and adjusting. You can actually adjust timing on your own. If you're familiar with how to do so you can make changes to things like the rev limiter, your shift points. You can calibrate for things like new gears in the rear axle. You can also calibrate for things like new tires and wheels so you can make sure your speedometer is working correctly. And again, you have that data log option there for custom tuning and advanced troubleshooting. So again, one of the most all inclusive tuners.Go ahead and check it out more on the site. And if you decide to stick with the LiveWire TS+, you can actually come back in a little bit. I'm gonna show you guys how to get this thing hooked up to your truck, how to get it updated, and I'm also gonna teach you how to tune your truck and then I'll walk you through all the other features and functions step by step. It shouldn't take us more than 15 minutes. It's a very soft one out of three wrenches on the old difficulty meter. So, check back in just a little bit and we'll get started. Okay, so once you have your tuner, go ahead and pull it out of the box. You wanna grab the data cable, the OBD-II cable and plug the HDMI end into the back of the tuner. Then you wanna plug the other end of the cable into the OBD-II port located underneath the steering column. Now, if this is the first time using the tuner, we're gonna wanna make sure that it's up to date. So, before we actually tune our truck or do anything else, we're actually gonna pan over using these little navigation arrows on the left and right side of the screen and we wanna select Update.Now, once you select the update, you're gonna have to first configure your WiFi connection. It's pretty much like any smartphone. Simply select Configure WiFi and it's gonna scan for the available local WiFi networks. Now, you can see here we have all of our available WiFi connections. I can't show you guys how to actually connect because our network is already connected and ours works a little differently than normal. But you would select the appropriate connection. And if it has a key or a passcode that you need to enter it will prompt you to do so, then it will connect automatically again pretty much like any Android or iOS device. So, once you're connected to WiFi you can exit out of the configuration. Okay, so once you have your WiFi configured you would then select, Check for Updates. Now again, ours is already connected, we've already done so, so we don't need to do that. But basically, you'd follow the prompts under Check for Updates, the device will automatically scan for available updates from the cloud server and it will download all the necessary files and install them on the device.Once your device is up to date, you can exit out of here and we're actually gonna go back to our home screen here. We're gonna select Program Vehicle. This is where we're actually going to tune our truck. Now, when you go to program your vehicle, there's gonna be this quick little disclaimer notice, go ahead and click Continue on that. And it's gonna prompt you to make sure your key is in the ignition and in the on position if not already.If this is your first time using the device it's also gonna give you this little pop up at some point here. This is just letting you know how to navigate the user interface by using the touchscreen. Exit out of this little dialog box by hitting the Exit there in the top right corner. And that's gonna bring us to the home screen with our available preloaded tunes and any custom tunes that you may have purchased or installed. Now, we're only interested in what the preloaded tune can do for us today. So, we're going to select that for our vehicle. And at this point, the device will begin communicating with the PCM and it's gonna begin building that tune file.Now, once you come into the preloaded tune, you're gonna have to make some changes to some of the different options in here. The only one that you actually have to make a change to is fuel octane. You wanna select 91 or 93 octane. By default, it's gonna be listed at 87 octane. 93 octane is going to provide the most advancement in timing and it's gonna provide the best air and fuel mixture. So that's gonna provide us with the most performance. There are also some other options that you can make changes to in here. We have our speed limit, and we have our rev limiter. It looks like there's some other things we can change in here, including idle speed. And you can continue going down the list if you have other options available to you. But again, we're only interested in seeing what kind of performance we can get here. So, go ahead and update your fuel octane to the appropriate level and select approve. Now, it goes without saying before we actually install our tune, you wanna make sure you have the appropriate octane fuel in the tank.And before we click Continue, we're gonna verify any of the changes that we've selected for our preloaded tune file to make sure that they're applied once we hit continue. Now, it may ask you to cycle the key off and on during this process as well. This is the only time that you should be doing so.Okay, now at this point, the LiveWire is actually saving a kind of a screenshot, if you will, of the factory tune or the factory file on the PCM, that way if you ever want to untune your truck or go back to the stock, you can do so. Okay, now at this point, the LiveWire has prepared our tune file with the changes and selections that we've opted for. It has built the file and is now installing it on the PCM. Now, it is transmitting data to the vehicle. So at this point, it's very important that you don't interrupt this process. Doing so you could actually wreck your truck if you will, in which case you won't actually be able to turn the motor over in which case you have to get it flashed by the dealer with a recovery file.So again, very important, don't unplug the device from the OBD-II port. Also make sure your battery voltage is good before you begin the tuning process. And again, only operate the key in the ignition if the LiveWire prompts you to do so. Okay, now once the tune file is finished installing the LiveWire is gonna clear out any false diagnostic trouble codes that may have been triggered during the installation process. And then if everything goes well, which it should, you should get this little confirmation page here letting you know that our tune has been programmed successfully to the vehicle and that tells you you have to turn the key off. You don't have to, just click done if you want to continue using the device. But that's pretty much all you need to do to program your vehicle. Once you have the tune installed, if you ever need to return it back to stock for any reason, all you need to do is select program vehicle again, and you can see we have our return to stock option right here. It's the same exact process as a tune install, except we're uninstalling the tune.Now, if you guys want to stick around, I'm gonna show you all the other features here available with the TS+. Okay, so next up on our list are the performance tests. Performance tests are pretty cool [inaudible 00:09:37] kind of benchmark your truck's performance in real-time when you're actually driving around. So, you wanna select the performance test button and it'll bring you to the homepage for the available tests that you want to perform. So, each test has a little checkbox to it. You can actually perform all three tests at once if you want to, or you can just select one of the three or two of the three, whatever. We'll just select 0 to 60 miles per hour as an example. If this is the first time doing the performance test, by the way, you'll get a pop up box, it's gonna ask for you to input your gross vehicle weight just to make sure that the test is calibrated and displaying the information correctly when you perform it. Once you have that done, you can click continue after you've selected the test you want to perform.And it'll give you this little pop up here letting you know what each test is and what you have to do to complete the test. Once you've understood all of those instructions, you can close out this little box here. And it's actually gonna open up a home screen here and this is the actual test interface. So, all you need to do is make sure your truck is running. And you'll see you have three tests here. They're kind of hard to see because they're not highlighted yet. But once you complete each of the test, they'll actually highlight there. So, once you're ready to start rolling, all you need to do is hit Start, and you can begin performing the tests. So, for our 0 to 60 tests, you would accelerate from 0 to 60 miles per hour. If you have the braking test as well checked and then you would then break as quickly as you could from 60 miles per hour, and it will record that test. And the same thing applies for the quarter mile test. Once you're done performing the test, you can select Stop, and it will save that information as a data log file on the device.If you need to exit the screen, simply do a little hand gesture there to pull down and you can actually change your vehicle weight there. And you can select the Exit to exit testing screen in order to terminate the test information and save it on the device. You can also use real-time gauges while you're driving around. That's useful for monitoring vehicle performance. You can also data log in which case the LiveWire will save all the information that the PCM is monitoring and it will actually export that into a file that you can then view later. That's very useful for custom tuning and troubleshooting. But before we actually use our gauges and data logging, we have to select the appropriate vehicle category, which we're obviously we're using our EcoBoost truck so we wanna select Ford '08 gas newer and then click Continue. Okay, now it is also gonna provide some instructions on how to actually use the gauge screen and data log here, a single tap on the screen will allow you to do the drop down menu to make any changes and you can double tap on individual gauges to edit them.So, go ahead and close out that dialog box here. And now we actually have our gauge screen here. It looks very similar to our benchmark/performance screen here, but we have a couple of default gauges being displayed. We have our current battery voltage. Ours is reading a little bit high here because ours is actually hooked up to a tender currently. But we also have our coolant temp and then we also have a boost gauge here. So again, if you want to make changes to this, you can reset the minimum and maximum values that were last reported by pressing that as well. If you wanna begin data logging, real simple, all you need to do is select Record. You'll have this little record indicator here that's going to indicate that the device is now saving all the information that it's reading from the PCM. And if you wanna stop data logging, go ahead and hit Record again, it'll automatically save that file.And then we have a couple other options on here, including the layout and configuration for this screen. But before we get into that, let's look at individual gauges. Let's say we wanna change our coolant temperature. So, we're going to double tap that and that's gonna bring up the home screen for the individual gauge. So, you can see here we have the unit currently being measured, and we have the units that it's being measured in, and we also have our minimum and maximum ranges. That's how we actually kind of build the gauge, if you will. You can actually change these values to whatever you would like. But if we wanna actually change what we're looking at here, you can actually select item, and it's gonna pull up all the different available gauges that you can change to. There are a ton of different options on here. This is all the information that your PCM is monitoring in real time. We have all kinds of air and fuel and timing and all that good stuff in here. Let's just select a new one, just for the sake of example in this here. So, let's just go ahead and select our intake air temperature.And again we have our units in Fahrenheit. Real simply you can change that if you want to. Unfortunately Celsius is not available. But again, you can make any changes you want for how you want the gauge to display. Once you're happy with your settings, click Approve. You can see here we now have our intake air temperature. Even though our truck is off it is providing us with a value or a readout if you will. Now, let's take a look at how to change the layout and configuration here. So, we have our different gauge screen layouts, if you will. And this is our default gauge screen up here with one clock style gauge, two digital gauges. You can select different options and I believe you can select up to nine different gauges to view. They have digital. They have graph. They have all different combinations. Let's go ahead and select the digital gauge just as an example. You can see here it opens up our available gauges that we can monitor. And again it's the same process regardless of the layout.If you wanna make changes to an individual one, simply double tap it and it'll pull up that individual gauge screen. Now, the last option on here, it's not something that you'll probably use but since we did see it earlier we might as well explain it here. We have configuration. This is basically only gonna be necessary if you accidentally selected the incorrect vehicle category. So, if you find your gauges are not displaying correctly or you're missing information that should be available to view, then you wanna double check you have the correct vehicle category selected under configuration. And then again, if you want to exit this screen, simple, single tap and click Exit to go back to the homepage. Now next up, we have our vehicle functions. There are some other useful things you can do in here. This is one of my personal favorites. This is very useful for diagnosing any issues you may have with your vehicle. So, if you ever have a check engine light or any lights pop up on your dash that's gonna indicate you have a DTC or a diagnostic trouble code.So, if you do have one of those lights pop up, all you need to do is come under vehicle functions and select Read DTC Codes. You wanna make sure key's in the on position then the LiveWire will automatically scan the PCM. And it will spit out an alphanumeric code on this screen indicating what the underlying issue is. All you need to do is do a little bit of research to find what the problem is. A nice little way to chase some issues without having to go to the dealership and spend a little bit of cash just to have them scan it for you. Once you've figured out what the issue is, you can actually clear that code off your dash. Again, very straightforward. Just select Clear DTC, and just make sure the key's in the on position, and the device will automatically clear those codes. Now, we also have special functions here. This is not something you'll be using often. But I'll show you guys what's in here just so you can see. We have a KAM reset and we have a crank relearn. KAM reset is gonna basically provide the same effect as if you were pulling the terminal off of your batteries.So basically, if you need to do a hard reset on your truck for some reason, you can actually do it through here digitally by selecting KAM reset. That'll clear out the cache and the PCM. It'll default everything on the dash and all that good stuff. Crank relearn, guys, it's not something you ever wanna touch. This is really only something that a trained technician is gonna do and that's usually if you're getting some advanced engine work done. If you know what a crank relearn is I don't really need to explain it to you. And if you don't know what it is, well safe to say do not press that. There's really no benefit to doing so. Now, we're gonna pan over to the next window here, and this is more settings and information. Here we have some basic vehicle info that you can pull up here. Again, this is convenient for custom tuning, as well as you're troubleshooting things on your VIN. You also have your ECU strategy. You're gonna need that for custom tuning. You have some basic vehicle information on here as well.You can also input the vehicle weight from this screen if you need to calibrate something at any time. And we have our device information here as well. The device info is useful because it provides your current firmware version. It also has tuning status here. You can see we have our preloaded and custom tuning supported. We also have our current tune revisions and we also have the amount of unlocks and our married status. Married status indicates that the tune or that the tuner itself rather is locked to a vehicle. So, once you throw a tune on the truck, this device will now be married to that truck. You can't use the device to tune another vehicle unless you convert the existing vehicle back to stock. And a convenient way to check that, again is with the married status on here. And then we also have our device settings. Device settings is useful, that's gonna let you make changes to things like sound and display. You can set things up like the screen brightness for day and night. You can also change the theme on the device. They have a bright and a dark theme there so you can change the color scheme if you want to.And you can also turn on an ambient light sensor. That's going to allow the screen to automatically brighten and dim based on ambient light outside. If you wanna keep it at a fixed setting, just go ahead and turn that off. You can also turn the little beeps on and off if you'd like to and you can also enable and disable some of the power options on the device itself. You can also disable that key check if you're tired of the device asking you for the keys in the ignition. If you have it in there already, you can disable that as well. But the most important option on here is gonna be factory reset. Factory reset is gonna completely flush all the information in the device. It's gonna get rid of anything you may have built or created in here. It'll delete all of your data log files, etc. The only thing that factory reset won't do is untune your vehicle. If you ever wanna go back to stock you do have to go back to program vehicle in order to remove the tune itself.But besides that, if you wanna clear everything out of the TS+, maybe you want to give it to a buddy or use it on a different vehicle, make sure you do a factory reset through the device settings. And that's gonna cover all of the features and functions of the TS+. All right, so as you saw tuning the truck only took a couple of minutes and it's incredibly easy setting up everything else like those gauges and data logging, all that good stuff. So, I hope I helped you out a little bit, showed you how easy this thing is. That'll wrap up my review and install of the SCT LiveWire TS+, fitting your 2015 and 2016 3.5 liter EcoBoost Powered F-150. Be sure to check this thing out more on the site. And for all things F-150 keep it right here at americantrucks.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
Technical Note. This SCT LiveWire TS+ Tuner is not legal for use in California on pollution controlled vehicles.
Shop All Truck Parts And Accessories
Shop All Truck Tuners
Fitment: 2015 2016 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
(approx) 15 Minutes
Simple installation for anyone.
What's in the Box
|Memory Size:||N/A - Expandable||Custom Tunes Held:||10|
|Year:||All 2015-2016 3.5L EcoBoost||Model:||Livewire TS+|
|Manufacturer:||SCT||Special Features:||4" Full Color Touch Screen|
10 More Questions
Not compatible with Mac software
