Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

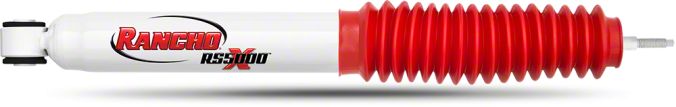

Rancho RS5000X Front Shock for 5-Inch Lift (17-26 4WD F-250 Super Duty)Find parts that fit my vehicle
Item SD4308-2
Our Price
$70.30 each
Military, Medical & First Responders
$3.52 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Unique, Exclusive Valving System With Advanced Compression Functionality
- Improved On- and Off-Road Handling and Performance
- Cross Tuned Technology With Exclusive Rebound Valving System
- Progressive Engagement Valving Custom-Tuned to Reduce Initial Impacts at Low Speeds
- 16mm Nitro-Carburized Piston Rod for Enhanced Scuff and Corrosion Resistance
- Double-Welded Loops at Stress Points for Added Durability
- 35mm Sintered Iron Piston for Enhanced Structural Integrity
- Includes Polyvinyl Protective Boot
- Large Twin-Tube Body Filled With All-Weather Fluid for Cooler Operation
- Operates in Temperatures From -40 to 248°F
- Polyurethane Rebound Bumper and Rubber Bushings for Smooth Ride Absorption
- Fluon-Banded Piston for Responsive Adjustment to Road Conditions
- Nitrogen Gas Pressurized to 150 PSI to Minimize Damping Performance Fade
- Compression Control Valve Custom-Tuned to Regulate Fluid Transfer and Absorb Impacts
- Low-Friction, Self-Lubricating Seal for Quicker Rebound and Smoother Compression
- Application-Specific Piston for Precise Control of Shock Motion
- Limited Lifetime Warranty Included
- Mounting Hardware Included
- Does Not Include Coil Over Springs
- Travel Length: 9.14 Inches
- Shock Stroke: 9.14 Inches
- Lower Mount Type: Loop Bushing and Sleeve Mount with 14mm Sleeve ID
- Upper Mount Type: Stem Mount, 2.625 Inch Stem Length, 1/2"-13 Thread Pitch
- Gas-Charged Shock With 2.25 Inch Body Diameter
- Steel Body Construction
- Rod Diameter: 0.622 Inches
- White Painted Body Color
- Twin-Tube Internal Construction
- Progressive Valving Type
- Includes Protective Boot and Dust Shield
- Fits 2017–2026 4WD F-250 Super Duty with Front Lift Height from 4.0 to 5.0 Inches and Rancho Suspension System
| Brand | Rancho |
| Shock Type | Non-Adjustable |
| Shock Lift Height | 5-Inch Lift |
Description
Exceptional Suspension Performance. The Rancho RS5000X Front Shock for a 4-Inch Lift offers improved handling and ride quality tailored for lifted trucks. It adapts to diverse driving conditions, enhancing vehicle control, comfort, and stability both on and off-road.
Durable Construction and Design. Built with a robust steel body finished in white paint, this shock absorber features a 16mm nitro-carburized piston rod for superior corrosion and wear resistance. Equipped with a 35mm sintered iron piston and a twin-tube design filled with all-weather fluid, it delivers consistent performance across extreme temperatures ranging from -40 to 248°F.
Easy Installation. Designed for moderate ease of installation, this shock requires no drilling and includes all necessary mounting hardware. It fits directly as a replacement unit for compatible vehicles, facilitating a straightforward upgrade process.
Warranty and Application. This shock absorber is backed by a limited lifetime warranty, ensuring long-term reliability. It is engineered specifically for 2017 through 2026 4WD F-250 Super Duty trucks equipped with a 4-inch front lift and Rancho suspension system, fitting front shock mounting heights between 4.0 and 5.0 inches.
Application. Specifically engineered to fit 2017 through 2026 4WD F-250 Super Duty trucks equipped with a 4-inch front lift and Rancho suspension system, accommodating front shock mounting with a raised height between 4.0 and 5.0 inches.
Rancho RS55044
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Rear Shock Absorber
4.7
Customer Reviews (291)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.2L V8 - 17, 18, 19, 20, 21, 22
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
- 6.8L V8 - 23, 24, 25, 26
- 7.3L V8 - 20, 21, 22, 23, 24, 25, 26
