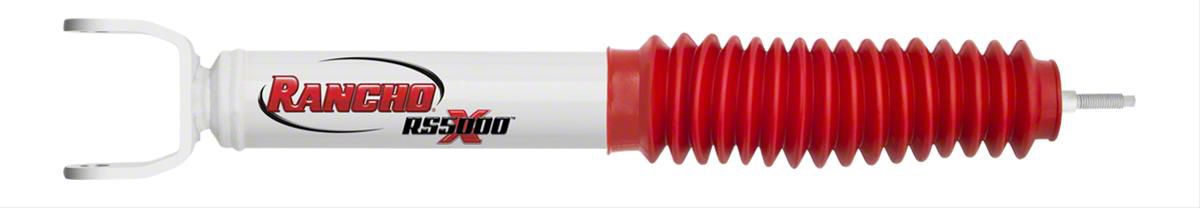

Rancho RS5000X Front Shock for Rancho Suspension Lift Kit (99-06 4WD Silverado 1500)Find parts that fit my vehicle
Item S154249
Our Price
$70.30 each
Military, Medical & First Responders
$3.52 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Featuring a unique, exclusive valving system and advanced compression functionality for superior suspension performance
- Improved overall on- and off-road handling and performance for a smoother ride
- Cross-tuned technology with exclusive rebound valving system and advanced compression phase
- Minimizes rough ride with progressive engagement valving custom-tuned for each vehicle
- Strong and durable 16mm nitro-carburized piston rod resists scuffs and corrosion
- Double-welded loops at stress areas and 35mm sintered iron piston enhance structural integrity
- Polyvinyl protective boot included
- Large twin-tube body filled with all-weather fluid for cooler operation and increased control
- Handles internal temperatures from -40 to 248°F
- Polyurethane rebound bumper and rubber bushings absorb ride harshness
- Fluon-banded piston improves responsiveness to changing road conditions
- Nitrogen gas pressurized to 150 PSI reduces damping performance fade and foaming
- Custom-tuned compression control valve regulates fluid transfer to absorb impacts without disc flutter
- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression
- Application-specific piston delivers heightened control of shock motion due to expanded piston area
- Includes limited lifetime warranty
- Mounting hardware included
- Twin tube, telescopic type design
- Extended length of 20.81 inches
- Shock stroke length of 7.03 inches
- Lower mount type: clevis bracket
- Upper mount type: stem mount – 2.3/8" stem length x 3/8"-16 thread pitch
- Gas charged
- Body diameter of 2.25 inches
- Compressed length of 13.78 inches
- Painted finish in white
- Piston rod made of nitrocarburized steel with 0.622 inch diameter
- Steel body material
- Passive suspension with progressive valving type
- Does not include coil over springs, adjustable damping, ride height adjustment, dust shield, bearing plate, hydraulic lockout, remote reservoir, bump stop, or strut mount insulator
- Shock absorber bore size 1.38 inches
- Shock absorber rod end measuring point located at center of mounting hole
- Shock absorber body end measuring point located at base of stem
- Boot not included
- Fits 99-06 4WD Silverado 1500 except 4 wheel steering, with Rancho suspension system and 4 inch front raised height
| Brand | Rancho |
| Shock Type | Non-Adjustable |
| Shock Lift Height | 0-Inch Lift |
Description
Advanced Suspension Performance. The Rancho Front RS5000X Shock is engineered to enhance both on-road and off-road driving dynamics through a unique valving system and advanced compression technology. It improves vehicle handling, reduces harsh impacts, and provides a smoother ride, making it an essential upgrade for serious suspension improvements.
Construction and Appearance. Crafted from durable steel, this shock features a 16mm nitro-carburized piston rod that resists corrosion and scuffing. Its twin-tube telescopic design incorporates a 35mm sintered iron piston for superior structural integrity. Finished in white paint, the shock is sealed to maintain performance across extreme temperature ranges from -40 to 248°F.
Installation. Installation is straightforward and requires no drilling for vehicles within the specified fitment. Mounting hardware is included, enabling a direct replacement for seamless integration with existing suspension systems.
Warranty. This shock absorber is backed by a limited lifetime warranty, offering confidence and reliability to the purchaser.
Application. Designed specifically for 1999-2006 4WD Chevrolet Silverado 1500 models equipped with Rancho suspension systems and a 4-inch front lift height, excluding models with 4 wheel steering. Intended for vehicles using torsion bar front springs.
Rancho RS55268
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Shock Absorber
4.7
Customer Reviews (291)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Silverado 1500
- 4.3L V6 - 99, 00, 01, 02, 03, 04, 05, 06
- 4.8L V8 - 99, 00, 01, 02, 03, 04, 05, 06
- 5.3L V8 - 99, 00, 01, 02, 03, 04, 05, 06
- 6.0L V8 - 04, 05, 06
