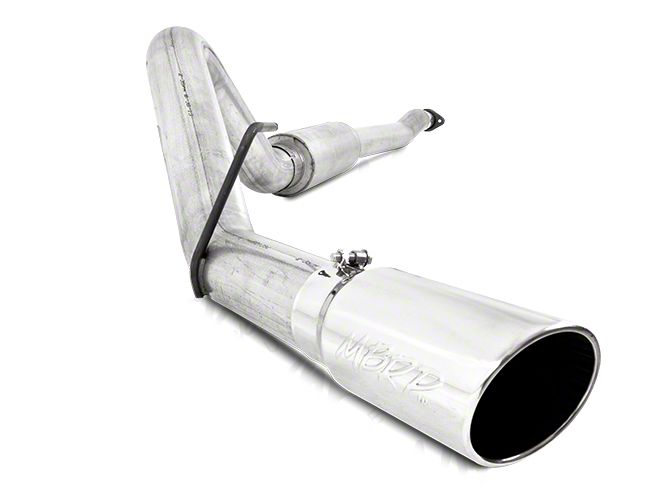

MBRP Armor Lite Single Exhaust System with Polished Tip; Side Exit (11-14 3.5L EcoBoost F-150)

Item T527200
Verify parts fit and get product recommendations.
F-150 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
On Sale

$449.99

FREE Shipping Market Price $517.99 You Save 13% ($68.00) Up to 10% off for Military & First Responders! See Details

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Recommended Install Shops
How It Works
Install Shops are available near Ashburn - 20149

Add Local Shop Installation

Total cost of service $299.00
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Video Review & Installation

      Hey, everybody. I'm Alex with americanmuscle.com. Today I'm bringing you my detailed review and breakdown of MBRP's Installer Series Four-inch Cat-Back Exhaust in the single side exit configuration, fitting all 2011 through 2014 3.5-liter Ecoboost equipped F-150s. Then I'm gonna walk you through the installation, which right off the bat, I will be giving a very easy one out of three wrenches on the difficulty meter, and about a two-hour job. However, I will mention that depending on your cab size that there might be the slightest amount of cutting and I will have more information for you on that later.So you just heard the sound and driving clips and you can be the judge what this sounds like, but having a 2014 Ecoboost that has a similar style exhaust system, I can definitely attest to the fact that this is a modest bump in terms of tonality. It's gonna throw some great noise, and we're gonna be giving this a three out of five on the wake the neighbors or the loud meter. Now the four-inch installer series from MBRP that I have here today should be a great option for any Ecoboost F-150 owner out there that's looking to get into a very affordable system, as well as picking up a modest bump in terms of sound and decibel level, be it in and out of the cabin. Now pricing aside, I'll say it right now, this is only gonna set you back 350 bucks. This should definitely appeal to any F-150 owner out there that's looking to, again, get into a very inexpensive and very quality built product, but something that's gonna give you that nice bump in terms of tonality, be it outside or inside the cabin, but, for something that's not gonna be killing your ears on long drives or making your significant other, friends, family, or kid hate driving around with you in your truck.So something I really like about this system in particular is the fact that this is gonna be a factory style exit or configuration, which, again, means that it's gonna shoot out right where your factory exhaust tip does. Depending on the style that you're after, MBRP's gonna have the entire spectrum covered here. It's gonna range from your factory exit, something that's gonna dump right behind your tire, to a dual to a split rear. Now going back to the sound here, what you heard early on, in my opinion, is definitely gonna be a little bit more on the milder side in comparison to, say, something like a Flowmaster cat-back or maybe even Ford Racings by Borla, which is gonna be a little bit more on the aggressive, a little bit more on the higher pitch side, and that's gonna be due to the muffler construction that they're using between systems. With this system here, this is gonna have a bullet style muffler. As you can see, there's really not gonna be that much packing inside. But, despite not having that material inside of the muffler itself, it's actually very manageable and livable. On cold start, you're gonna be getting a ton of feedback, lots of snap, crackle, and pops, but once it comes up to temperature and you're driving it around in the real world conditions, it's very manageable based on how far you're sticking your foot to the floor. When you're going wide open throttle, everybody around you is gonna know that the aftermarket exhaust is there, but as soon as you take your foot off of it, it's gonna be a very nice, modest rumble, not gonna get something that's going to make you hate driving your truck on a 10 or a 15-hour drive if you had to do so.But something I want to make sure you guys keep in the back of your heads is that their bullet style muffler is gonna be consistent throughout the entire line, but the main differences here between, say, the Installer series and an XP series is gonna be the use of aluminized steel as opposed to a 409 stainless. So if you're living in parts of the country, be it say you're on the coast or you're gonna be seeing winter weather more often than not, I might personally suggest getting into a 409 as it's gonna be that much more durable, but you should expect to be paying about $100 more.Now down to brass tacks, this is gonna be comprised of a four-inch diameter mandrel-bent aluminized steel construction. Again, that bullet style muffler right here is where you're gonna be picking up most, if not all, of that turbo noise and feedback, either going wide open throttle or coming off of diesel [SP], and that's all gonna exit through MBRP's five-inch polished chip, which, I know it may sound like it's on a little bit of the larger side, but on the table here and on the truck, it honestly looks right at home.Now I said it before, this thing is not gonna be doing too much to your wallet. You should expect to be spending 350 bucks, which, at the time of shooting this video, is gonna make this one of the most affordable cat-back systems out there for the Ecoboost. I do want to throw it out there again that you're gonna be getting aluminized steel here, in comparison to the XP's 409, a straight through muffler, which is gonna give you all that sound and tone, be it outside or inside the cabin, which is all again gonna exit through that five-inch polished tip.Now like I said initially, getting this under your truck is not gonna be a difficult feat. You should be looking and expecting a very easy one out of three wrenches on the difficulty meter and about two hours of work. However, I did mention that depending on your cab size, which could be the standard cab or the SuperCab with eight-foot bed, that you might need to do some cutting. Now looking ahead, if you are the standard cab owner or the SuperCab with the eight-foot bed owner, I'd make sure to have a Sawzall and a couple fresh blades handy. Aside from that, a full socket set, a couple jack stands, some WD-40, and a little bit of patience will get this on in no time. Now we're gonna begin by taking your factory system off. Well, that WD-40 is gonna come in handy. If you don't have that, some blaster will work just fine. You're gonna want to soak liberally all your hangers and insulators, as if you've never removed your factory exhaust, chances are it's gonna be pretty stubborn coming out. Now first up, you're gonna wanna loosen the flange right behind your Y-pipe and then loosen up the clamp that's gonna be located in front of the muffler. After that, you can remove your hangers from the rubber insulators and then remove the exhaust from your vehicle. Now getting your new system on, you're gonna start with your front pipe to the existing flange using the supplied hardware, and then attach the muffler, along with inserting the muffler hanger into the existing rubber insulator. Now once that's completed, slide the three-inch clamp over the extension or front pipe. Once you're done there, loosely install the over axle pipe that's gonna connect it to the muffler outlet using a three-inch clamp. Now once that's completed, your damned and you're done and it's merely gonna be putting your exhaust tip on the existing pipe, locking it down. And then I would just suggest running over all of your connections, making sure everything is tight, and then I would definitely make sure that the exhaust is not gonna be coming into contact with anything like, say, a brake or a fuel line or your spare tire, just to be on the safe side.All right, guys, so just to wrap things up here, some final thoughts. If you're the F-150 owner that's looking to get into one of the most affordable cat-backs at time of shooting this video, something that's not gonna hurt your wallet, that's gonna wake up your truck moderately and bring a smile to your face whenever you're stomping on the gas, I would definitely suggest checking this out for your rig. I'm Alex, and that's my review for MBRP's four-inch Installer Series Cat-Back in the single side exit configuration, fitting all 2011 through 2014 3.5-liter equipped Ecoboost F-150s, which can be found right here at americanmuscle.com.

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • Mellow Exhaust Note
      • Improves Exhaust Flow for More Power
      • 4 in. Mandrel-Bent Aluminized Steel Tubing
      • 5 in.  Polished Stainless Steel Tip
      • Exits Behind Rear Passenger Tire
      • Bolt-On Installation; Some Trimming May Be Required
      • Fits All 2011-2014 3.5L EcoBoost F-150s

      Description

      Mellow tones. The Installer Series 4 in. Cat-Back Exhaust improves exhaust flow, giving your truck a mellow tone. This way, your 2011-2014 Ford F-150 will give you a satisfied purr when you turn it over and a powerful growl when you rev the engine, a massive improvement on what the stock exhaust offers.

      Better Performance. Without the restrictions that stock exhaust has, the MBRP Installer Series 4 in. Cat-Back Exhaust is free-flowing. This not only helps the growling sound of the truck but makes your truck more efficient and powerful as well.

      Aluminized Steel Construction. Manufactured in the United States, this exhaust is made of aluminized steel, making it lightweight and durable. This is in made in the form of a 4” diameter tubing with a 5” slanted, stainless steel exhaust tip. The exhaust pipe ends and exits behind your rear passenger tire. You will also find the MBRP logo etched into the tip of the exhaust for a design custom to their brand.

      Bolt-On Installation. Made to be a direct upgrade for your Ford F-150, the MBRP Installer Series 4 in. exhaust is made to bolt directly onto your Ford-150 with the help of OEM hangers. You might need to trim these sets, based on the size of your cab and bed.

      Application.This MBRP Installer Series Single Side Exit Cat-back Exhaust system specifically designed to fit all of the cab and bed sizes available for 2011 to 2014 Ford F-150s equipped with the 3.5L V6 EcoBoost engine.

      Shop All Truck Parts And Accessories

      Shop All Truck Exhaust

      Fitment:

      Details

      MBRP S5248AL

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Front Pipe
      • (1) Extension Pipe
      • (1) Muffler
      • (1) Tail Pipe
      • (1) 4" Hanger Clamp
      • (2) 4" Clamp
      • (2) 3/8" x 2 1/2" Hex Bolt
      • (4) 3/8" Flat Washer
      • (2) 3/8" Lock Washer
      • (2) 3/8" Hex Nut
      • (1) Exhaust Tip

      4.6

      Customer Reviews (500+)

        Questions & Answers

        10 More Questions

        Will It Fit My F-150

        • 3.5L V6 EcoBoost - 11, 12, 13, 14
