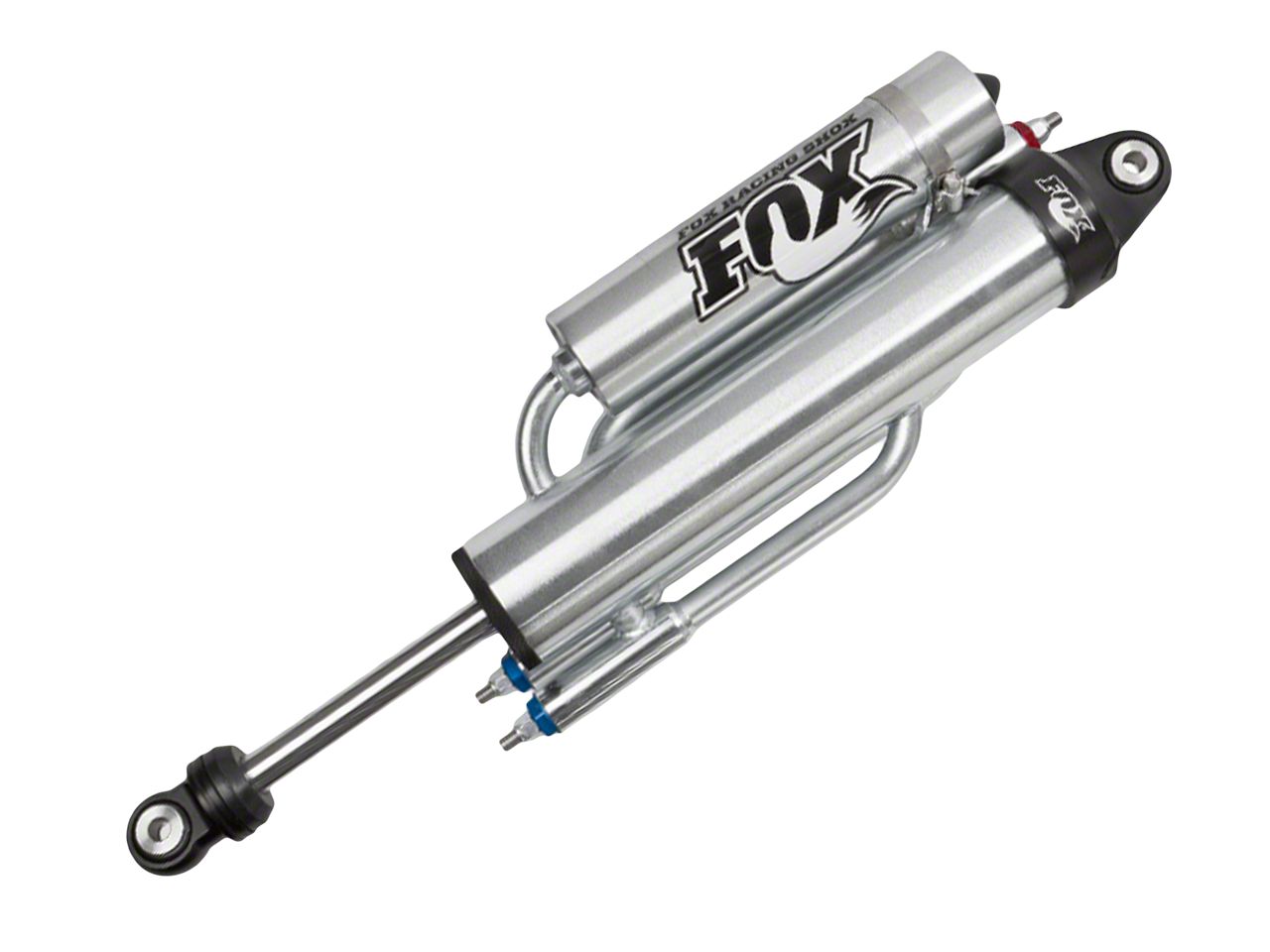

FOX Factory Race Series 3.0 Rear Bypass Reservoir Shock for 0 to 1-Inch Lift (10-14 F-150 Raptor)

Item T527521
Call a F150 Enthusiast at 1-888-706-1096
M-F 8:30A-11P, Sat-Sun 8:30A-9P
Market Price $2,644.94 You Save 13% ($344.99)
Our Price

$2,299.95 (pair)

FREE Shipping

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

      Product Information

      Features, Description, Specs & Installation


      • Factory Series Bypass Reservoir
      • Designed for 0-1" of Suspension Lift
      • Adjustable Bypass
      • Adds 60% More Damping Area
      • 3.0" Shock Body Diameter
      • 7/8" 17-4 H900 Stainless Steel Shaft
      • Sold As a Pair of Rear Shocks
      • Fits All 2010-2014 SVT Raptors


      Superior Ride Quality. Take on the terrain with your Ford Raptor by getting the FOX 3.0 Factory Series Rear Bypass Reservoir Shocks for 0-1" of suspension lift. This Factory Series Reservoir features race developed high flow pistons, an external oil reservoir, and add 60% more damping area over the factory FOX SVT Shocks to provide increased ride quality as well as the stability and predictability you need for optimum performance whether you're on or off road.

      External Reservoir. The FOX Reservoir comes equipped with an external reservoir to keep oil and high pressure nitrogen separate. The reservoir is filled with JM92 advanced suspension fluid to ensure performance in a wide range of temperatures and climates.

      This rear shock features one Rebound and two Compression adjusters that allows you to adjust the external bypass zones for complete control regardless of the terrain. It will provide a plush predictable ride for normal off road conditions and will have the ability to increase the dampening force for intense conditions.

      Durable Construction. This Raptor Reservoir features a smooth bore and honed 3.0" seamless alloy body construction for superior durability. It is completed in a zinc plating for a long lasting finish and features black anodized CNC-machined 6061-T6 billet aluminum for additional corrosion resistance. This shock is fitted with a 7/8" 17-4 H900 stainless steel hard-chrome plated shafts to handle anything you throw at your Raptor during any on or off road expedition.

      Bolt-On Installation. FOX designed these Reservoirs to be a bolt-on install that doesn't require any upgrades or modifications to your Raptor, as it is a direct replacement for the factory FOX SVT Shocks.

      Application. This pair of Rear FOX 3.0 Factory Series Bypass Reservoirs is specifically designed to fit on all 2010 to 2014 F-150 SVT Raptors models equipped with 0-1" of suspension lift.

      Shop All Truck Parts And Accessories

      Shop All Truck Shocks And Struts

      Shop All Truck Suspension

      Fitment: 2010 2011 2012 2013 2014 Details

      FOX 883-02-047

      CA Residents: WARNING: Cancer and Reproductive Harm -

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (2) Bypass Reservoir

      Tech Specs

      Bypass Reservoir Specifications.
      • Adjustments: 2 Compression Bypass Adjusters & 1 Rebound Bypass Adjusters
      • Bearing: PTFE-lined, Heat-Treated, Alloy Steel Spherical
      • Body: 3.0 in. Smooth Bore & Honed Seamless Alloy
      • Body Plating: Zinc-Plated
      • Components: Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum
      • External Reservoir: 2.5 in. Smooth Bore & Honed Seamless Alloy
      • Oil: JM92 Advanced Suspension Fluid
      • Piston: 6061-T6 Hard-Anodized, High Flow Aluminum
      • Shaft: 7/8 in. 17-4 H900 Stainless Steel Hard-Chrome Plated

      Customer Reviews (4)

        Reviews of FOX Suspension products have an average rating of 4.8 out of 5

          Questions & Answers

          10 More Questions

          Will It Fit My F-150

          • 5.4L V8 Raptor - 10
          • 6.2L V8 Raptor - 10, 11, 12, 13, 14
