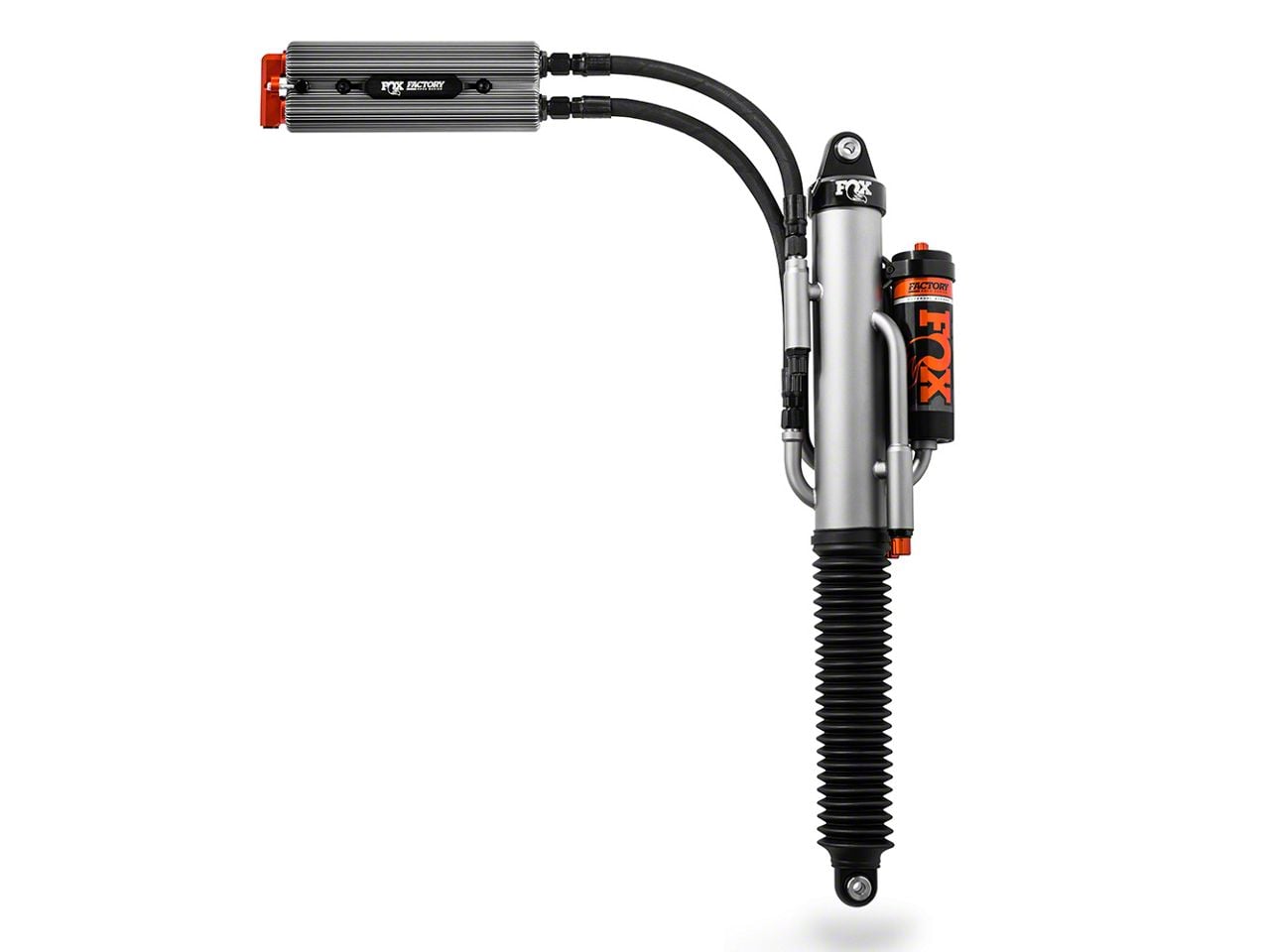

FOX F-150 Factory Race Series 3.0 Rear External Bypass Shocks w/ QAB Adjusters for 0-1 in. Lift 883-09-141 (17-18 F-150 Raptor)

Product Information

Features, Description, Q&A, Specs & Installation

Features & Specs

Inspired by Off-Road Racing
External Bypass Position-Sensitive Damping
Quick Adjust Bypass (QAB)
External Cooling System (ECS2)
Delivers Next-Level Off-Road Performance Without Sacrificing Daily Ride Quality
12.27 Inches of Travel
3.0-Inch Steel Body with Proprietary Coating for Enhanced Durability
Hard Anodized, Impact-Extruded Aluminum Finned Remote Reservoir with Recirculating Reservoir Bridge
Components Made from Hard Anodized CNC-Machined 6061-T6 Billet Aluminum
7/8-Inch 17-4 H900 Hard Chrome-Plated Stainless Steel Shaft
Piston Made of Hard Anodized 6061-T6 Billet Aluminum with High-Flow Race Design
Valving Specifically Tuned for 2017-2018 Ford F-150 Raptor to Maximize Performance and Comfort
31.15 Inches Extended Length
18.88 Inches Compressed Length
Top and Bottom Mounts Use Eyelets for Direct Bolt-On Fitment
Fits 2017-2018 Ford F-150 Raptor with 0 to 1-Inch Lift

Brand

FOX

Shock Type

Adjustable

Shock Lift Height

0 to 1-Inch Lift

Description

Advanced Off-Road Suspension. The FOX Factory Race Series 3.0 Rear External Bypass Shocks with QAB Adjusters for 0 to 1-Inch Lift upgrade the rear suspension system by integrating race-proven technology for superior damping performance and heat management. Designed to handle demanding off-road conditions, these shocks also ensure everyday drivability without compromise.

Construction and Appearance. Featuring a 3.0-inch steel body with a proprietary durable coating, these shocks include a hard anodized, impact-extruded aluminum remote reservoir equipped with cooling fins and a recirculating reservoir bridge for improved heat dissipation. Critical components are crafted from CNC-machined 6061-T6 billet aluminum, and the shaft is constructed of 7/8-inch diameter 17-4 H900 hard chrome-plated stainless steel for long-lasting wear resistance and strength.

Installation. Installation is moderate in difficulty and requires no drilling, utilizing standard eyelet mounts at both top and bottom for a direct bolt-on replacement to the rear suspension.

Application. Specifically engineered for the 2017-2018 Ford F-150 Raptor equipped with a 0 to 1-inch lift, these shocks provide a precise fit and optimized performance without any modifications.

Shop All Truck Parts And Accessories

Shop All Truck Shocks And Struts

Shop All Truck Suspension

FOX 883-09-141
