Edelbrock E-Force Stage 1 Street Supercharger Kit (04-08 2WD 5.4L F-150)

AmericanTrucks no longer carries the Edelbrock E-Force Stage 1 Street Supercharger Kit (04-08 2WD 5.4L F-150). Please check out 2004-2008 F-150 Supercharger Kits & Accessories for an updated selection.

Features & Details

  • Reliable, Bolt-on Supercharger Kit for the Ford F-150
  • Greatly Increases Horsepower and Torque
  • Ideal for Off-Roading or Towing
  • Impressive Gains in Horsepower and Torque
  • Utilizes Eaton’s Gen VI TVS Supercharger Rotors
  • 14-inch Intake Runners Maximize Low-End Torque
  • 3.25-inch Supercharger Pulley
  • Emissions Legal in 50 States (When Used with the Correct Edelbrock Tune)
  • CARB E.O.# D-215-89 (With Edelbrock's Tune)
  • Fits All 2004-2008 Ford F-150 2WD 5.4L Models
Supercharged Street Power. Forced induction set ups are normally reserved for those looking to up the horsepower on their car for more fun on the street and the track, however, for Ford F-150 owners, a supercharger can help with towing and off-road driving. For anyone looking for a good, reliable setup, the Edelbrock E-Force Stage 1 Street Supercharger Kit can do the trick. This fully bolt-on kit is emissions-legal and will greatly increase the horsepower and torque ratings of up to 478 and 504, respectively.

Eaton Driven. The Edelbrock E-Force Stage 1 Supercharger Kit utilizes Eaton’s Gen VI TVS supercharger rotors for quiet and reliable operation. The 14-inch intake runners assist in achieving the maximum low-end torque possible, while the included 3.25-inch pulley helps with maintaining boost pressure levels.

Street Legal. This kit is street legal in California with a CARB EO# of D-215-89, when being used with the correct Edelbrock tune.

Hard Installation. While the Edelbrock E-Force Stage 1 Street Supercharger Kit is a bolt-on affair, professional installation is recommended as the process can be difficult and take up to 6 hours.

Application. The Edelbrock E-Force Stage 1 Street Supercharger Kit fits 2004-2008 Ford F-150 with the 5.4-liter V8 engine.

Fitment: 2004 2005 2006 2007 2008 Details

CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

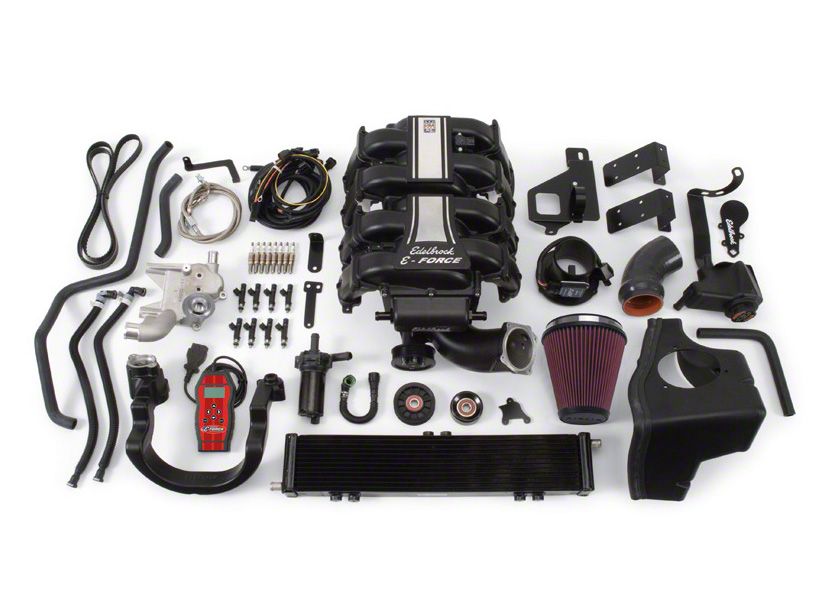

What's in the Box
  • Supercharger Manifold Assembly with Eaton TVS Rotors
  • Cold Air Intake with Conical Filter & 95mm MAFS
  • (1) 3.25" Supercharger Pulley
  • Steel Idler Pulleys with Heavy-Duty High-Speed Bearings
  • Cast Aluminum Alternator/Idler Bracket
  • Goodyear Gatorback Serpentine Belt
  • (1) Steel Belt Tensioner Brace
  • Cast Aluminum Water Crossover
  • 110 sq./in Intercooler with Custom-Molded Hoses
  • Low-Temperature Dual-Core Heat Exchanger (For intercooler)
  • Intercooler Recovery Tank and Electric Intercooler Water Pump
  • Extruded Aluminum Fuel Rails with -6AN Lines
  • 41 lb./hr. Fuel Injectors
  • HTO Spark Plugs
Installation Info
Will it fit my F-150?

    Customer Photos

      Questions & Answers (8)

      5 Top Rated Questions

      I need to program the computer after install the supercharger in my ford f150 2005?

      • You will need a custom tune or a dyno tune after the installation of this kit yes.

      Helpful (0)

      So it says only 2wd, could it work for the 4wd trucks if you just didn't use the 4wd while driving hard?

      • The kit is only made to accommodate 2WD models. The kit is not made to properly distribute power to all 4 wheels. So we would not recommend installing your 4WD model.

      Helpful (0)

      Is there anything forced induction for the 2004 4.6 rwd F-150?

      • Unfortunately a supercharger is not offered for the 04-08 F-150 4.6L at this time.

      Helpful (0)

      How many lbs of boost does it run?

      • This kit is designed to create 6psi of boost.

      Helpful (0)

      Estimated horsepower?

      • This full bolt-on kit is emissions-legal and will greatly increase the horsepower and torque ratings of up to 478 and 504, respectively.

      Helpful (0)
      Post Your Question
      3 More Questions
      why can't it work on 4wd models mine is a 07 xlt super crew 5.4 1 answer
      What's preventing it from going on the fx4? 1 answer
      could this possibly be put on a 4.6L v8 1 answer
