Installation Time
(approx) 4 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
BDS 5-Inch Suspension Lift Kit with 5-Inch Rear Lift Blocks and FOX 2.5 Performance Elite Shocks (20-26 4WD Silverado 3500 HD w/o Factory Overload Springs)Find parts that fit my vehicle
Item SHS50723
Our Price
$5,222.55 kit
Military, Medical & First Responders
$261.13 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- Take Your 2020-2026 Chevy Silverado And GMC Sierra 2500HD/3500HD 4WD To The Next Level With A 5-Inch Front And 4.5-Inch Rear Lift Kit.
- No Torsion Bar Drop System Where The Torsion Bars Mount Directly To The Top Of The Lower A-Arm.
- Improves Stance, Performance, And Capability With Clearance For Up To 37" Tires.
- High-Clearance Design For Ground Clearance, Strength, And Offroad Protection.
- Torsion Bar Relocation Brackets And High-Arched 1/4-Inch Thick Steel Crossmembers Included.
- Multipoint Differential Relocation Brackets And Heavy Duty Skid Plates For Offroad Protection.
- CNC-Machined Ductile Iron Steering Knuckles Correct Steering Geometry At New Ride Height And Maintain ESC Compliance.
- Includes Sway Bar Drops, Stainless Steel Brake Lines, And Necessary Hardware.
- Rear Replacement Lift Blocks And U-Bolts To Lift And Level The Rear Stance, With Options For Overload And Non-Overload Springs.
- Brake Line And ABS Line Relocation Brackets Maintain Use Of Factory Brake Lines.
- Includes FOX 2.5 Performance Elite Shocks Featuring Remote Reservoirs And DSC Compression Adjusters For Precision Tuning And Superior Cooling.
- Robust Front Skid Plate System Enhances Offroad Protection.
- Recommended Tires Up To 37 x 12.5 With Specific Wheel Size And Backspacing, Trimming May Be Required.
- Fits 20-26 4WD Silverado 3500 HD Without Factory Overload Springs
| Brand | BDS |
| Lift Height | 5.00 Inch |
| Lift Kit Type | Spacer Lift |
| Lift Kit Max Tire Size | 37 Inch |
| Brand of Shocks | Fox |
| Rear Lift Type | Spacer |
| Shock Style | Non-Reservoir |
Description
PREMIUM LIFT SOLUTION. The BDS 5-Inch Suspension Lift Kit with 5-Inch Rear Lift Blocks and FOX 2.5 Performance Elite Shocks delivers enhanced ground clearance and improved off-road capability while preserving on-road handling for the 2020–2026 Chevy Silverado and GMC Sierra 2500HD/3500HD 4WD. This comprehensive system elevates the vehicle stance, allows for larger tires, and optimizes suspension geometry for greater performance versatility.
Construction and Appearance. Built with heavy-duty 1/4-inch thick steel crossmembers, CNC-machined ductile iron steering knuckles, and multipoint differential relocation brackets, the kit ensures durability and added protection. The FOX 2.5 Performance Elite shocks feature anodized black aluminum remote reservoirs and are designed for superior cooling and adjustable damping, enhancing both functionality and aesthetics.
Installation. Installation is challenging and requires specialized tools including a torsion bar unloading tool and cutting implements. Frame bracket modification and torsion bar relocation are necessary to properly mount components and achieve the full 5-inch front lift height and 4.5-inch rear lift.
Warranty. This lift kit includes a Factory Protection Plus drivetrain warranty for added peace of mind.
Application. Designed specifically to fit the 2020-2026 4WD Silverado 3500 HD models without factory overload springs, this lift kit is not compatible with AT4X or ZR2 variants due to differing lower control arm profiles.
BDS BDS1822FPE
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box

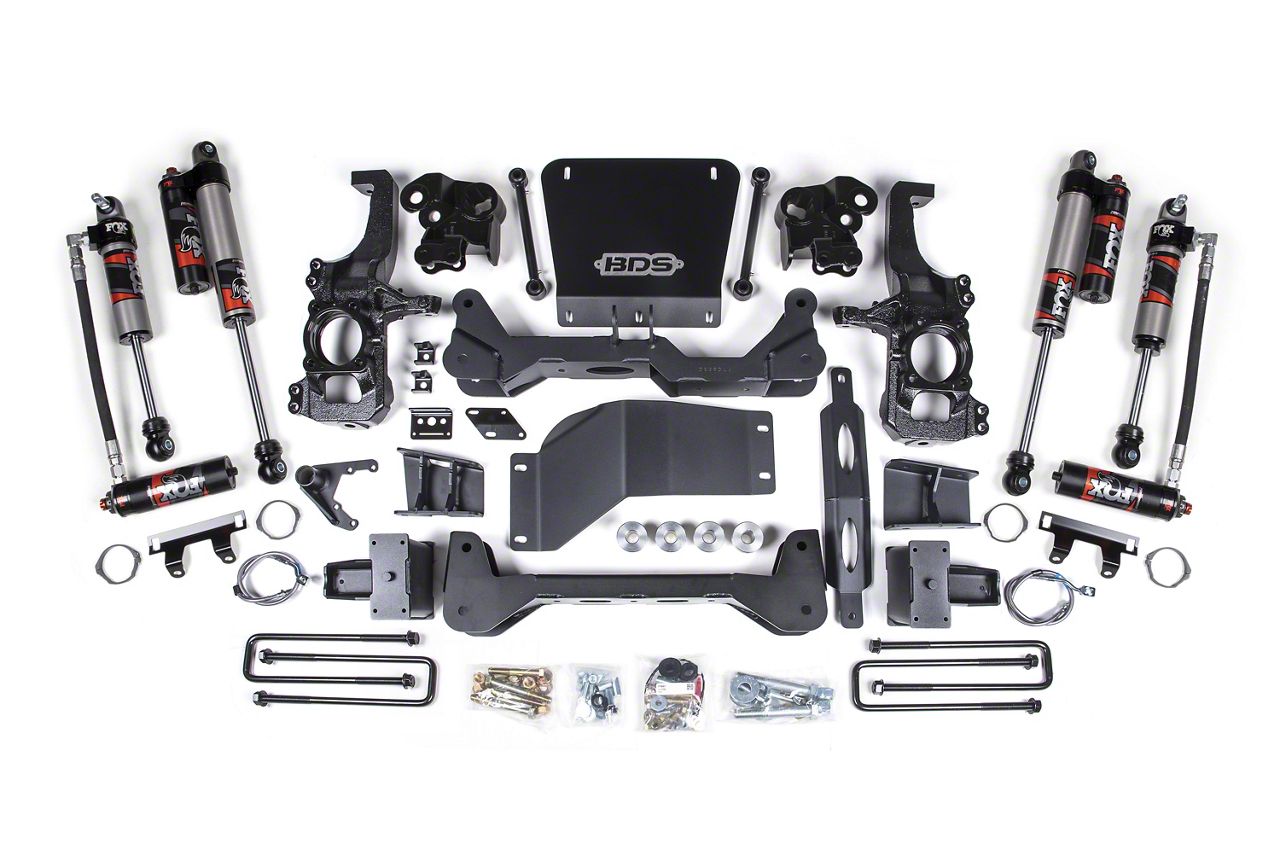

- (1) Suspension Lift Kit with 5-Inch Rear Lift Blocks and FOX 2.5 Performance Elite Shocks
Tech Guides:
- Lift Kit vs Leveling Kit: Which Upgrade Is Right for Your Truck?
- How Much Lift Does My Truck Need? Picking the Right Lift Height
- Pros and Cons of Lifting Your Truck: What Every Owner Should Know
- Towing Suspension Upgrades: Suspension Components to Improve Towing Capability
- Lift Kits - How Adding Ground Clearance Makes Trucks More Capable Off-Road
- Do Lifted Trucks Use More Fuel? MPG Loss by Lift Height, Tire Size, and How to Save
- What Is Rake? How Leveling Your Truck Improves Appearance
- FAQ What Are The Best Suspension Systems? How Suspension Systems Work
- Off-Road Suspension 101: What To Know Before You Go
- Lift Kits vs. Leveling Kits: What’s the Difference?
- 8 Most Popular Rides to Upgrade Suspensions in 2021
4.0
Customer Reviews (2)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Silverado 3500
- 6.6L V8 - 20, 21, 22, 23, 24, 25, 26
- 6.6L V8 Duramax - 20, 21, 22, 23, 24, 25, 26
