Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

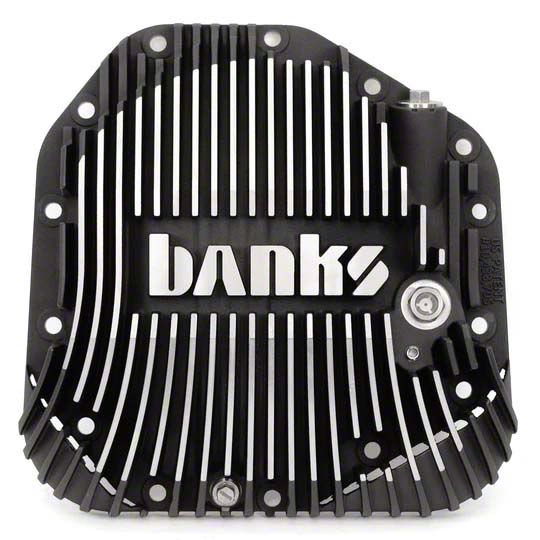

Banks Power Dana M275 Ram-Air Differential Cover; Satin Black Machined (17-26 6.7L Powerstroke F-250 Super Duty w/o High Output Engine)Find parts that fit my vehicle
Item SD47237
Our Price
$395.00 each
Military, Medical & First Responders
$19.75 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Extends Lubrication Life By Keeping Fluid Cooler With Superior Fluid And Aerodynamics
- Cools Five Times Better Than High-Capacity Aftermarket Covers In On-Road Towing Tests
- Patented Forced-Air Cooling Design With Ram-Air Scoops That Force Air Through Heat Radiation Fins
- FlowThru Fins Transfer Heat Through The Cover To The Exterior
- High Velocity Air Overcomes Dead Air Zone Behind Differential
- Reduces Fluid Aeration With Ring Gear Raceway Guiding Fluid To Ring And Pinion Interface
- Fluid Directed To Axle Tubes And Bearings For Optimal Lubrication
- View Fluid Level Through Sight Glass For Easier Maintenance
- Includes Angled Fill Port And Magnetic Drain Plug
- Retains Stock Fluid Quantity With Increased Distance Between Service Intervals
- Temp Sensor Port Included For Monitoring
- O-Ring Seal Eliminates Need For Messy RTV
- Maintains Stock Ground Clearance With Breakaway Ram-Air Scoops To Prevent Damage
- Die-Cast Aluminum Construction Using A380 Aircraft Aluminum For Strength And Precise Fit
- 23 External Radiator Fins For Class-Leading Heat Rejection
- 304 Stainless Steel Hex Flanged Mounting Bolts
- Fill Plug At A 20° Angle Simplifies Oil Changes
- Sight-Glass Comes With Contrast Screen And Viton O-Ring Seal
- Recessed Magnetic Drain Plug Simplifies Oil Changes
- 1/8 Inch NPT Sensor Port For Temp Monitoring
- Radiused Ports Provide Smoother Fluid Flow
- Internal Heat Absorption Fins Transfer Heat To External Fins Without Disrupting Fluid Flow
- Simple Fluid Change Without Removing Cover
- Lubricant Raceway Directs Flow Exactly Where Needed
- Ram-Air Scoops Feature Breakaway Points To Prevent Damage
- Weight Eleven Point Eight Pounds
- Dimensions Thirteen Point Seven Inches By Thirteen Point Five Inches By Three Point Four Inches
- Uses Fourteen Stainless Steel M10 Flange Hex Bolts
- Uses A380 Aluminum Diecast With CNC Machined Surfaces
- Compatible With (17-26 6.7L Powerstroke F-250 Super Duty W/O High Output Engine). Does Not Fit F-350 DRW Or 2023-24 High-Output Models.
Description
Performance Differential Cover. The Banks Power Dana M275 Ram-Air Differential Cover; Satin Black Machined is engineered to keep your differential fluid cooler through superior fluid dynamics and a patented forced-air cooling system. This design extends differential lubrication life, improves heat rejection, and helps maintain fuel economy—ideal for vehicles under heavy towing or sustained high-power conditions.
Construction and Appearance. Made from robust A380 aircraft-grade die-cast aluminum with precision CNC-machined surfaces, this differential cover features 23 external radiator fins for enhanced heat dissipation. It includes durable 304 stainless steel hardware and a satin black machined finish that combines aesthetics with corrosion resistance.
Installation. Installation is straightforward and can be completed in about one hour. The differential cover is a direct-fit replacement requiring no drilling or modifications, ensuring a clean, precise fit.
Application. Fits 2017-2026 6.7L Powerstroke F-250 Super Duty without High Output Engine.
Banks Power 19280
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Differential Cover
- Mounting Hardware
- Instructional Manual
4.8
Reviews of Banks Power Drivetrain Products (9)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My F-250
- 6.7L V8 Power-Stroke - 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
